 Post subject: Focal Home Audio Custom Speaker Setup
PostPosted: Thu Aug 28, 2014 2:51 pm
SOFA-KING
User avatar

Joined: Sat Nov 29, 2008 11:54 am
Posts: 5348
Location: Graz, Austria
Thanks to the recent sales of some mopar parts and phoenix gear i had no use for anymore i can finally start to build the home speaker setup i always wanted. Klipsch speakers would have been nice, but due to space requirements i didn´t pull the trigger buying a set.

The last year i was collecting all the speakers for my built. While doing that i used some speakers i refreshed with some cheapo drivers as my temporary setup.

Attachment:
DSC03895.JPG [ 112.29 KiB | Viewed 3879 times ]

Thanks to kg1961 i found the last two missing subs for a very good price in very good condition and now i´ve got everything together for my Stereo Speaker Setup plus a nice Overkill Subwoofer :mrgreen:

Attachment:
DSC03897.JPG [ 125.69 KiB | Viewed 3879 times ]


Tomorrow, right after shipping my last two Nickels, i´ll be off to my woodshop and get all the stuff i need to do the built. More to come once i got some stuff done...



_________________
Music is silver, PHOENIX is GOLD
Offline
 Profile

 Post subject: Re: Focal Home Audio Custom Speaker Setup
PostPosted: Thu Sep 11, 2014 7:46 pm
Got wood?
User avatar

Joined: Sun Apr 06, 2008 10:31 pm
Posts: 9047
Location: Calgary
Hmm I miss the subs alot..glad I could help



_________________
most of my gear is gone
2019 Vw jetta sel
Offline
 Profile

 Post subject: Re: Focal Home Audio Custom Speaker Setup
PostPosted: Sat Feb 11, 2017 5:44 pm
SOFA-KING
User avatar

Joined: Sat Nov 29, 2008 11:54 am
Posts: 5348
Location: Graz, Austria
I´ve done a little bit to my home audio corner. Whenever i had time and all other things arround the house where done for a moment i worked on it.

The first thing i build and finished was the subwoofer enclosure to finally replace the cyclones and the enclosure i used to have in the BMW with something more proper for home audio. Using term pro going for a sealed enclosure and a low pass frequeny of 80Hz the math came up with an 225 litres enclosure. I build the box out of spruce wood plates that i glued together with a total thickness of 40mm. Some round stiffening braces inside the housing keep the enclosere from balooning up when the sub is doing it´s job.
After the enclosure was finished i colored it with mahagoni wood stain.

Attachment:
2015-12-14 19.10.08.jpg
2015-12-14 19.10.08.jpg [ 470.69 KiB | Viewed 3371 times ]

Attachment:
2015-12-14 19.36.52.jpg
2015-12-14 19.36.52.jpg [ 488.82 KiB | Viewed 3371 times ]

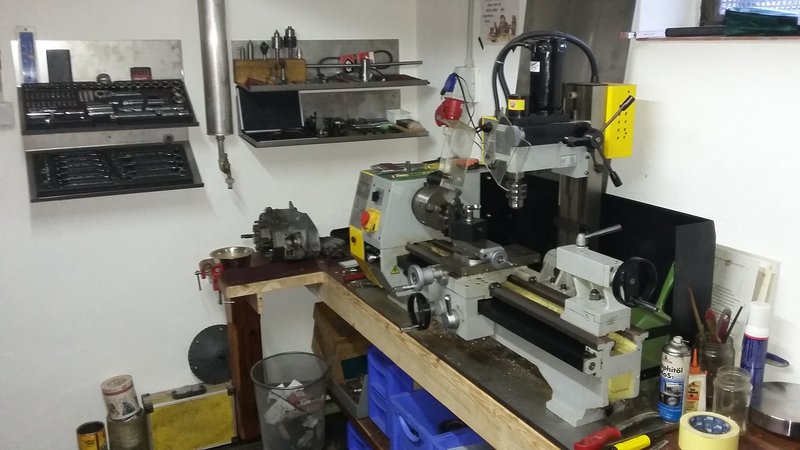

The next parts i needed where the spikes i wanted to place the enclosure on. Since i got my own lathe machine at home now, they were an easy project.

Attachment:
20161223_151654.jpg [ 401.35 KiB | Viewed 3371 times ]

Attachment:
2016-01-10 23.25.17.jpg
2016-01-10 23.25.17.jpg [ 445.76 KiB | Viewed 3371 times ]


I also build the crossover myself...

Attachment:
2016-01-20 22.38.40.jpg
2016-01-20 22.38.40.jpg [ 468.64 KiB | Viewed 3371 times ]


And this is what the monster looks like sitting in the living room. 8)

Attachment:
2016-01-12 23.53.06.jpg
2016-01-12 23.53.06.jpg [ 431.79 KiB | Viewed 3371 times ]


The sub is driven by a nice oldschool NAD amplifier with a total power output of 1,6kW into 4 Ohms.



_________________
Music is silver, PHOENIX is GOLD
Offline
 Profile

 Post subject: Re: Focal Home Audio Custom Speaker Setup
PostPosted: Sun Feb 12, 2017 2:29 pm
the Floor Sweeping Hack with Golden Ears

Joined: Fri Dec 19, 2008 9:53 pm
Posts: 14619
is that the 16"? And I had to do the math on that enclosure size am I doing the math right that it comes out to just under 8 cubic ft = 225 ltrs?



_________________
what else can I say I am a grumpy asshole most of the time.
Offline
 Profile

 Post subject: Re: Focal Home Audio Custom Speaker Setup
PostPosted: Sun Feb 12, 2017 2:50 pm
SOFA-KING
User avatar

Joined: Sat Nov 29, 2008 11:54 am
Posts: 5348
Location: Graz, Austria
ttocs wrote:
is that the 16"? And I had to do the math on that enclosure size am I doing the math right that it comes out to just under 8 cubic ft = 225 ltrs?


Yes that´s the 16er. And yes the enclosures internal volume is 225litres.



_________________
Music is silver, PHOENIX is GOLD
Offline
 Profile

 Post subject: Re: Focal Home Audio Custom Speaker Setup
PostPosted: Sun Feb 12, 2017 3:39 pm
the Floor Sweeping Hack with Golden Ears

Joined: Fri Dec 19, 2008 9:53 pm
Posts: 14619
I have been eyeing that as the bottom end of the stang if I could fit it but needless to say a box that big would not be an option. Just when you thought a cyclone box was big lol. Hows it sound?



_________________
what else can I say I am a grumpy asshole most of the time.
Offline
 Profile

 Post subject: Re: Focal Home Audio Custom Speaker Setup
PostPosted: Mon Feb 13, 2017 3:05 am
SOFA-KING
User avatar

Joined: Sat Nov 29, 2008 11:54 am
Posts: 5348
Location: Graz, Austria
Since i still need to finish the other two Speakers all the sub does is supporting the TV when i´m watching movies.
