Project 5.0

Post by **Rold Gold** » Tue Aug 04, 2009 8:22 am

Cutting out the mounting plates for the 6.5's today....... Should be in in the next couple days. Gotta figure out how to mount the tweet inside the MACH460 tweeter housing still.....

Just gonna run them off the MACH amps for now until I get the double-din dash bezel. We'll see how it sounds........

Post by **ttocs** » Tue Aug 04, 2009 1:41 pm

sorry to tell you that you will not be able to run your speakers off of the mach amps. The woofers are an 8ohm low range woofer and th factory amps will be very un happy with a 4 ohm full range driver.

how did you wire the deck in? Did you bypass the amps at all? There is a super easy way to run your speaker off of your deck if you hit the bypass hrns up next to the radio.

You can make a mounting baffle for your tweets fairly easily with some abs plastic and a dremel. Just trace the shape of the tweeter on the plastic and trim it out and put your hole in the middle.

I am taking my stang into the tuner again tomorrow as it was having over-heating issues last week. I put the stock pulleys back on it and will be selling the underdrive pulleys if you want to buy some. I am going to be putting the side exhaust on as well, can't wait to hear it with the new heads and cam as it almost lopes now.

Post by **Bfowler** » Tue Aug 04, 2009 4:08 pm

yeah, from my bmw experience...i wouldn't run the rsd's off the mach. it has built in crossovers that are dependent on the ohm of the speaker and the rsd's will be different then stock.

it will make sound....but no telling what could happen to the rsd's

Post by **Rold Gold** » Tue Aug 04, 2009 6:23 pm

ttocs wrote: You can make a mounting baffle for your tweets fairly easily with some abs plastic and a dremel. Just trace the shape of the tweeter on the plastic and trim it out and put your hole in the middle.

Way ahead of ya bro......... Did that lastnight as a matter of fact.

...........................

deck power it is then.................But that'll have to wait until the weekend as I have no more time at the moment..... I was gonna look that up tonight before I installed them to make sure it would work......I know that some factory amps work fine with a speaker swap.....Thanks for the info ttocs.

About the pulleys.......PM me a pic and a price shipped to 97222.......very interested in those.

Post by **Rold Gold** » Thu Aug 27, 2009 2:28 pm

**UPDATE**
I scored a bezel off ebay for $26 so the DVD install is upcomming pretty soon...............

Post by **ttocs** » Thu Aug 27, 2009 2:58 pm

you will need the the shifter bezel as well.

Post by **Rold Gold** » Thu Aug 27, 2009 8:06 pm

I still haven't grabbed that piece yet........I might have a line on one at the yard as a matter of fact...... I figured I could get a good start though for sure. It ain't comming out easy if ya get my drift. I'm gonna make a cage and bolt it in nice and snug. Still gotta run my rca's so it'll all get done at the same time.

Post by **Rold Gold** » Mon Sep 07, 2009 2:50 pm

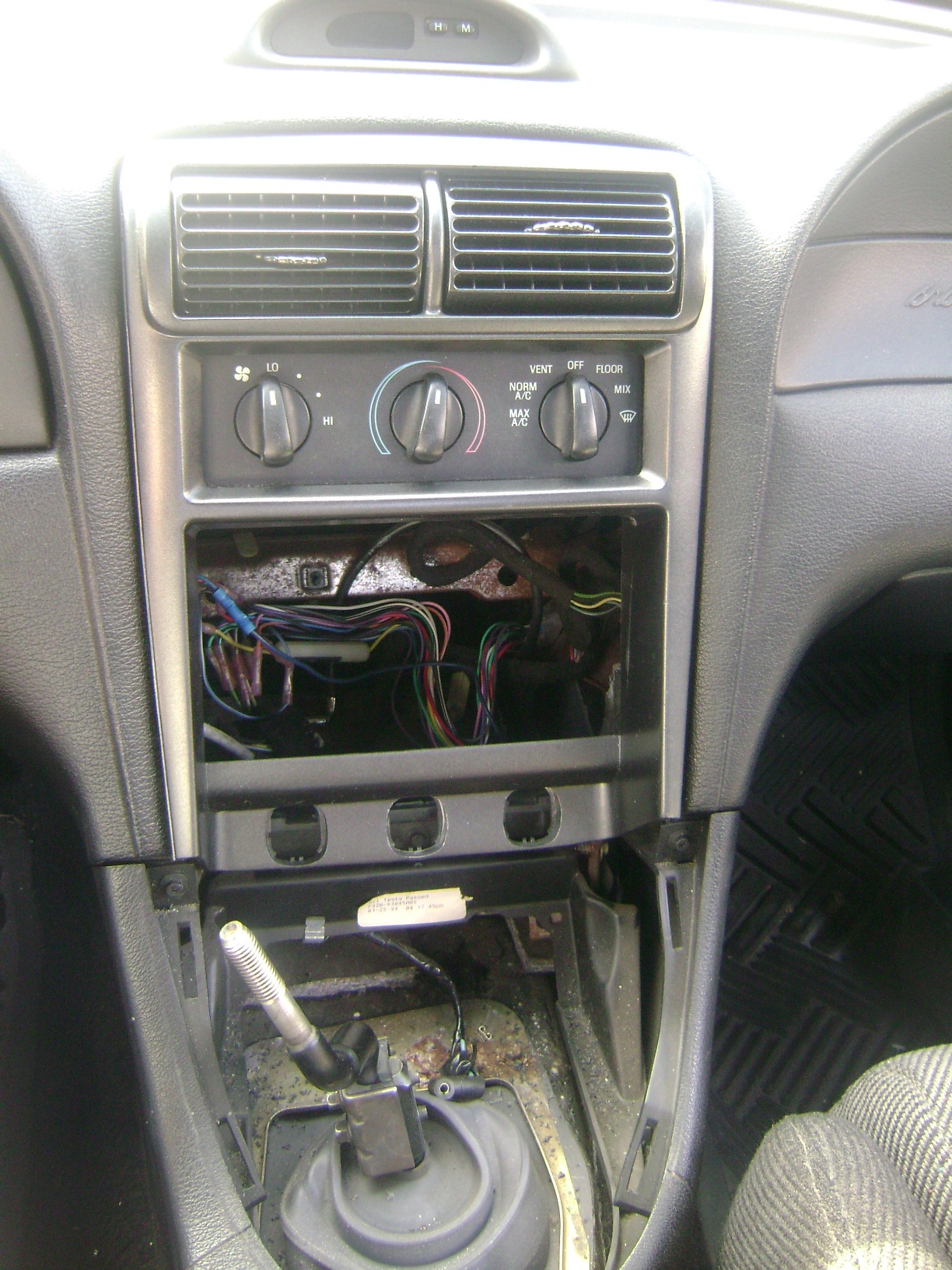

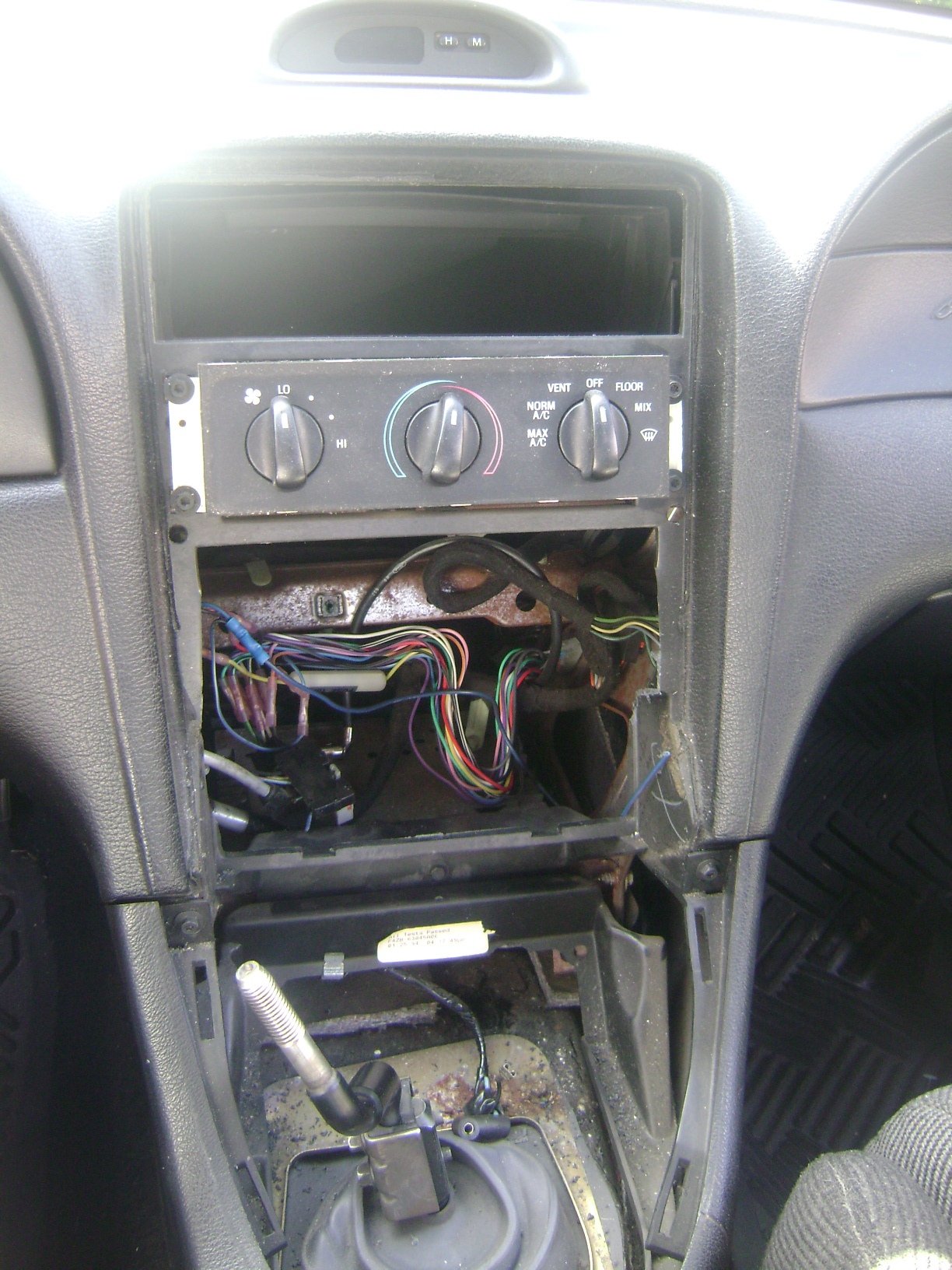

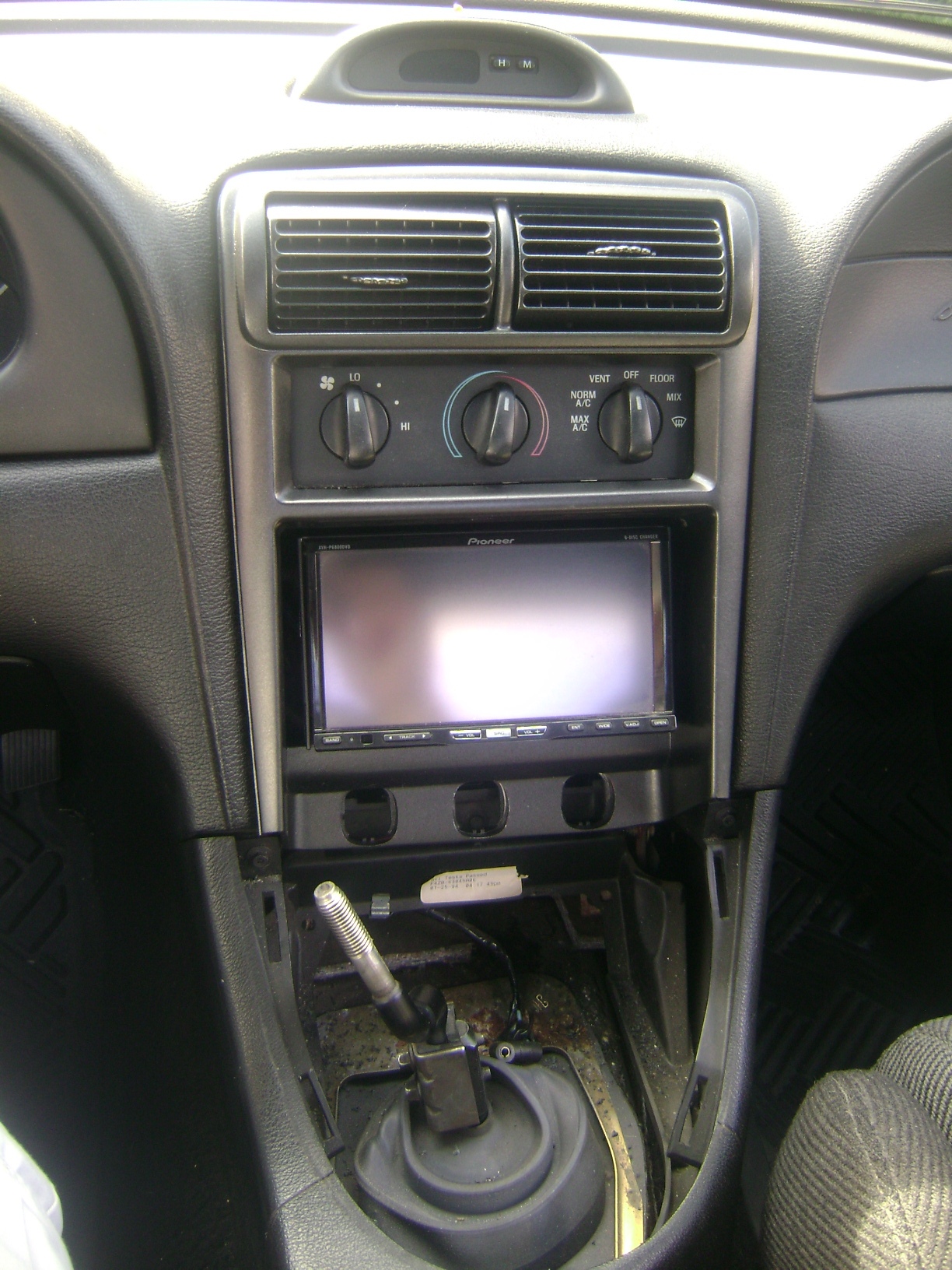

Got busy today. It's not all the way in because I have to build a cage to bolt it in.

Post by **stipud** » Mon Sep 07, 2009 3:02 pm

Damn man, get a vacuum cleaner in there stat!

Is it going to need a trim ring to fit flush?

Post by **ttocs** » Mon Sep 07, 2009 5:30 pm

that is all the shavings from cutting the underdash.

I think I have heard that you can get a new model mustang(05-09) mounting kit and use it to mount the radio.

Post by **Rold Gold** » Tue Sep 08, 2009 7:00 am

It can't sit flush..... The face motorizes out and down about half way to load disc's so it has to have the clearence.

Post by **Rold Gold** » Thu Sep 24, 2009 6:10 am

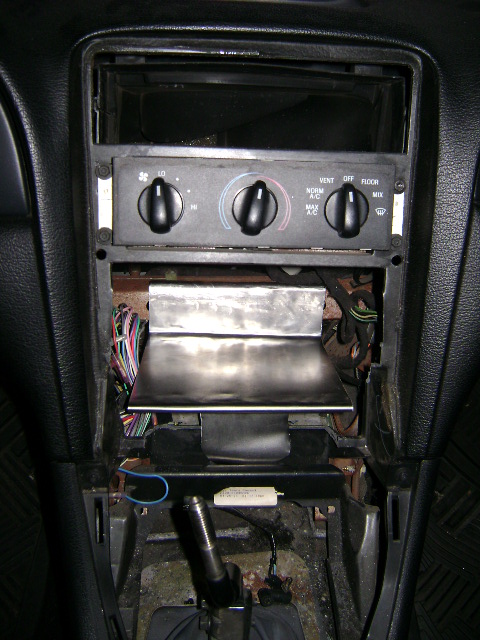

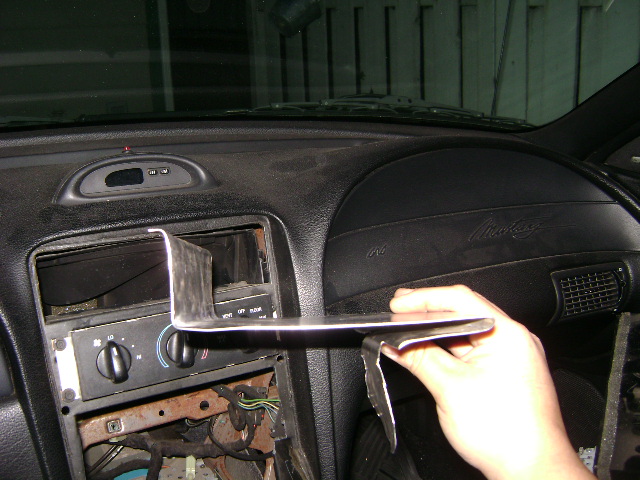

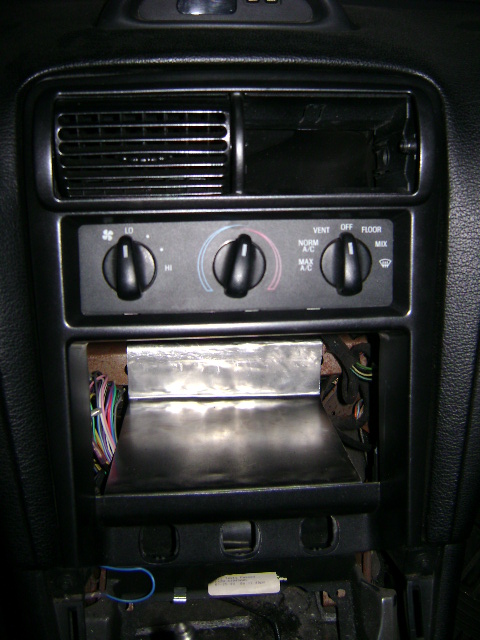

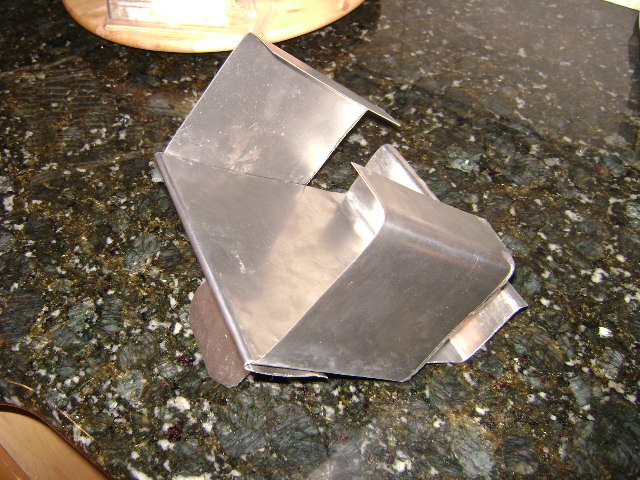

So I've made alittle progress................Took a piece of 20gauge flat steel and got creative................

Post by **ttocs** » Thu Sep 24, 2009 7:55 am

that should hold it!

Post by **Rold Gold** » Thu Sep 24, 2009 8:26 am

I guess it should hold it......................

Post by **ttocs** » Thu Sep 24, 2009 1:54 pm

are you wiring into the mach system or replacing the speakers?

Post by **Rold Gold** » Thu Sep 24, 2009 3:14 pm

For now I'll be wiring into the mach system but as soon as my M100/M44 project is done, I'll be switching everything else out. I'm also gonna try to put some 6.5 RSd's into the rear enclosure along with the tweet and see how that sounds....... If it sux then I'll remove the rear fill and put the 6.5 in a kick.

Post by **ttocs** » Thu Sep 24, 2009 6:47 pm

let me know if you have any questions on the mach system. You can tweek it and make it sound much better then with the stock radio.

Post by **Rold Gold** » Thu Sep 24, 2009 7:23 pm

I have an eclipse in there right now...... How do you mean "tweek"?

Post by **ttocs** » Thu Sep 24, 2009 10:05 pm

When I had just a deck in there I bypassed the front amp/x-over and ran them off of the deck power. I put some 1000 microfarad caps inline to take out the bass and the stock tweeters were much better. The stock woofer amps like to have a high voltage input. If your deck doesn't have a 4-8v output then plan on getting a line driver so that the stock woofers will play at full volume. With these two little things the stock speakers sound much better.

Post by **Rold Gold** » Thu Sep 24, 2009 10:38 pm

right right......................
I'll see what I can do. Sounds pretty good now too so we'll see..... I really plan to have the install going full swing this winter though for sure....... Lot's of changes in the coming months if all goes right. 98 GT wheels/tires, headlights/corners, new exhaust, Poly bushings all the way around, Eibach Sportlines/KYB's, Steeda camber plates, and a basic MSD ignition upgrade. Maybe battle boxes aswell but I don't really drag it too much....Only at on-ramps...

I kinda thought about grabbing a good longblock and doing a rebuild aswell. Then after I yank this motor, I can rebuild it too and have one for a rainy day..... We'll see what my christmas check is this year......................

Post by **Rold Gold** » Sun Oct 18, 2009 2:18 pm

Polished up the oem headlights today and what a difference.

Not too bad what alittle time, BlueMagic and some elbow greese can produce on yellowing plastic. Needs a 4000grit buffing to be 100% but whatever......

Post by **smgreen20** » Sun Oct 18, 2009 6:12 pm

A guy I know that details cars uses water and a high speed buffer to buff out the "foggy" looking lights.

On another note a close friend of mine has a 45th anniversary Mustang w/a mach stereo in it. 6 separate amps on a try and two 10" subs. I was impressed for factory. Is this the same stereo you are talking about?

Post by **AVICJR** » Sun Oct 18, 2009 6:13 pm

3M sells some stuff also to get rid of the yellowing. It comes in a small black bottle and costs @ $15. Not much elbow grease needed either. I can get the name of it but it really is good stuff.

Post by **ttocs** » Sun Oct 18, 2009 7:01 pm

I used to do installs at a place that leased its garage space from an automotive detail shop and they would polish the bug guards on trucks with a high speed buffer. They sell a 3m kit at autozone that has a small buffing pad that goes on your drill. If you want to keep them looking smooth put a good quality UV protected clearcoat that is good on fiberglass/plastics.

The mach 1000 system is what you are showing and was the best factory system ford ever offered. This is a little more then what we had with the mach460 system. The 460 is still a fairly good system for factory specs.

Post by **Rold Gold** » Sun Oct 18, 2009 7:24 pm

Next weekend, I plan to "smoke" all 4 pcs up front. Might even do the fogs if I have time.

On a NEW PARTS note-
After about an hour of reasearch, it looks like I'll be looking at about $1700 to do shocks/struts, lowering springs, camber plates, ENERGY bushing upgrade, Flowmaster header-back exhaust and front/rear wheel spacers. Probly have to see what we'll be getting back on taxes this year before I can get everything. But once I've got it all, it'll take a good portion of a weekend to do the work. Still in a holding patern on finishing my system but I've got 80% of the pcs. All I really need is a cap change on the M100/M44 and to finish the covers.........but I'm slow these days......
