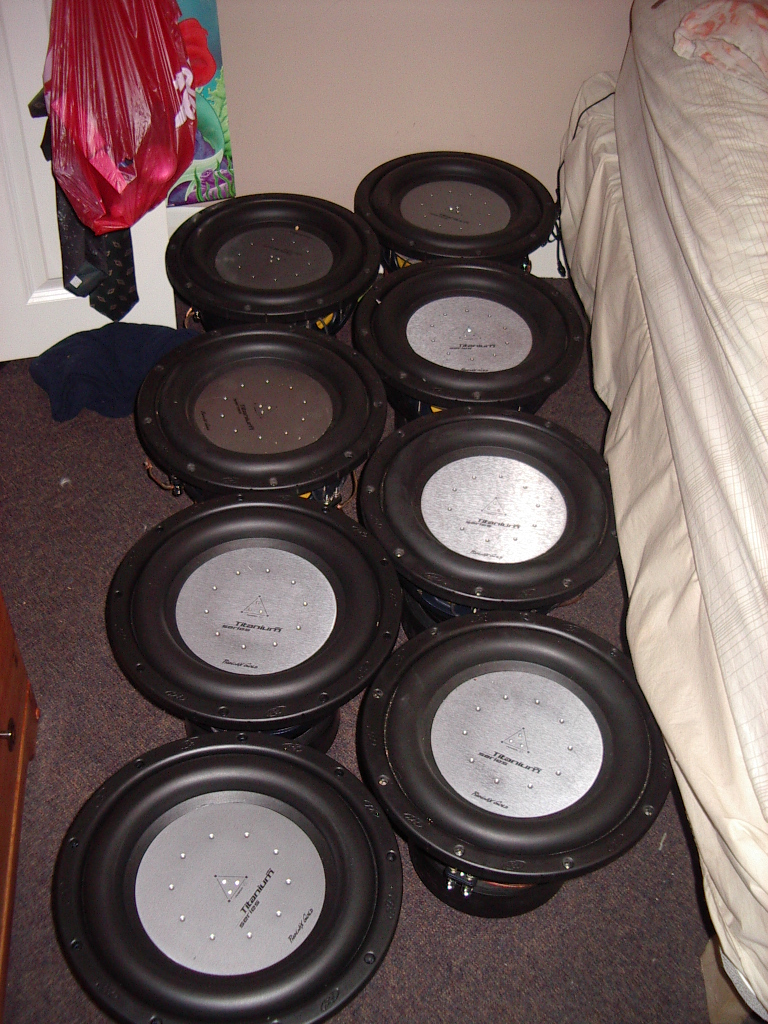

8 Titanium Elite's

oxphatxo · Post by **oxphatxo** » Sat Aug 23, 2008 4:49 am

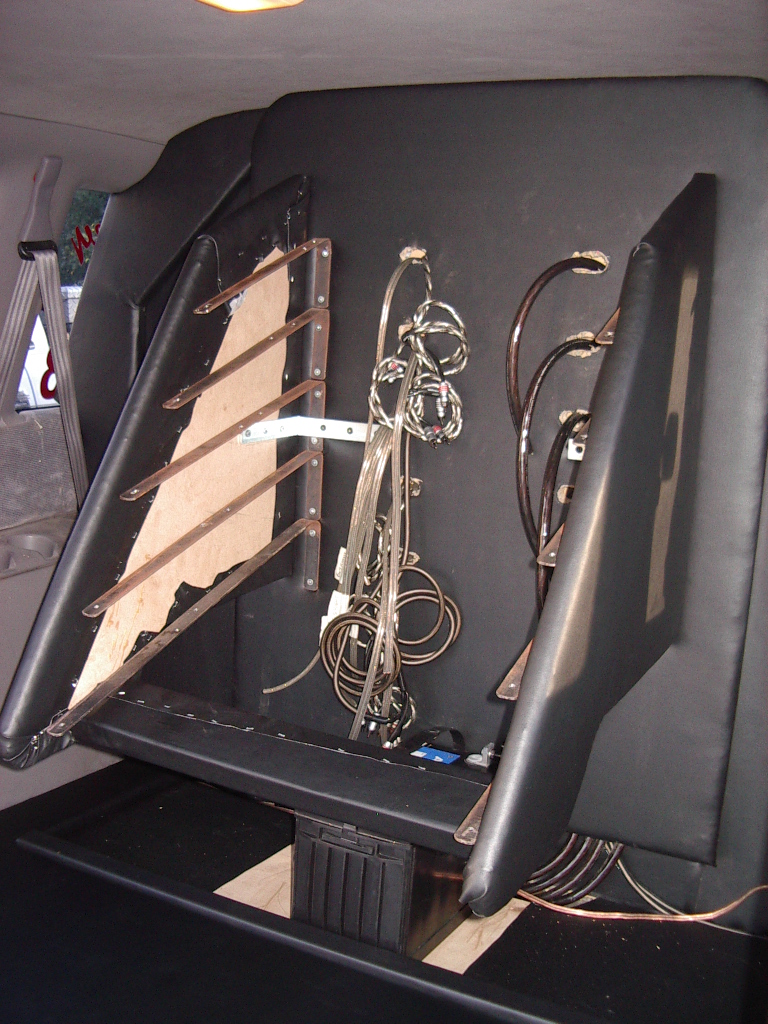

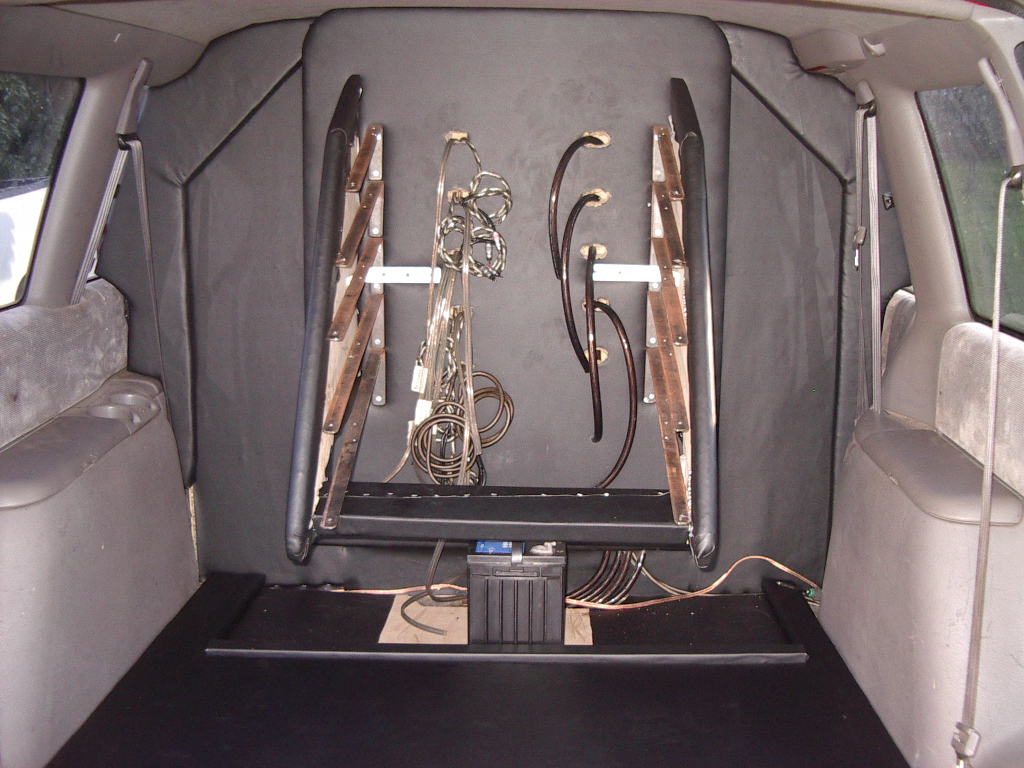

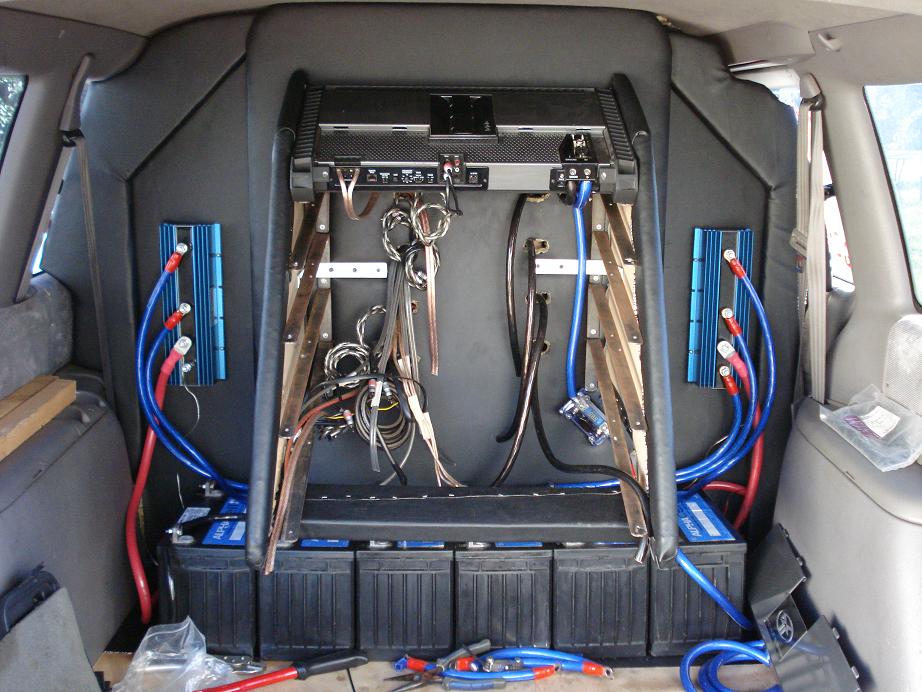

Here's what i've been working on the past couple of weeks. Right now I am on hold waiting for some wire, fuses, and battery isolators to arrive in the mail. There will be 6 of those batteries filling the empty area that you see there.

nico boom · Post by **nico boom** » Sat Aug 23, 2008 6:08 am

......That's gonna move some air for sure!!...

Like to see more pics of that as you progress..

KHPower · Post by **KHPower** » Sat Aug 23, 2008 6:50 am

Dude awesome! We run the same Power wire in my van

whne you get metered let me know what you hit on the Term.

Post by **Bfowler** » Sat Aug 23, 2008 11:41 am

thats sick as hell! keep em coming

oxphatxo · Post by **oxphatxo** » Sat Aug 23, 2008 4:07 pm

Shit guys, I was at a car audio show today and was checkin out what people have in their systems. A couple of people had 9 positive 0 AWG wires and 9 ground 0 AWG cables running from their hood battery to their amps in the back. They only had between 2 and 4 amps!! So they had the cables running to blocks in the front and in the back and then dual power inputs in their amps. I asked why the hell don't they just put the battery in the trunk then? They said because that would put them into a different class. I asked why the hell they would need THAT many wires for power when its only 1 battery, they said it makes a difference. If thats all true, I feel like im not even coming close to taking to right steps into making the best system possible. Although i've got a battery bank, and my amps only have single power inputs... I don't know, its just mind boggling. I have only been to a couple of events in my life, so i'm learning as I go.

thedeal7235 · Post by **thedeal7235** » Sat Aug 23, 2008 6:40 pm

it look slike u have one big vent?????(for the subs)

nico boom · Post by **nico boom** » Sat Aug 23, 2008 9:57 pm

Just learn about the laws of physics; and you'll be fine.
There are simple laws to determine how thick your wires should be; don't let other people's installs or visions make you do the same in your own car.
-ask yourself; am I building within regulations, to win in a certain category, or am I building for myself, using my own ideas.
-batterie[s] in the trunk is ALWAYS a better choice when using multiple big amps IMO; saves money on cable[s], and shortens the resistance the current "sees"while traveling to your amps, especially when "peaking" during S.P.L competitions.
So go ahead and build your own system.

If you need good advice; ask the experienced members here for advice for the right cablesize, based upon the current-draw of your combined system, cable length etc.

[I do miss my friend CECIL around here.....]

KHPower · Post by **KHPower** » Sun Aug 24, 2008 2:31 am

Hes right ya gotta do your own thing. Take advice from others but what will work in one vehicle might not work in yours.

You have a wall setup and you woiuld be in a modified class so Competition will be tight , but its that way in every class now it seems. Different show have different folks that show. On day you compete in a town and recieve a trophy the next wekk 20 miles away you get blown out of the water

I think its cool to be different , regarding the vehicles used.

No offense to Honda Civic owners but the last show I was at there had to be about 20 of em competing and alot have the same setups so its not too different and unique but to each there own I guess

oxphatxo · Post by **oxphatxo** » Sun Aug 24, 2008 4:12 am

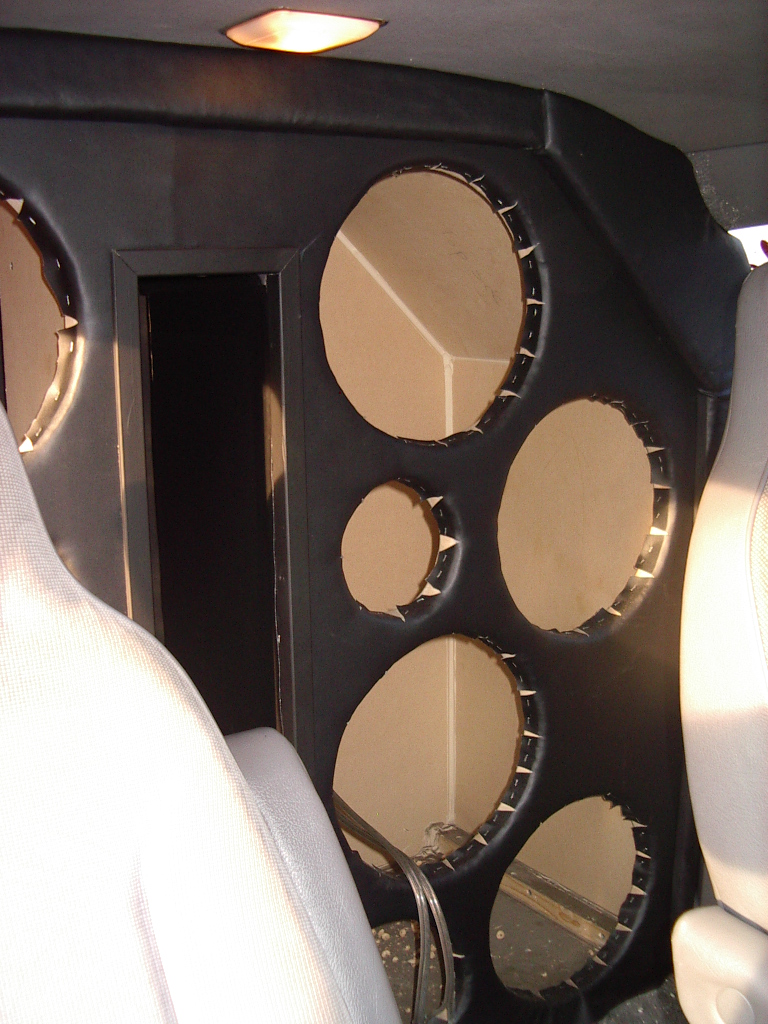

To thedeal7235: Yeah, one big port. The port is divided in half with a wall that separates 4 subs from the other. As well, there are 6.5" mids and 6x9's at the bottom built into the wall but there is an airtight baffle going behind each of the mids. The port was made as close to spec as possible for SPL according to the manual for the subs.

Yeah I keep telling myself, i'm building this system for my own pleasure. Not to any specific regulations. I wanted it to look nice and clean and work as best possible. That's all that matters. The other thing too is, a lot of these people who have butchered their vehicles are loud yes, but don't even get to drive around with the system because its strictly for show and competing only. I think thats a bit of a waste, I would rather be able to drive and listen not park and listen. If car audio is CAR audio, then what's to stop these people from just putting a stereo into a square trailer air-tight and calling it their system? It's the same thing to me if you have a car with a system that don't run on the road. I know it's still a car, but it's kind of like putting a Chev big block into a Ford Escort. It just don't fit. That's the idea I guess...

Thanks for the support guys.

Post by **smgreen20** » Wed Aug 27, 2008 6:39 pm

Makes me think of Dave Jennings' van. Got to see that in person.

drivingdadevil · Post by **drivingdadevil** » Sat Aug 30, 2008 2:09 pm

We need to see some videos when you finish this beast.

oxphatxo · Post by **oxphatxo** » Sat Aug 30, 2008 2:16 pm

I'm going as fast as I can.. God damn the U.S. mail. Waiting on my isolators and neon lights before the subs go in. (Blue neons inside the port, I hope they don't break

)

Post by **Wakeup** » Sat Aug 30, 2008 10:27 pm

Looks like it is starting to come together then!? definitely keep us informed!
I am glad I invited you to come to the Phorums!

dako · Post by **dako** » Sun Aug 31, 2008 7:05 am

that looks vicious so far! nicely done. and yeah, i'd imagine that'll sound pretty damn sweet once it's all in place and tuned up.

seandiguer · Post by **seandiguer** » Sun Aug 31, 2008 10:13 am

I forsee a cracked windshield in the near future..lol

nico boom · Post by **nico boom** » Sun Aug 31, 2008 12:01 pm

MORE PICS/VIDS OR BAN!!

JK....Take your time dude;have fun building this monster!
Nico

oxphatxo · Post by **oxphatxo** » Thu Sep 11, 2008 5:22 pm

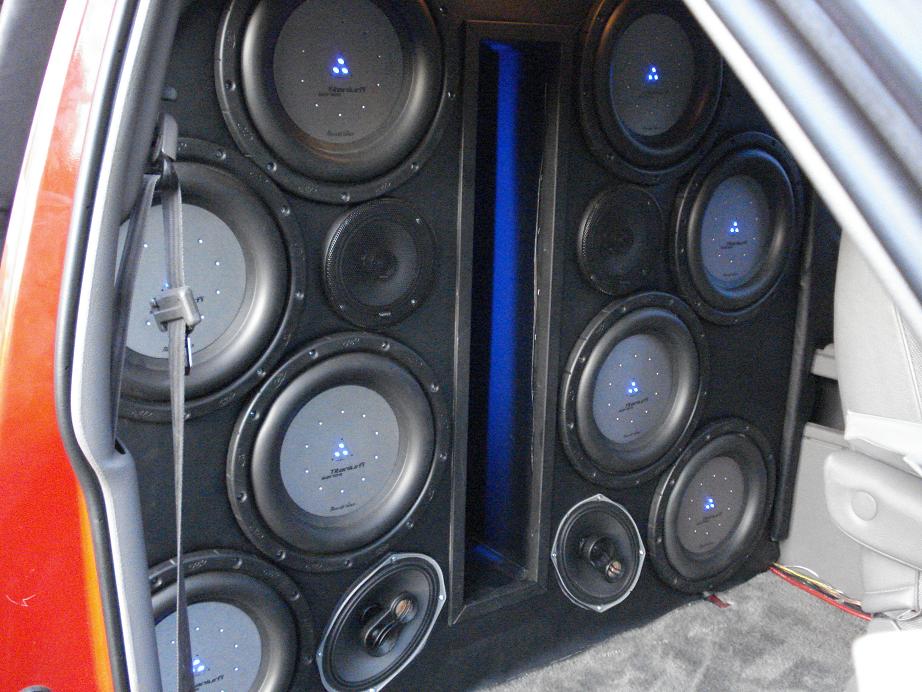

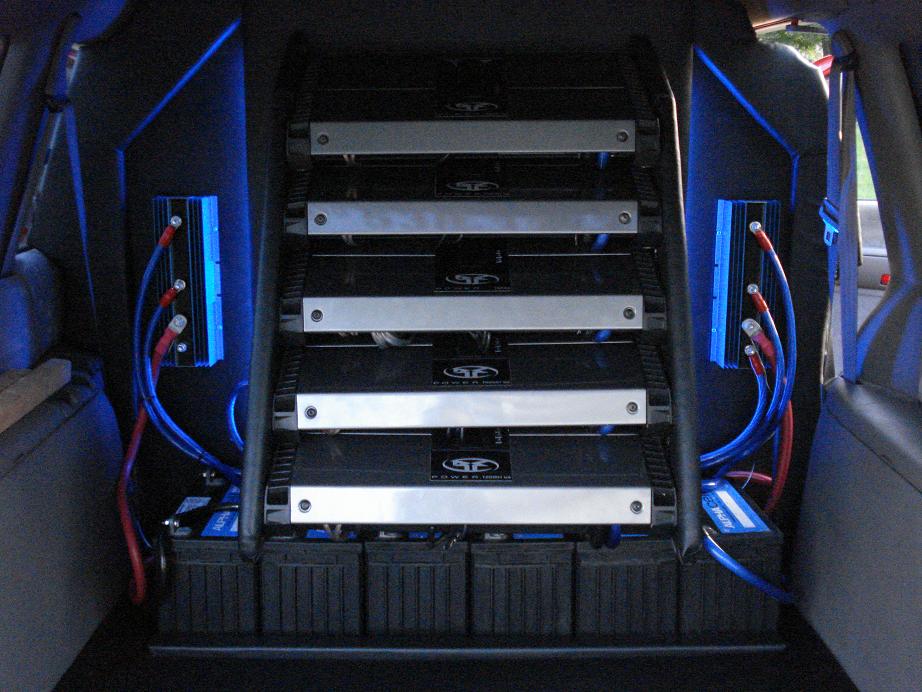

Well, it's been long enough. I'm posting the pics I took today. It's not completely final product, but now you can see the idea i'm going for... More pics coming soon, along with a youtube link..

thedeal7235 · Post by **thedeal7235** » Thu Sep 11, 2008 5:56 pm

YOU"VE been busy!!!!!!!!!!!!!!!!!!!!!!!!!!!!! blue leds look saweeeeet, almost gives the rf amps a "phoenix feel" 2 them-

fordtough1 · Post by **fordtough1** » Thu Sep 11, 2008 6:38 pm

That's freakin sick dood!!!!

thedeal7235 · Post by **thedeal7235** » Thu Sep 11, 2008 6:50 pm

when ur done, u gotta video those subs hitting- i mean they are gonna bow that frame out; i mean my 2 rsdc 10s in my A4 bow the top of trunk@1200 rms-

Zarnov · Post by **Zarnov** » Fri Sep 12, 2008 3:58 am

That looks killer Dude...well done!!

Post by **stipud** » Fri Sep 12, 2008 7:23 am

Kudos! Very nice work!

I love how it's trimmed in leather/vinyl.

culzero · Post by **culzero** » Fri Sep 12, 2008 7:47 am

what type of vehicle is that? Looks like the inside of a Ford Excursion to me

oxphatxo · Post by **oxphatxo** » Fri Sep 12, 2008 12:57 pm

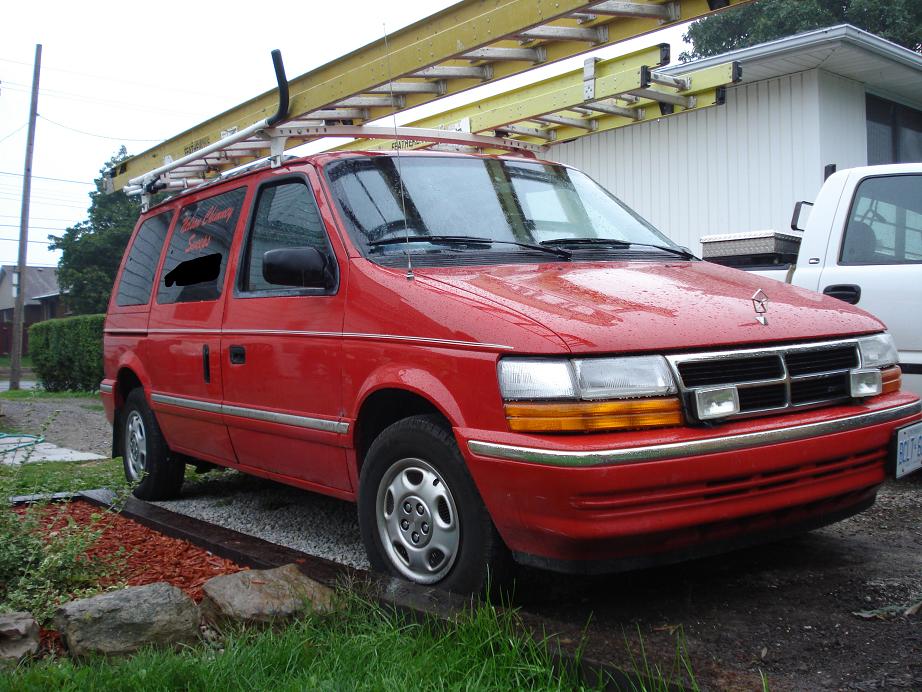

When I show you guys what vehicle it's in, you're gonna laugh. Hard. I like to call it a "sleeper"...

I had to put heavier duty leaf springs in the rear end because it sagged really bad before. The weight of the system is at least 1000 lbs.

I had 2 new alternators put under the hood. A 180 amp and a 200 amp. Each alternator runs a battery isolator. The power system was a little complicated at first, but it works out to be perfect loads for both alternators.

Post by **Bfowler** » Fri Sep 12, 2008 1:00 pm

dude, is that one of the turbo SE's?
