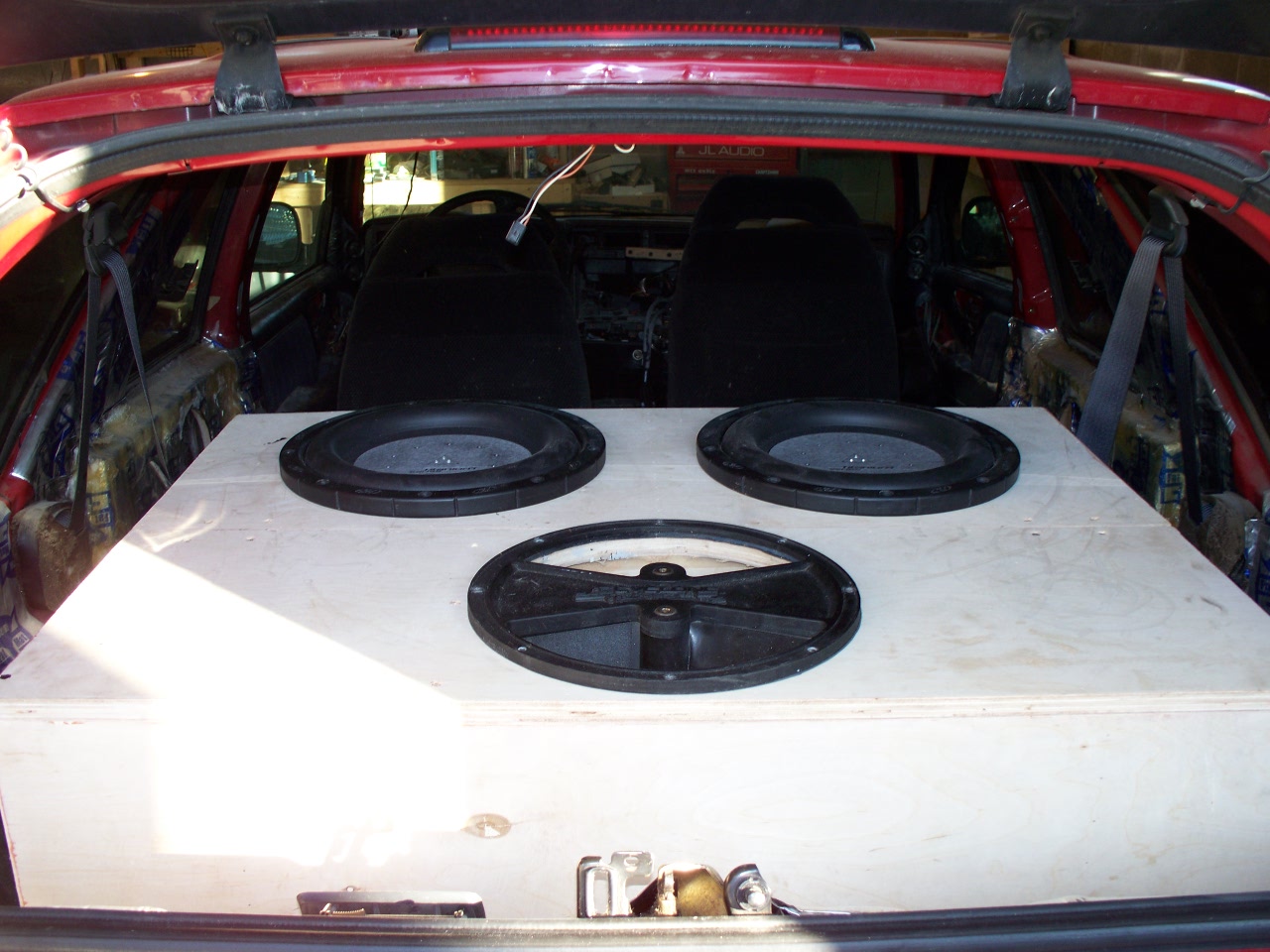

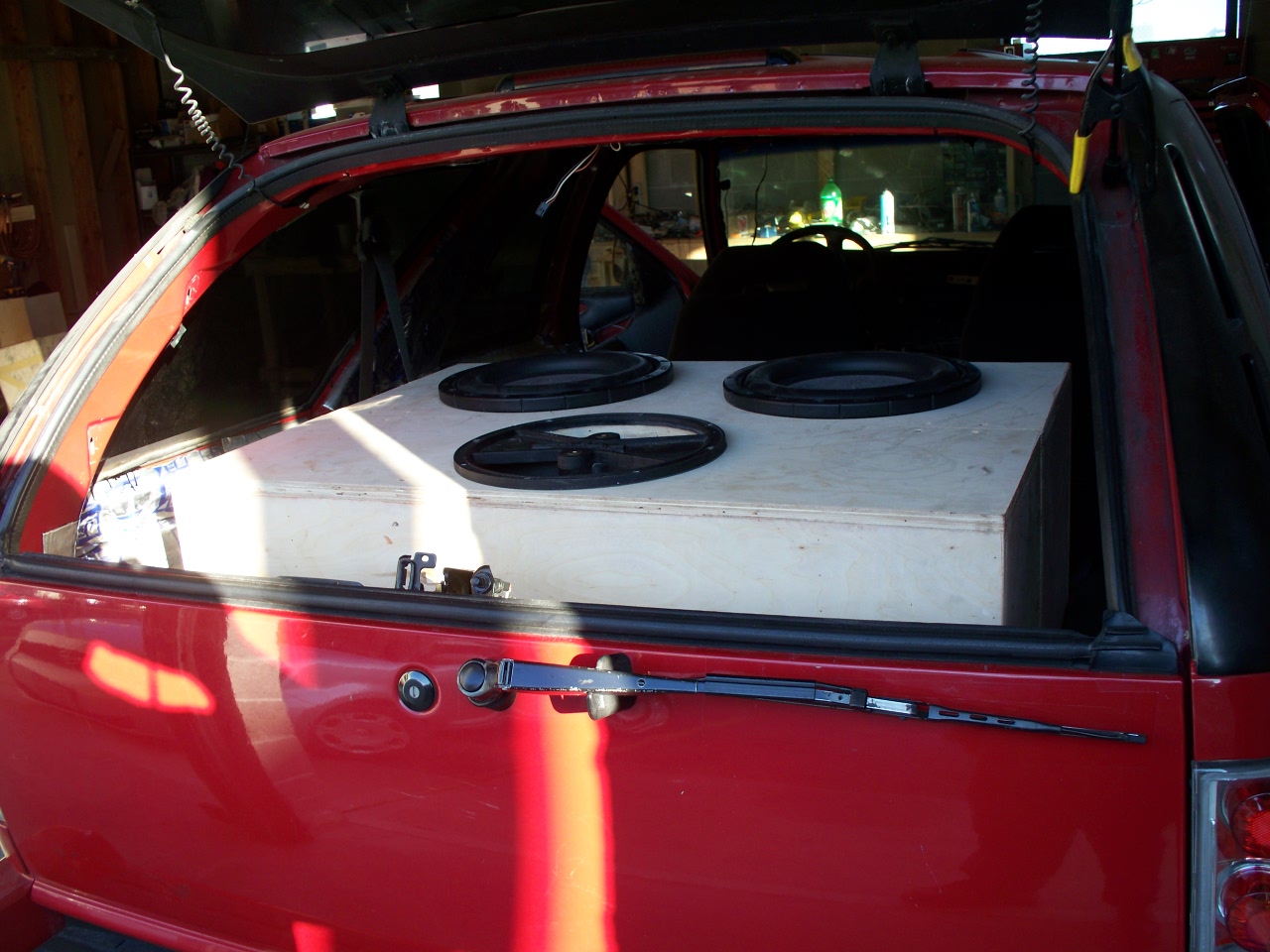

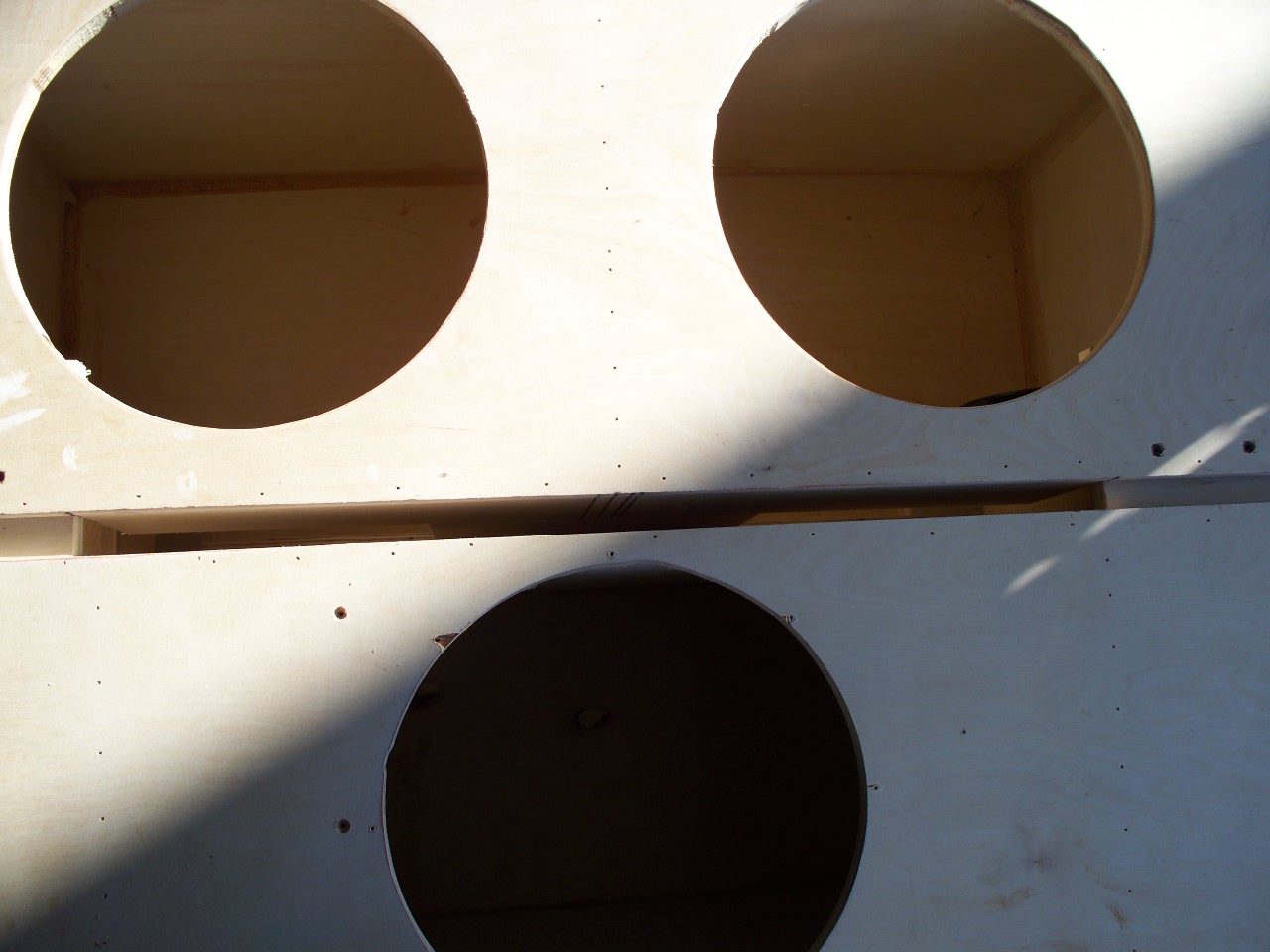

Finally got some time to mock up a box for my 2 Ti12ds and Cyclone. I have a lot of amps to fit in the car so I tried to save as much space as possible but no luck. I needed a minimum of 9 cubes and it turned out to be the whole rear cabin. I have to fit 2 Ti1200.1, 3 Ti600.2, 2 Ti400.2 and 1 Ti500.4 in the car and I wanted them to all fit in the hatch area, but its not looking good. I might have to pop a couple Ti600.2 in the front doors because I want to keep the back seats..... we'll see.....

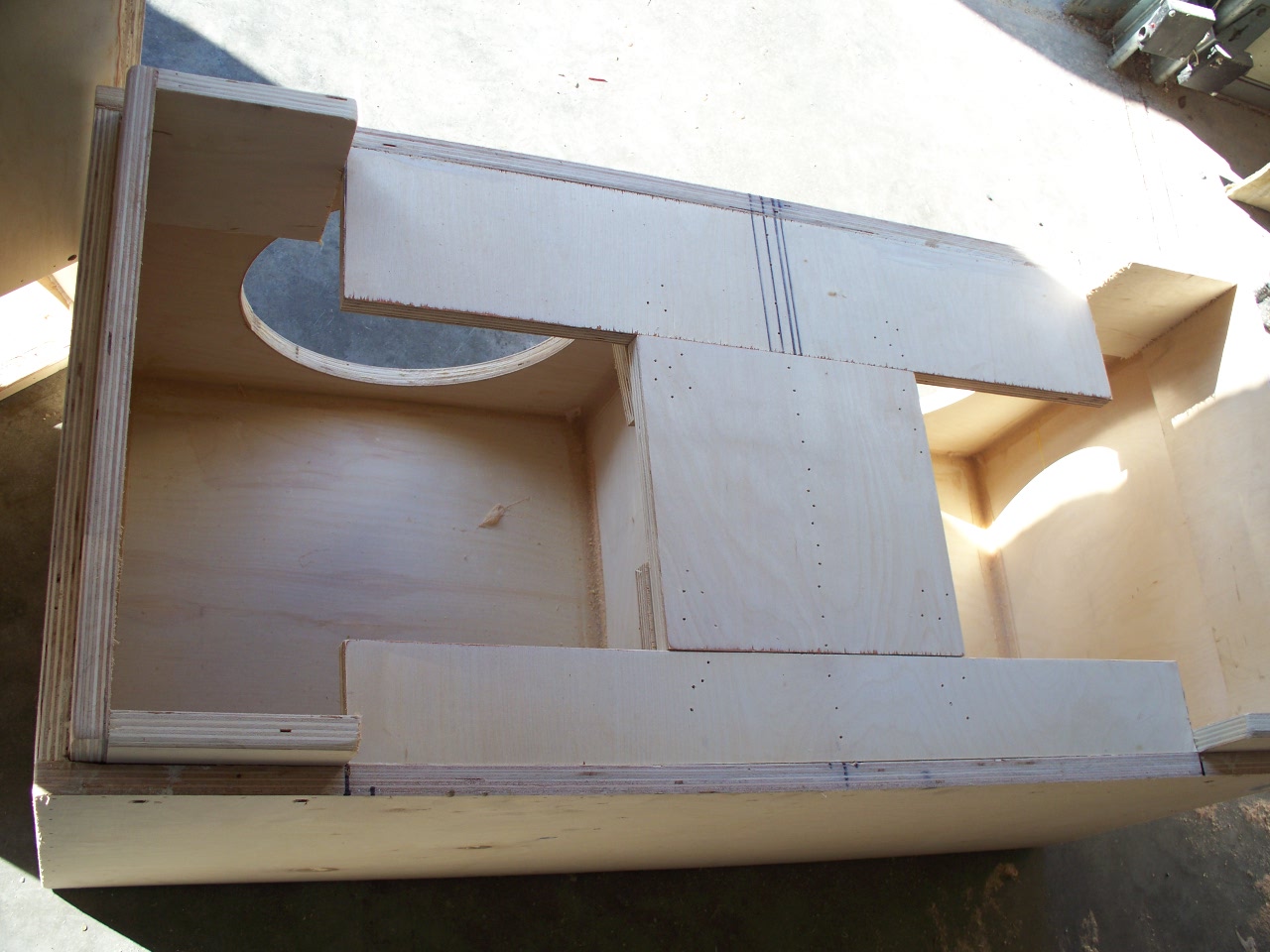

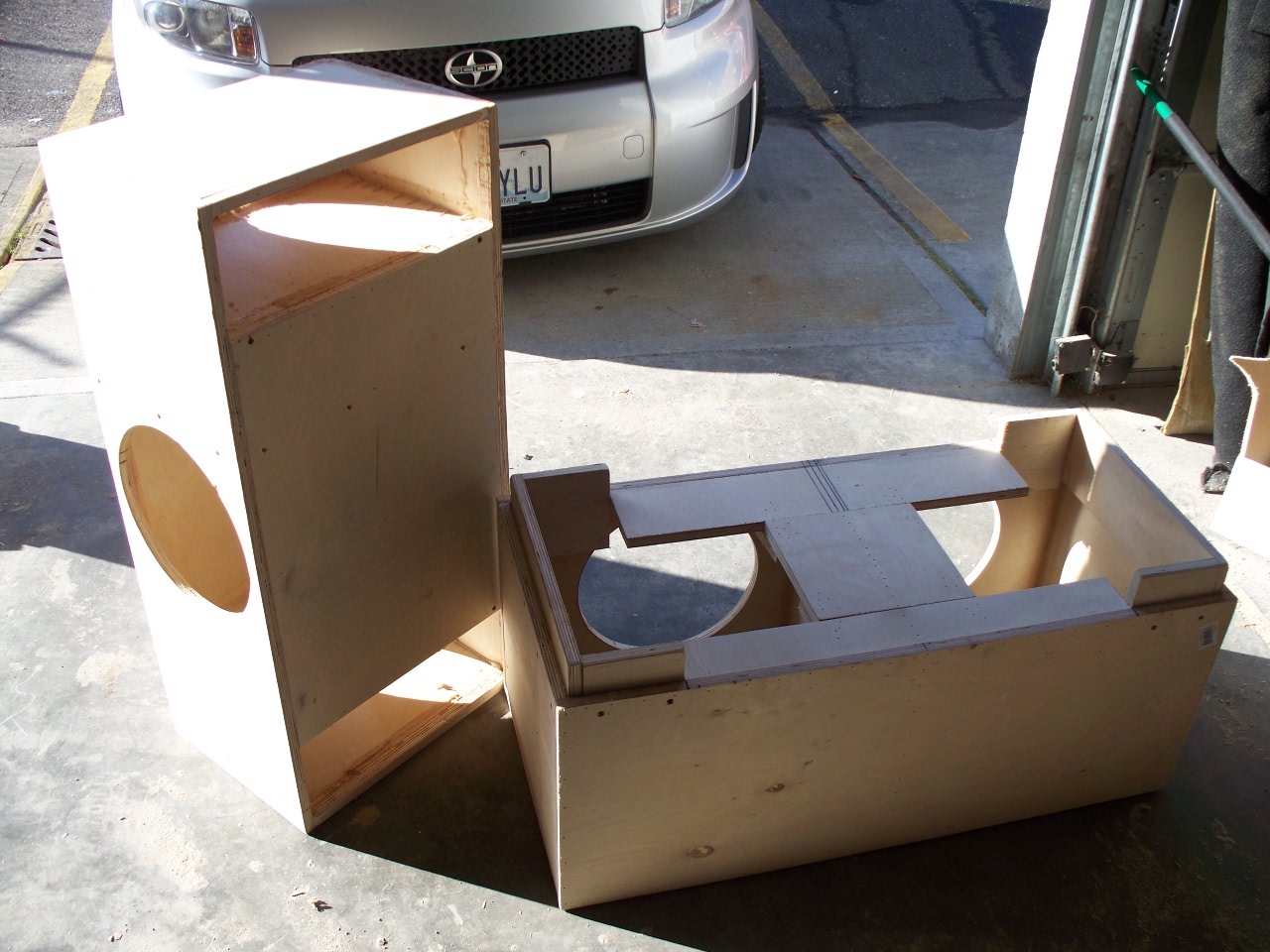

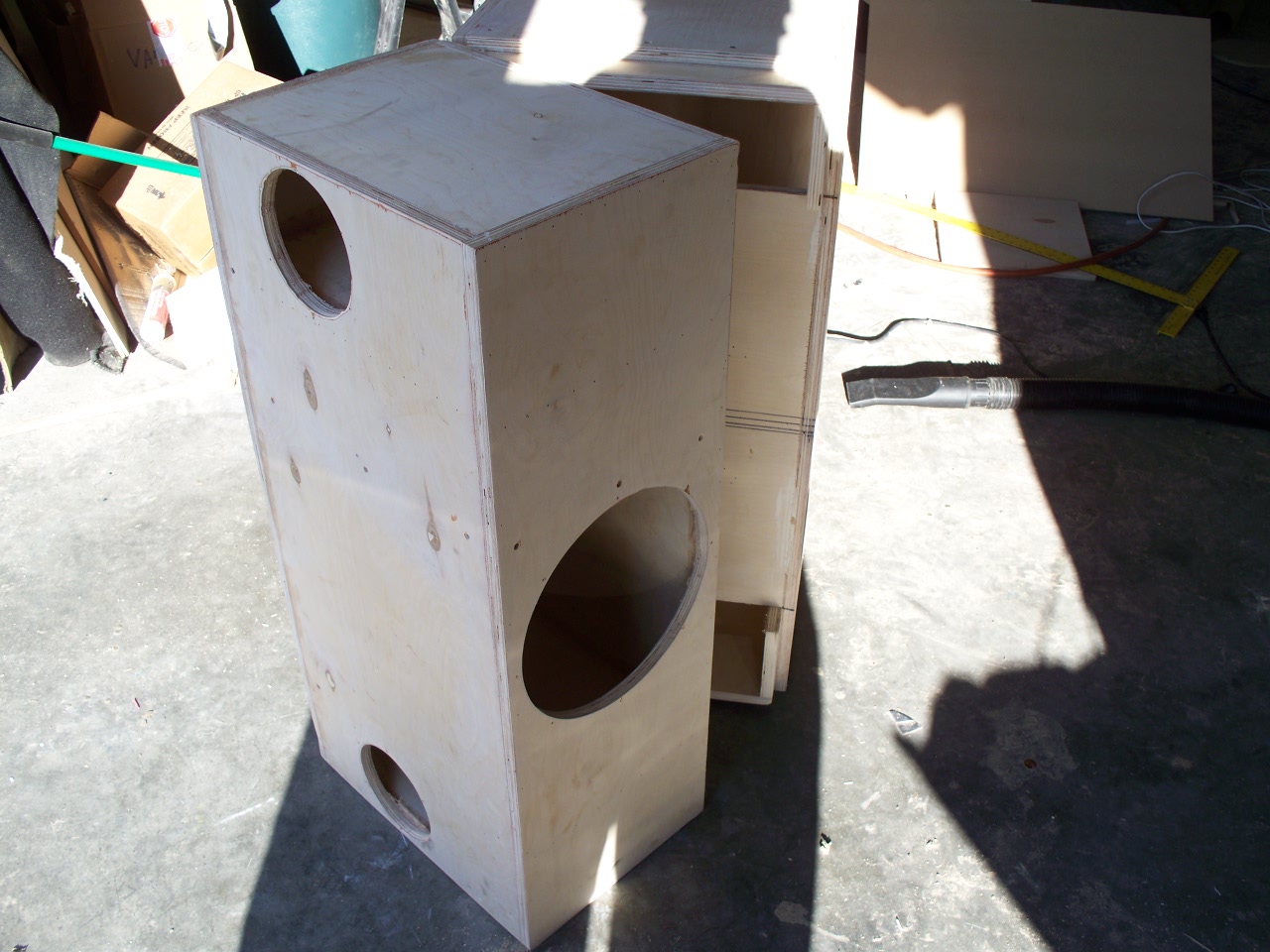

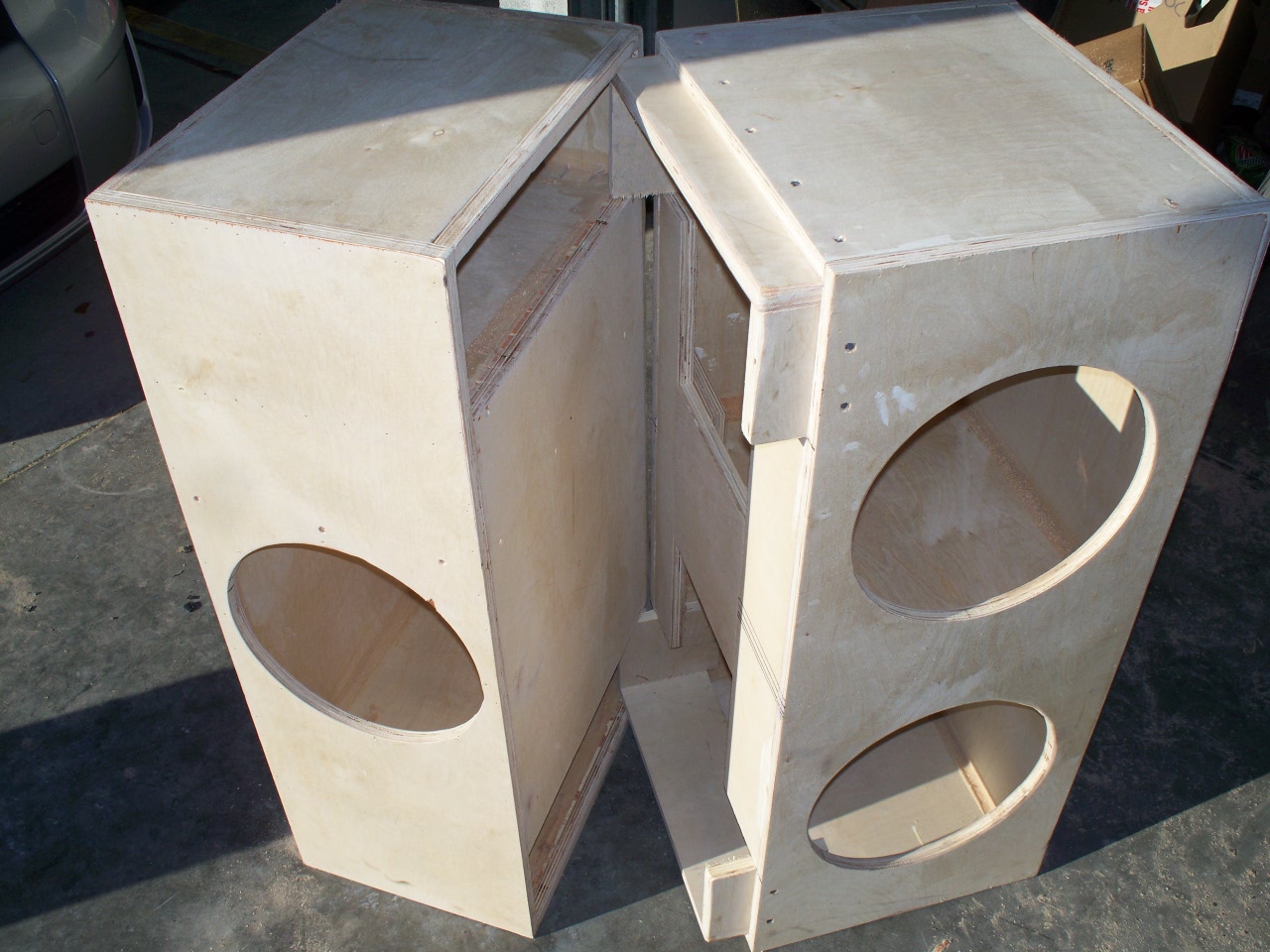

So I built it in 2 pieces so I could make changes as needed and to make it easier to move around for finishing. I have to say though, with birch this thing only weighs 37 lbs unloaded. Gotta love hardwoods.
