The finished pictures of my project FAS-CA Capacitor

Tiger · Post by **Tiger** » Fri Jan 07, 2011 1:38 am

WTF!!!
That's stunning!
:O

Post by **mhyde71** » Sat Jan 08, 2011 2:45 am

absolutely superb!!!!! bery bery nice, bery nice indeed!

hopw about the paint... did you have it coated or painted ? just curious? and not sure if i recall seeing pics of the paint job... or are we not there yet?!?!

looks great though!

m

spiritofnorway · Post by **spiritofnorway** » Sat Jan 08, 2011 2:48 am

Everything is painted ...
The end plates are not finished yet ...
But pictures still to come.
Regards Geri

12voltjunky · Post by **12voltjunky** » Sat Jan 08, 2011 10:22 am

i applaud your talent and creativity

Kurt Wild · Post by **Kurt Wild** » Tue Jan 11, 2011 5:59 am

When I was a little kid I used to like shorting charged caps. Sort of like point welding. I'm pretty sure this thing could produce ball lightning when properly shorted

I also liked blowing up caps by feeding them wrong polarity current. Later I found out old caps contain dioxins and such.

Thunderdome · Post by **Thunderdome** » Sat Jan 15, 2011 2:30 pm

wow

nice stuff, looks great

Post by **ttocs** » Sat Jan 15, 2011 5:41 pm

Kurt Wild wrote:When I was a little kid I used to like shorting charged caps. Sort of like point welding. I'm pretty sure this thing could produce ball lightning when properly shorted

I also liked blowing up caps by feeding them wrong polarity current. Later I found out old caps contain dioxins and such.

You would have loved electronics tech school.....

spiritofnorway · Post by **spiritofnorway** » Fri Jan 21, 2011 11:03 am

Hi guys

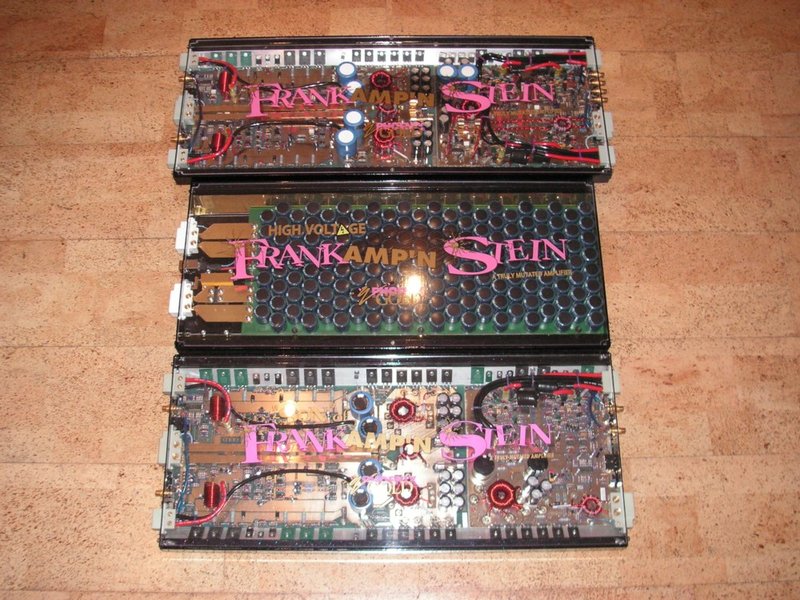

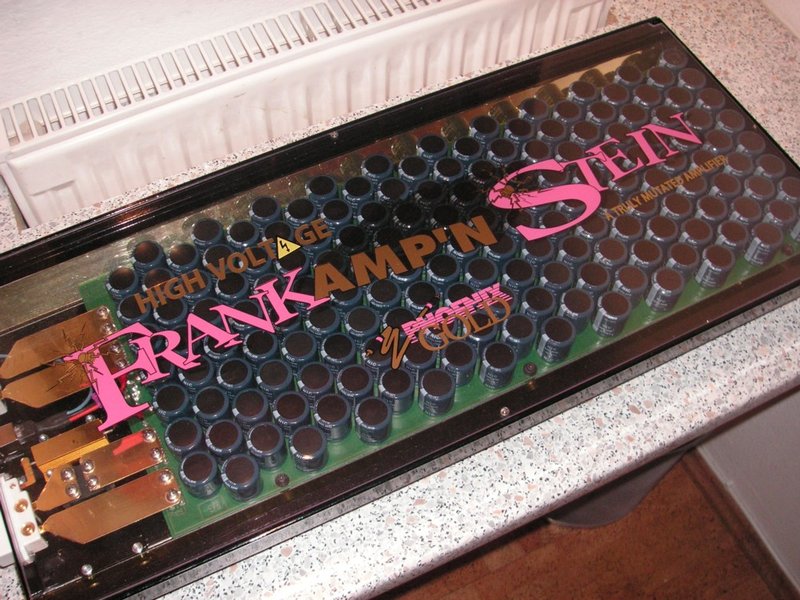

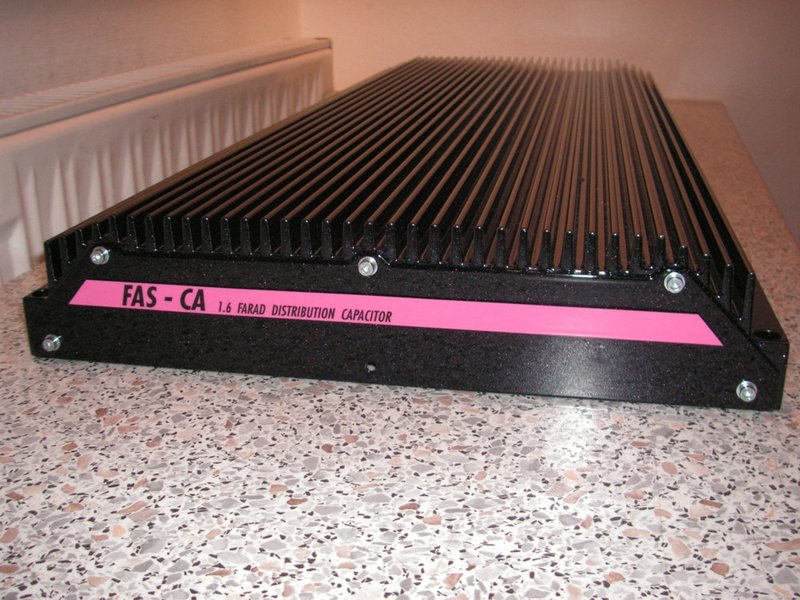

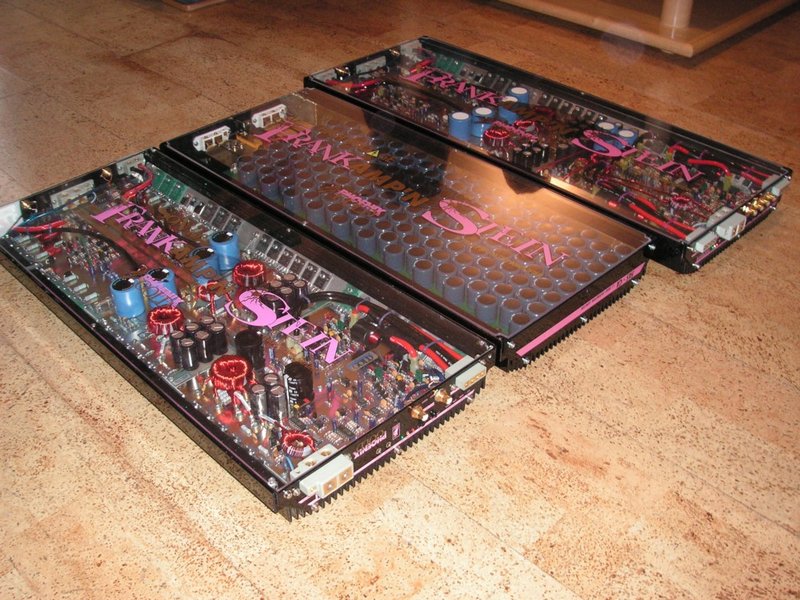

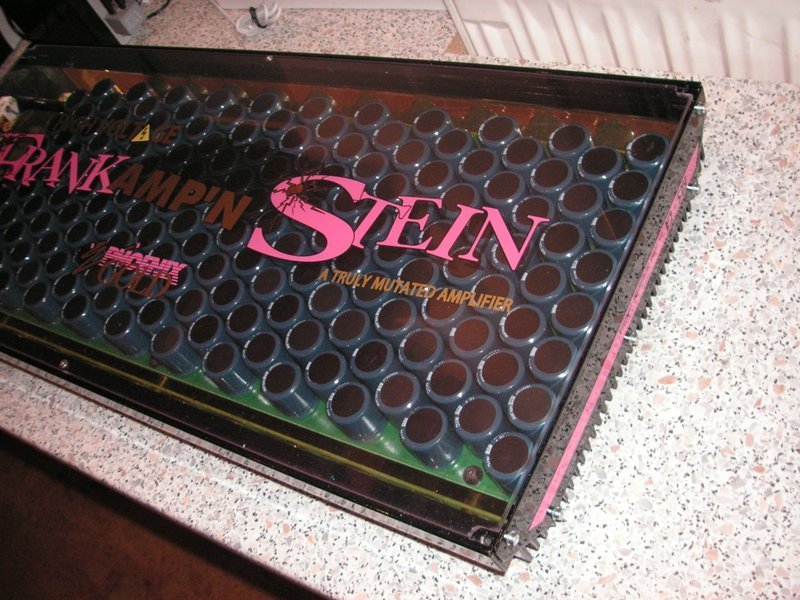

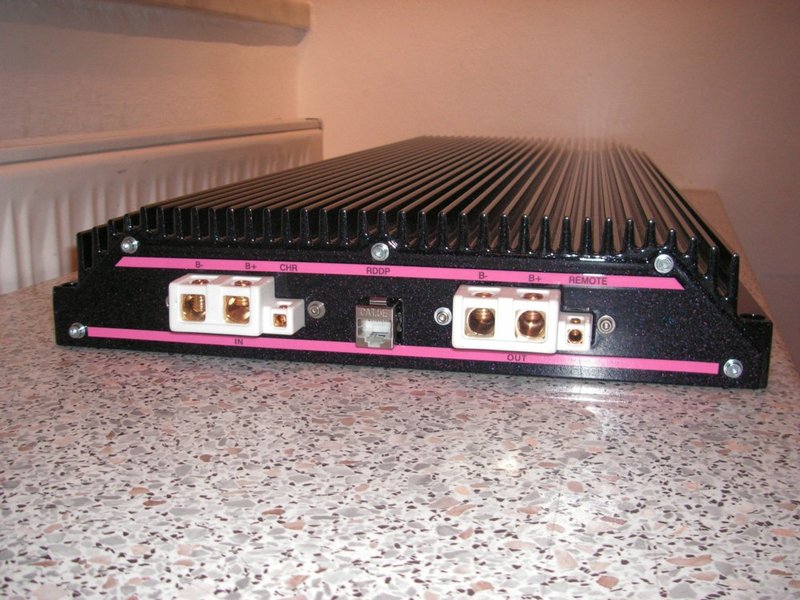

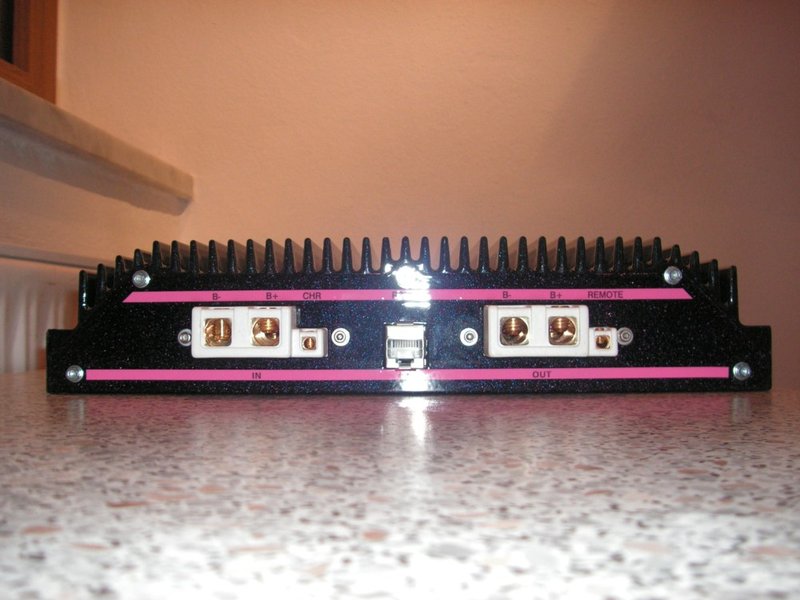

My project is finished.

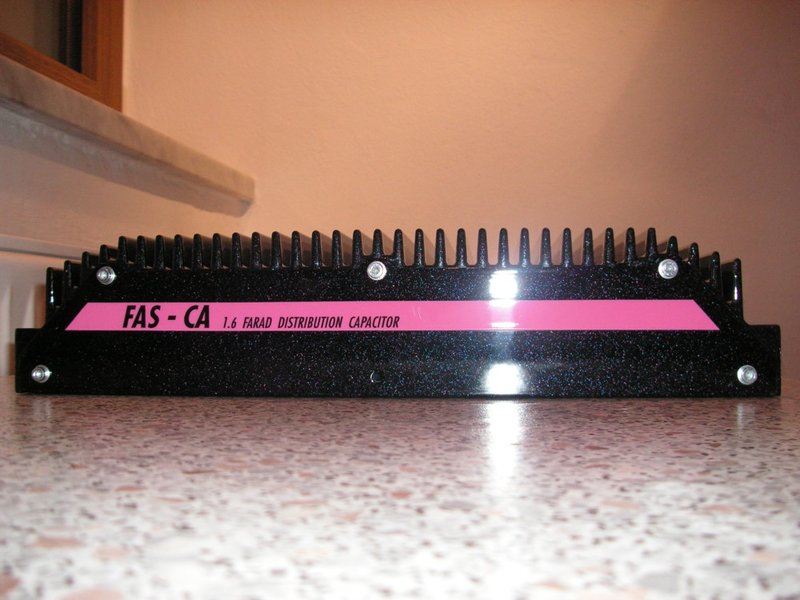

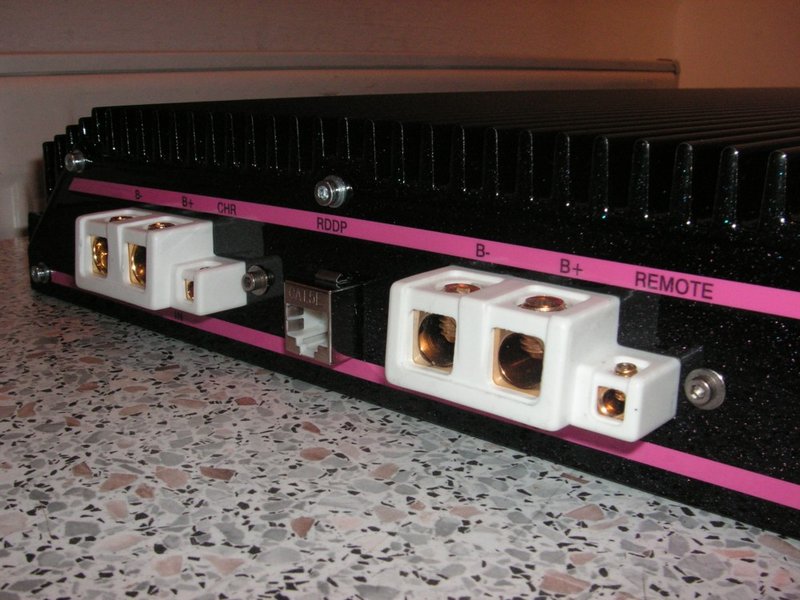

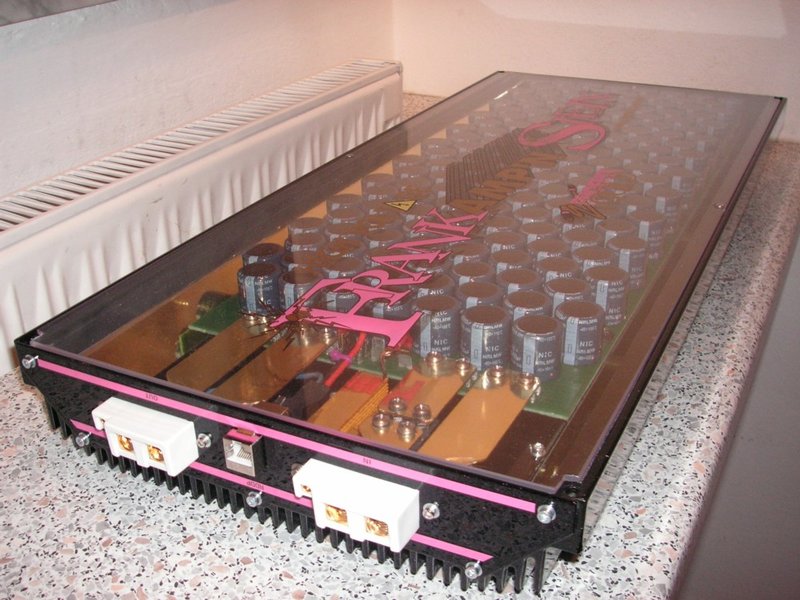

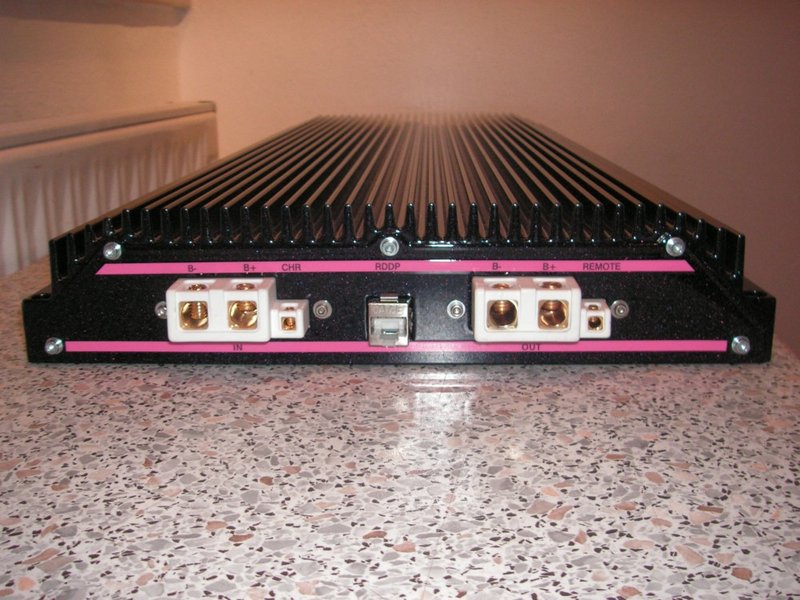

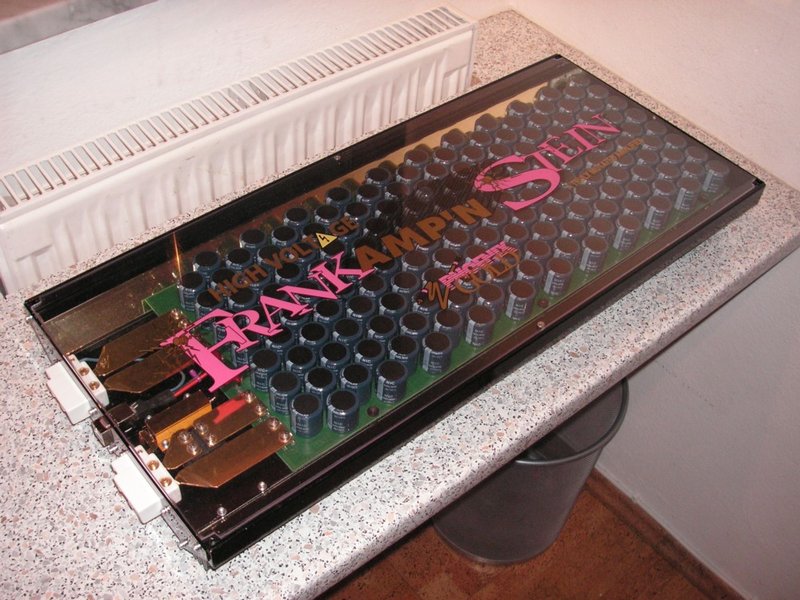

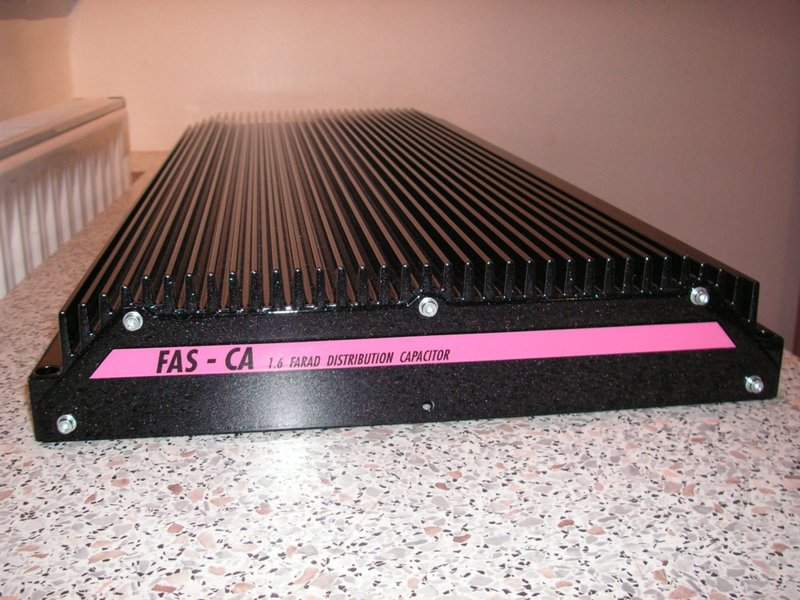

These are the latest images.
There are again only if everything which is built ...
Thanks for the feedback, and for reading.

Regards Geri

Post by **ttocs** » Fri Jan 21, 2011 11:18 am

so now what? looks good, must be nice to see it finished?!

money-b · Post by **money-b** » Fri Jan 21, 2011 11:28 am

my question is,if all that work produced 1.6 farads....how the hell did pg fit 20 and 15 farads into those small little boxes? nice work for sure!

Post by **Bfowler** » Fri Jan 21, 2011 12:23 pm

truly a masterpiece.

Post by **stipud** » Fri Jan 21, 2011 12:43 pm

money-b wrote:my question is,if all that work produced 1.6 farads....how the hell did pg fit 20 and 15 farads into those small little boxes? nice work for sure!

Carbon aerogel vs electrolytic film.

Post by **Eric D** » Fri Jan 21, 2011 1:19 pm

Very impressive job with this. I love the attention to detail and the fact this is a "finished" project, worthy of actual consumer production.

spiritofnorway · Post by **spiritofnorway** » Fri Jan 21, 2011 1:22 pm

money-b wrote:my question is,if all that work produced 1.6 farads....how the hell did pg fit 20 and 15 farads into those small little boxes? nice work for sure!

I wanted the same design of FAS.

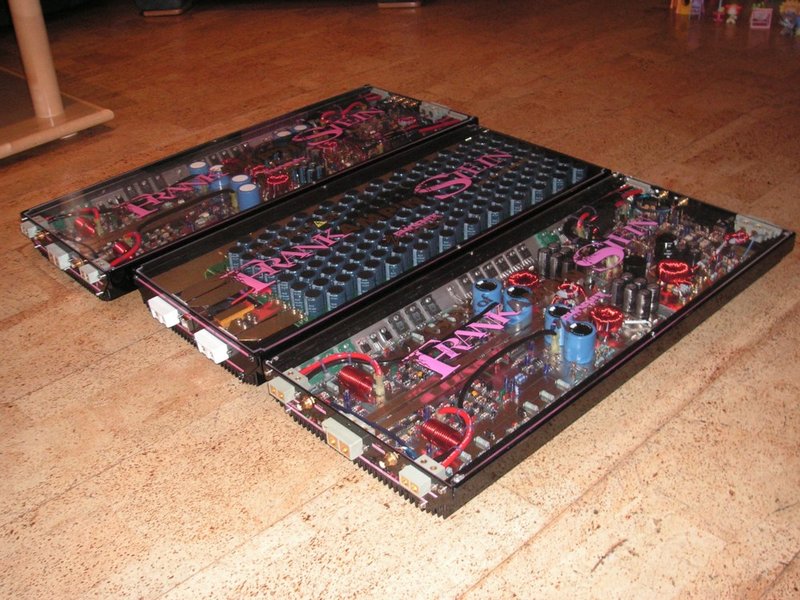

A picture of my baby which is installed in my car
The small capacitors are dropped quickly to give the current.

Regards Geri

money-b · Post by **money-b** » Fri Jan 21, 2011 2:01 pm

Fucking Brilliance!!!!!

marko · Post by **marko** » Fri Jan 21, 2011 10:52 pm

this is without doubt the best custom project I've seen on here, awesome! might only be 1.6farrad but if PG made one back then this is about as big as they could have made it with current cap technology so keeping in with the retro theme..

BIG WELL DONE

brenzbmr@sb · Post by **brenzbmr@sb** » Fri Jan 21, 2011 11:04 pm

WOW, I have seen alot of cool things but this is the fkn coolest thing i have seen in a Very long time. Nice work man

Tiger · Post by **Tiger** » Sat Jan 22, 2011 4:17 am

marko wrote:this is without doubt the best custom project I've seen on here, awesome! might only be 1.6farrad but if PG made one back then this is about as big as they could have made it with current cap technology so keeping in with the retro theme..

BIG WELL DONE

I agree it's up there as one of the best PG phorum custom jobs.

One of the other ones that caught my attention is the ZPA0.8 on here. Dunno if it was ever finished.

Post by **mhyde71** » Sat Jan 22, 2011 6:48 am

very very nice spirit!

QUESTION: how did you go about getting the script/artwork on the end plates...? was that screened?

With my process of artwork and coating - i am unable to get it artwork on darker colors.

perhaps you did it by screening???
and perhaps you / it has been mentioned previously in thread but just dont recall.
and lazy to rerad all through it agian for the third/fourth time

pls thx
matt

thedeal7235 · Post by **thedeal7235** » Sat Jan 22, 2011 11:32 am

spiritofnorway · Post by **spiritofnorway** » Sat Jan 22, 2011 11:58 am

mhyde71 wrote:very very nice spirit!

QUESTION: how did you go about getting the script/artwork on the end plates...? was that screened?

With my process of artwork and coating - i am unable to get it artwork on darker colors.

perhaps you did it by screening???
and perhaps you / it has been mentioned previously in thread but just dont recall.
and lazy to rerad all through it agian for the third/fourth time

pls thx
matt

Hi Matt

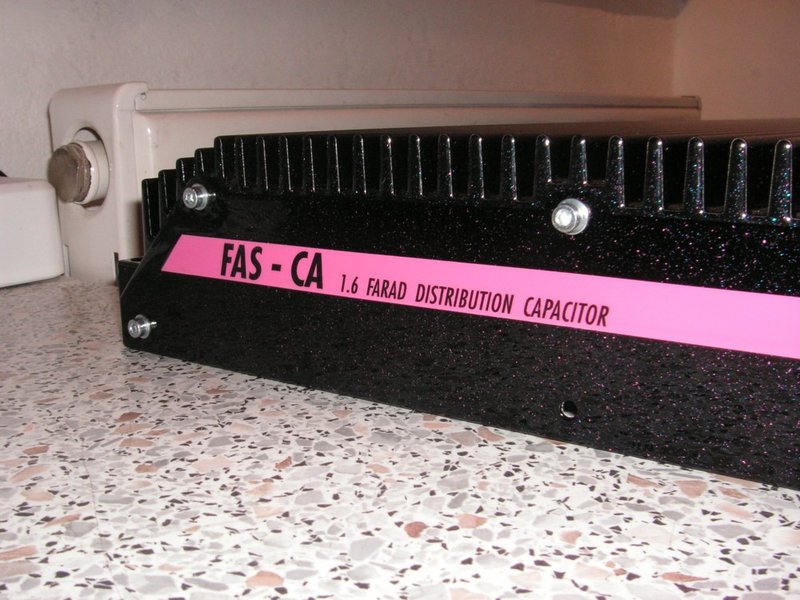

I'm on the dark background of a white man and then applied pink paint.
Finally, the label was affixed and sealed with clear lacquer.
Regards Geri

Post by **mhyde71** » Sat Jan 22, 2011 12:40 pm

huh? didnt/dont quite understand...
but its all good- looks great!

oldschoolfan · Post by **oldschoolfan** » Sat Jan 22, 2011 12:42 pm

It is beautiful. The attention to detail is incredible. Extremely fine one off project.

spiritofnorway · Post by **spiritofnorway** » Tue Jan 25, 2011 1:09 pm

Hi Guys
I would like to thank everyone who helped me with this project.
Thanks for your help.
Regards Geri

fincsher · Post by **fincsher** » Wed Jan 26, 2011 3:10 am

spiritofnorway wrote:I will not reveal everything at once ...
But it is what their own ..
But unfortunately there are still missing some parts, such as ports. There will be many more photos of the building but a little patience ..

Geri

Yeah! Good luck with it. A little more patience will have a good results.
