what bolts size/type for 2250 shroud? with pics!

marko · Post by **marko** » Mon Nov 30, 2009 11:29 am

what size are the bolts that hold the amp in place inside the shroud?

i've discovered they are not metric

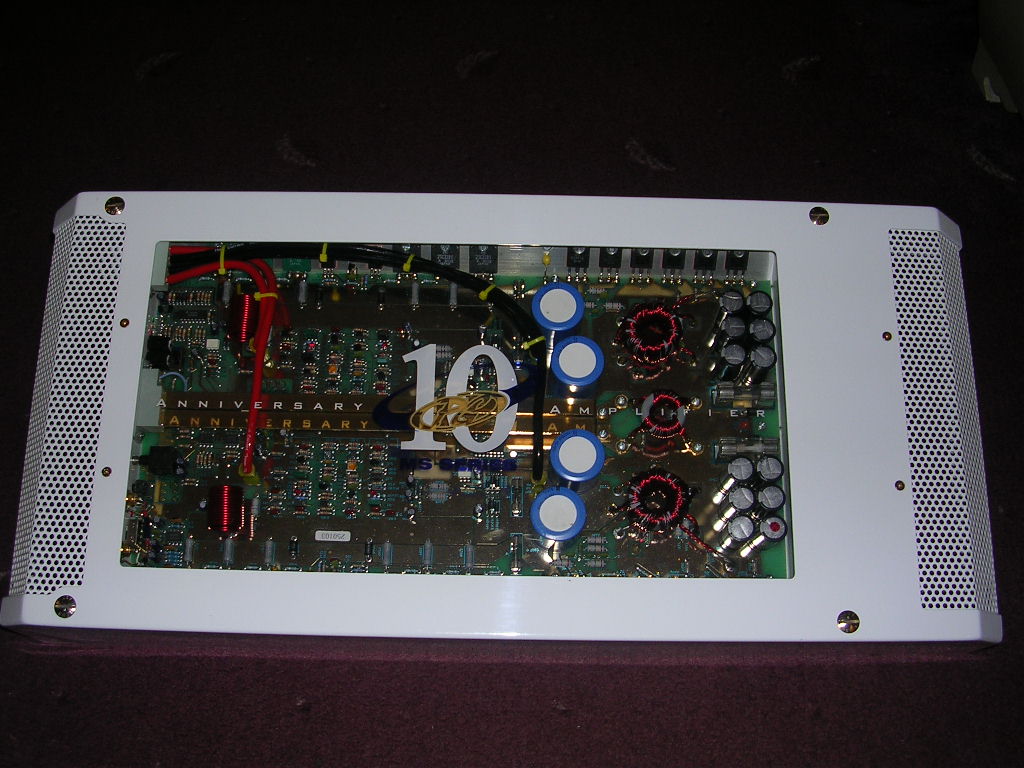

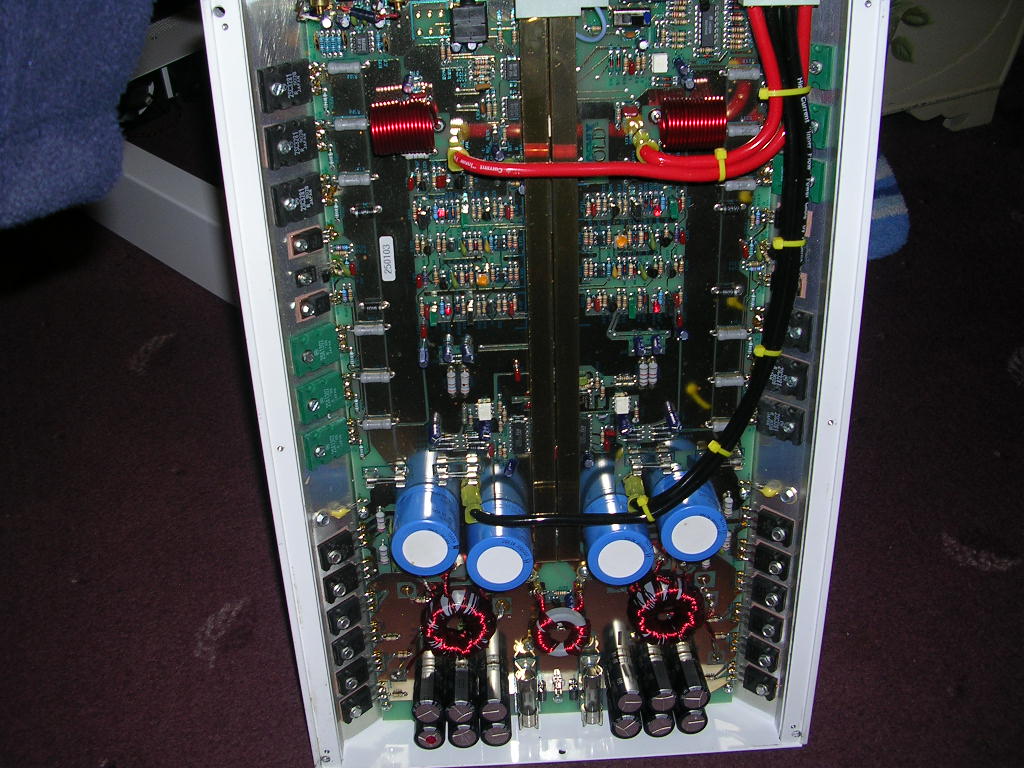

...oh, they are for this beauty

Post by **joerg** » Mon Nov 30, 2009 12:54 pm

Can´t help u on that one but pleeeeaaaasssse get a proper plexi for the amp!

marko · Post by **marko** » Mon Nov 30, 2009 1:31 pm

if one ever crops up i will, either that or i'll ask matt to custom make me one

but for now it looks rather sweet from my eyes

Post by **joerg** » Mon Nov 30, 2009 1:51 pm

I´ve got a used plexi with the circuit board layout on it if u want it. Its in decent conditon

Post by **mhyde71** » Mon Nov 30, 2009 4:29 pm

I think - could be wrong- but i think those screws that go through the board into the sink to fasten board down are 6-32, phillips pan head. I think- maybe someone can correct me on that but i am going off memory

freshkryp69 · Post by **freshkryp69** » Mon Nov 30, 2009 7:06 pm

You can find the screws you need at ace hardwear..To mount the heatsink to the frame of the shroud ur gonna want to use 10-24 machine screws. 6-32 are used to mount the circuit board to the heatsink.. And the fets and rec. Diodes etc. use 4-40 screws..I'm actually looking for a place to buy the 4-40's in stainless with a torx head. When I do ill let u guys know where.
