Building the shrouded DFAS#1-done-

Post by **joerg** » Sat Dec 19, 2009 4:19 pm

After almost 6 month it´s time to start this now. Some of u might know that a bought a brandnew MS1000TA from macgyver76 just to finally get the sink i was looking for. I sold the boards and all the other parts i didn´t need, to thunderdome. I also bought 2 rough original MS2250 and parted those out. Matt is doing the MS1000 sink and the enplates for me. He also franked the clamp down bars for the transistors for me.

I aslo managed to get a few used and not perfect shrouds. 2 of them will be refurbished and used for the two original and mint MS2250´s i have.
The third one will be cut in two halfs and extented to fit a MS1000 sink.

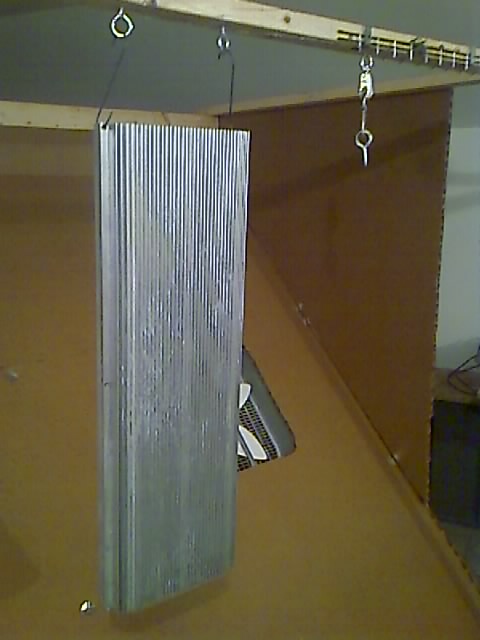

The sink is hanging in Matt´s spraybooth

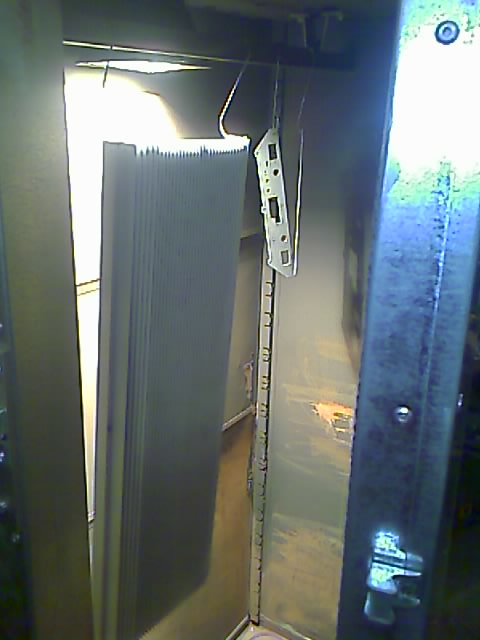

and is waiting for paint. You can see it on the first pic below. It´s short before he´ll ship it to me.

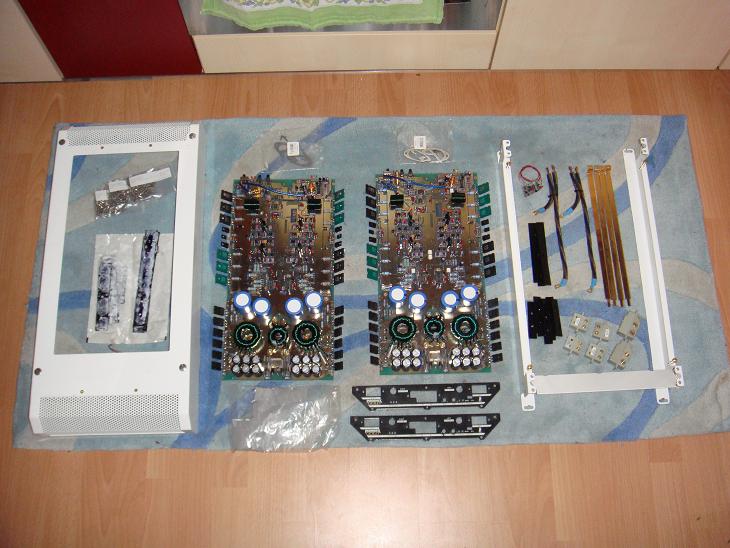

All the other parts are in austria already.Just take a look on the second pic below. I already replaced all the caps on the boards with new ones (This time i took care of the vias and followed nicos thread). I decided to go with only one control board and one set of fans in the shroud the spare conection on the other board will be used for LED lighting.

I´ll also get a bare plexi from Matt that will be fitted with a nice decal i got custom made in a shop here in austria.

Misfire · Post by **Misfire** » Sat Dec 19, 2009 7:22 pm

Gonna be a great 1 off when you get done Joerg! Keep the pictures coming!

freshkryp69 · Post by **freshkryp69** » Sat Dec 19, 2009 8:14 pm

This is the kind of work I like to see! I'm sure I speak for the majority... The shroud is gonna take a skilled tig welder no doubt, I am eager to see the final product but I really like to see the Work that done along the way to making it a reality...so take lots of pics so we can all see the effort put into this 1 off creation!! Good luck!

KUB3 · Post by **KUB3** » Sun Dec 20, 2009 1:53 am

Wow, this is going to be inspirational! Keep the pics coming

Post by **joerg** » Sun Dec 20, 2009 3:47 am

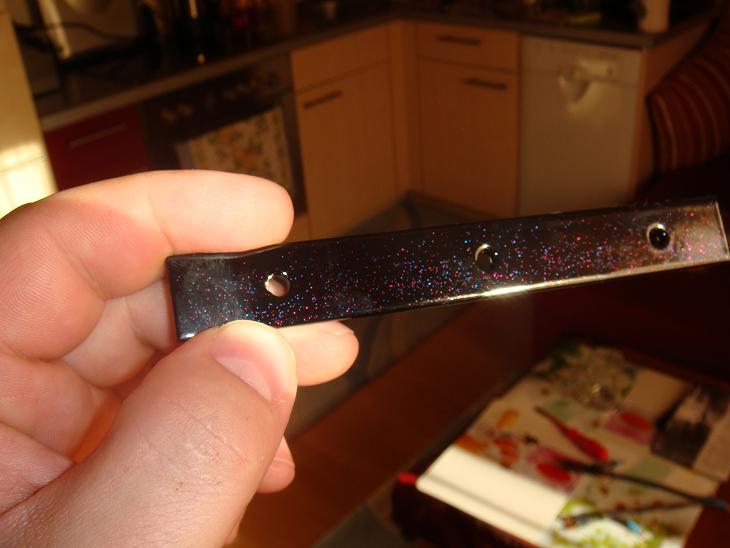

Here´s a picture of one of the clamp down bars for the transistors

Awesome work done by mhyde71

oldschoolfan · Post by **oldschoolfan** » Tue Dec 22, 2009 7:41 pm

The colors look perfect in that pic.

k2f-gold · Post by **k2f-gold** » Tue Dec 22, 2009 8:16 pm

Looking forward for more pics... more pircs..

Pedi · Post by **Pedi** » Wed Dec 23, 2009 8:27 am

I loooooove custom pieces...

Post by **ttocs** » Wed Dec 23, 2009 2:54 pm

the colors are, like, whooaaa

.................................

Post by **mhyde71** » Wed Dec 23, 2009 4:33 pm

like whoa
just listening to that last night- funny

nico boom · Post by **nico boom** » Thu Dec 24, 2009 12:52 pm

Awesome... both your work and Matt's.
Love to see the progress on this!

Misfire · Post by **Misfire** » Thu Dec 24, 2009 1:08 pm

Dam, Matt has that color down perfectly!

HoseHead · Post by **HoseHead** » Thu Dec 24, 2009 1:21 pm

I gotta boner....

HH

Post by **joerg** » Sun Dec 27, 2009 3:11 pm

Just got a little update from Matt! The sink and the endplates are in the oven after he precoated them!

Post by **joerg** » Fri Jan 01, 2010 9:04 am

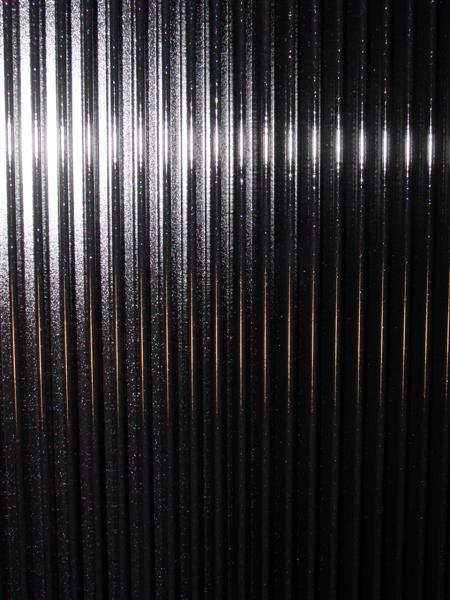

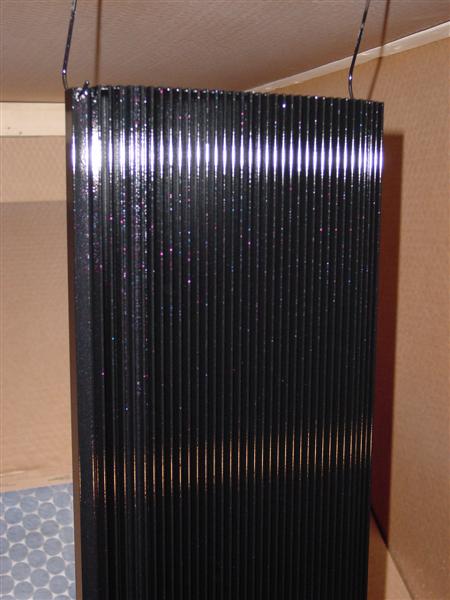

The sink is done!!!

Post by **Rold Gold** » Fri Jan 01, 2010 9:19 am

sweet.................

Pedi · Post by **Pedi** » Fri Jan 01, 2010 9:59 am

Lovely.... Just lovely....

nico boom · Post by **nico boom** » Fri Jan 01, 2010 12:36 pm

Like with any special amp... no pics can really do it justice; wait till you see it in person, you'll be blown away by it ,I'm sure Joerg!
WAY TO GO MATT; you're the king of powdercoating here!

KUB3 · Post by **KUB3** » Fri Jan 01, 2010 1:08 pm

Yuk! You should have left it white.

Only joking, looking very cool

Misfire · Post by **Misfire** » Fri Jan 01, 2010 1:29 pm

That is awesome. You will have a killer amp when you and Matt are finished. Be Proud, maybe PG will learn from this thread!!!

Post by **ttocs** » Fri Jan 01, 2010 2:07 pm

ITS LIKE, WHOA.......... THE COLORS........

nico boom · Post by **nico boom** » Sat Jan 02, 2010 1:29 am

ttocs wrote:ITS LIKE, WHOA.......... THE COLORS........

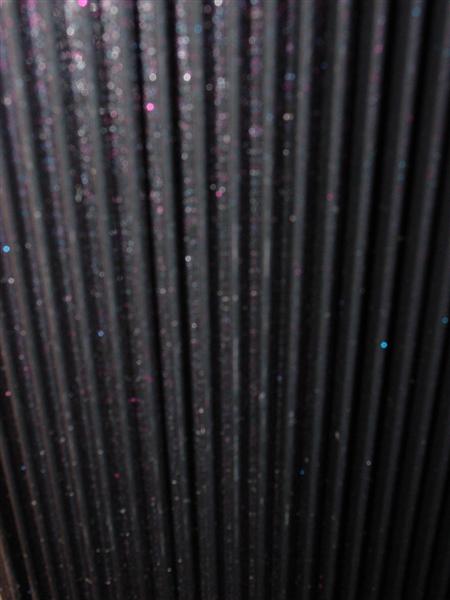

I know the flake-paint doesn't really show on pics; only when you hold it in bright daylight, or even better direct sunlight, it just GLOWS....

..very special!

It is important to be carefull when handling gear with this colour; it shows scratches more easily than basic colours; JOERG buy yourself a pair of soft linnen gloves, and remove any rings you may wear, while working on it.....

Post by **mhyde71** » Sat Jan 02, 2010 5:25 am

ABSOLUTELY CORRECT...

grab some nitril gloves or vinyl surgeons gloves when handling...

thats hat i do in shop. I try to make it a "company policy" to not touch the parts with bare hands as soon as i de-grease them, all the way through the entire process until the customer touches them with their own hands.
I would hate to leave like smudges or finger prints on something for someone that they are picking up. AND that is just the same if i am shipping it. I will not touch it with bare hands all the way through process and right into box it's getting shipped in... UNLESS there is some reaon that prevents me from doing so.

BUT you guys are also correct that the pics really do not do it justice... In sun or the proper lighting it sparkles right up with those metal flakes.

Post by **ttocs** » Sat Jan 02, 2010 6:00 am

ttocs wrote:ITS LIKE, WHOA.......... THE COLORS........

LOOK AT ALL OF THEM IN THE 4FT OF HEATSINK TOO!

Post by **mhyde71** » Sat Jan 02, 2010 6:24 am

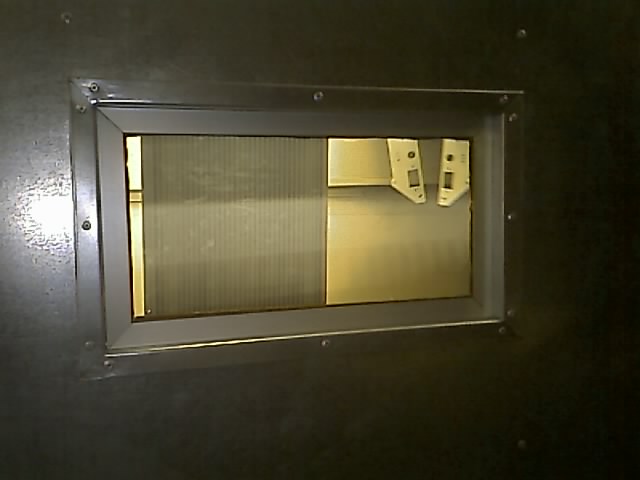

there should be better pic's on my other camera,... but camera broke (dropped in by the oven trying to take a pic of stuff haning and keeping door closed

) - but/and cant get pic's off camera/card (no card reader), but did buy a new camera (very same sd1000 by canon) and should be here shortly-

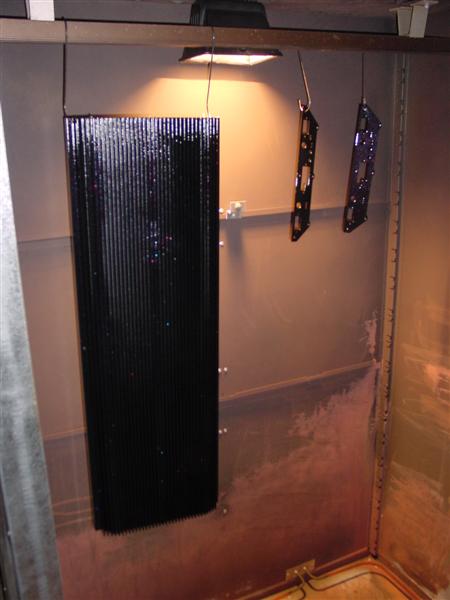

maybe they'll be some better pic's of sink and plates b/c i took those pics in the house i think. we'll see when it comes in and I can get those pics off. BUT yeah you can see some flake in the sink on one of those pic's...

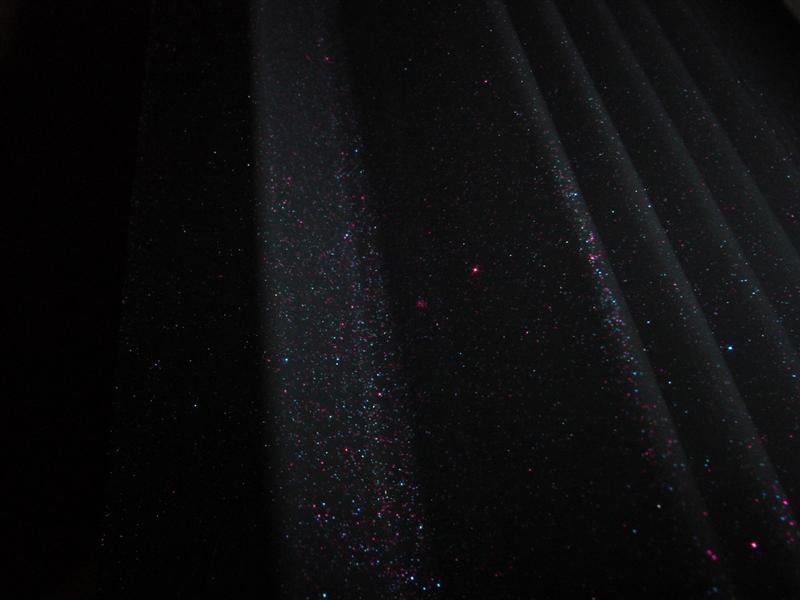

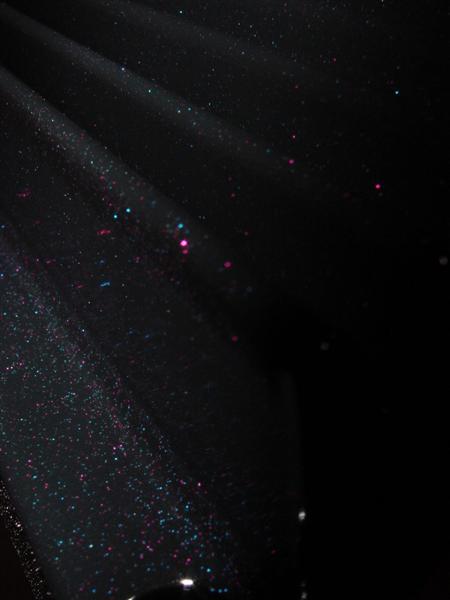

edit- found some more and not sure i sent to you joerg or not.. but maybe the flake will show or does show a lil better with these here:
