well! im goin for it...... i droped off the sink to get the powder coatin off. tomorrow im picking it up and dropin it off to the nickel shop. i bought a mps2500 and it came with extra end plates so im usin them in this project. i only have one board to put in there at the time, but i will be on the search for another one that matches. i will be postin picts as i go. i have to go with the shroud on it as well. this is goin to be the amp i put into the wall to run my house.
-
mhyde71
- Dr. Jekyll
- Posts: 6231
- Joined: Sun Jan 20, 2008 8:34 pm
- Location: PG FanBoy in Green Mtn Vermont
- Contact:
be sure to tell the coating shop that is doing the stripping to prep it properly for nickel plating...
it really shouldnt be just blasted with AO 80-120G- it really should have a 120G Glass bead blast.
Things i learned while in the process of getting pedis surfboard plated is that 1) you will not get the same nickel finish as you have on the other (1st) one becasue of the fact that it is getting blasted or stripped or whatever-
UNLESS they are doing it chemically- but even still with chemicals and given it is aluminum (which is what hard lesson i have learned- ruined a 275 sink) is that aluminum can not stay in the stripping chemicals for too long- hence it being an full PIA to strip powder off the deep recesses of the fins... b/c it needs to stay in for x amount to pull powder off- but cant stay in so long b/c it is aluminum- (NOW this is of course with my stripper, and may not be the same with every body else's stripper) BUT the bottom line is and was told that no matter what- stripping powder and then nickel plating will not give you the same look as freshly extruded aluminum plated-
We'll see whence i get the surfboard back from it's plating job... BUT was told by the plater that i need to get the smoothest possible blast on earth (glass bead 120G) on it for it to be as close to orig as possible- and still will not be quite as bright as the original...
BUT we'll see-
subscribed anyways now
it really shouldnt be just blasted with AO 80-120G- it really should have a 120G Glass bead blast.
Things i learned while in the process of getting pedis surfboard plated is that 1) you will not get the same nickel finish as you have on the other (1st) one becasue of the fact that it is getting blasted or stripped or whatever-
UNLESS they are doing it chemically- but even still with chemicals and given it is aluminum (which is what hard lesson i have learned- ruined a 275 sink) is that aluminum can not stay in the stripping chemicals for too long- hence it being an full PIA to strip powder off the deep recesses of the fins... b/c it needs to stay in for x amount to pull powder off- but cant stay in so long b/c it is aluminum- (NOW this is of course with my stripper, and may not be the same with every body else's stripper) BUT the bottom line is and was told that no matter what- stripping powder and then nickel plating will not give you the same look as freshly extruded aluminum plated-
We'll see whence i get the surfboard back from it's plating job... BUT was told by the plater that i need to get the smoothest possible blast on earth (glass bead 120G) on it for it to be as close to orig as possible- and still will not be quite as bright as the original...
BUT we'll see-
subscribed anyways now
PAST WORK/S HERE::
https://www.facebook.com/KhameleonKoatings/photos_albums
https://www.facebook.com/KhameleonKoatings/photos_albums
-
davewaibel
- Posts: 532
- Joined: Tue Apr 21, 2009 6:34 am
also make sure that it is regular not electroless nickel- regular nickel is brighter but prone to 'shading', where are electroless nickel throws good into recesses- if it were me, I would do both, they are not going to really charge you much more to do it- that way, when the bright nickel shades, the electroless nickel will hide the shading- if you do not know what I am talking about shading, look at something that has been plated, and look at an area around a hole or in a crouch, ie right angle, the nickel will be stained yellow there
-
davewaibel
- Posts: 532
- Joined: Tue Apr 21, 2009 6:34 am
they are likely to throw copper on it first, then nickel, then gold- talk to your plater and see what he has available- I would think he would want to hit it with electroless nickel, for better coverage- before the gold tank- let us know what it actually cost to gold plate the heat sink- with todays prices not sure what it would cost-

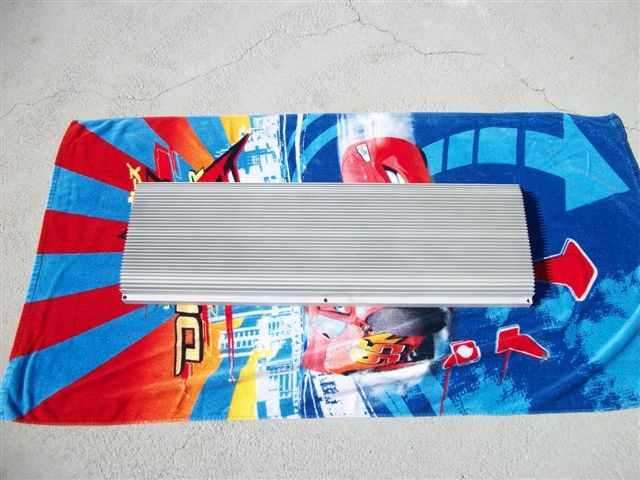

i picked the sink up today. he did it with 100 bead and laughed at me when i asked about 80-120 bead.. this is a good guy, but he still missed a little at the bottom. im gona take it back and get it touched up. heres a picture of the sink... the next one will be nickel.....
- Attachments
-
- phoenixamp.JPG (182.43 KiB) Viewed 11517 times
-
mhyde71
- Dr. Jekyll
- Posts: 6231
- Joined: Sun Jan 20, 2008 8:34 pm
- Location: PG FanBoy in Green Mtn Vermont
- Contact:
im confused... why did he laugh at you when you asked him to blast with 80 thru 120G glass bead? when it turns out that is exactly what he did - he used 100G-JK wrote:i picked the sink up today. he did it with 100 bead and laughed at me when i asked about 80-120 bead.. this is a good guy, but he still missed a little at the bottom. im gona take it back and get it touched up. heres a picture of the sink... the next one will be nickel.....
did you ask to use "80/120 Grit glass bead"
OR did you ask him to use anything between 80 grit and 120 Grit glass bead? b/c that was what that meant when i wrote 80-120G
mean anything from 80 to 120 grit would be receomended...
Im confused as to why he would think that was funny- when thats exactly what he did- he used 100G (smack dab in middle of 80-120G??
im curious as to what he found funny about that!??! did he say what was funny about that??
PAST WORK/S HERE::
https://www.facebook.com/KhameleonKoatings/photos_albums
https://www.facebook.com/KhameleonKoatings/photos_albums
some ppl dont like others that dont know as much(not implying you dont know as much cuz i dont know shit about what you guys are talking about myself) telling them how to do a job they do day in and day out ....my guess at what the giggle was aboutmhyde71 wrote:im confused... why did he laugh at you when you asked him to blast with 80 thru 120G glass bead? when it turns out that is exactly what he did - he used 100G-JK wrote:i picked the sink up today. he did it with 100 bead and laughed at me when i asked about 80-120 bead.. this is a good guy, but he still missed a little at the bottom. im gona take it back and get it touched up. heres a picture of the sink... the next one will be nickel.....
did you ask to use "80/120 Grit glass bead"
OR did you ask him to use anything between 80 grit and 120 Grit glass bead? b/c that was what that meant when i wrote 80-120G
mean anything from 80 to 120 grit would be receomended...
Im confused as to why he would think that was funny- when thats exactly what he did- he used 100G (smack dab in middle of 80-120G??
im curious as to what he found funny about that!??! did he say what was funny about that??
Last edited by tonym on Wed Oct 06, 2010 8:55 pm, edited 1 time in total.
i tried to post them and cant...i got a new camera and for some reason when i try to post the pictures it keeps saying to big. when i go to try to make it smaller. i cant! thats a big reason i dont post picts.. even before the new camera i had to get jen to email them to her email then the picture could be made smaller the saved. it seems like a mission everytime i try to post a pict...
i was just lookin at the picts of what was done and i cant belive that they even handed it to me looking like that... i dont even want to go there and deal with them on this matter.
i need to figure out something with this one... i dont even want to look at it.
i was just lookin at the picts of what was done and i cant belive that they even handed it to me looking like that... i dont even want to go there and deal with them on this matter.
i need to figure out something with this one... i dont even want to look at it.
