RSD IC pads

[Drock]

I took my RSD 1200.1 apart and lost one of the little clear pads that go between the IC and heat sink. ( not sure what the proper name for this is)Does any one have these or an old dead amp for parts?

[ttocs]

sil-pad. Sorry I am out.

[Drock]

To bad. Thanks though. Maybe someone else has some.
What exactly is the purpose of the sil-pads? Is it an insulator or a conductor? It's the first time I took a good amp apart and had to put it back together. I thought I had everything accounted for but I guess not. Now I'm not wanting to power it up to try it out.

[ttocs]

they often get stuck to the back of a transistor or two check them out to make sure they are not sticking to them.

[shawn k]

I'm assuming it's for a transistor?

Shoot me a good close up pic so I can determine the size of sil-pad you need. I can either send you a couple if I have the correct size, or at least point you in the right direction to purchase some.

[Drock]

I'm assuming it's for a transistor?

Shoot me a good close up pic so I can determine the size of sil-pad you need. I can either send you a couple if I have the correct size, or at least point you in the right direction to purchase some.

thanks Shawn. I'll open it up and take some pics in a bit.

[Drock]

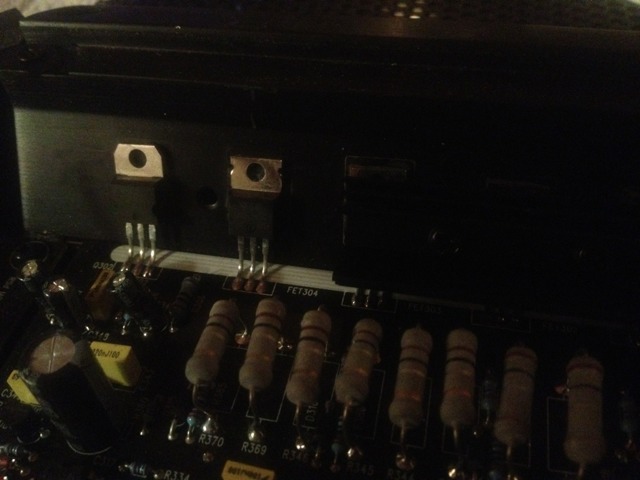

Here are the pics.



They look like they are about 1/2" x 3/4"

[shawn k]

They appear to be TO220 casings. I can send you a couple. Shoot me your address in a pm.
