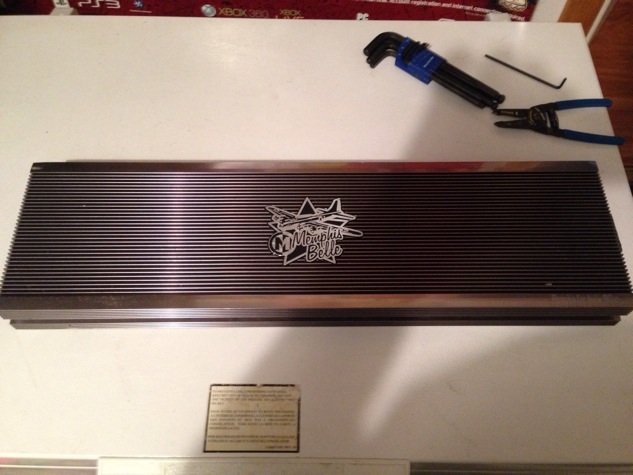

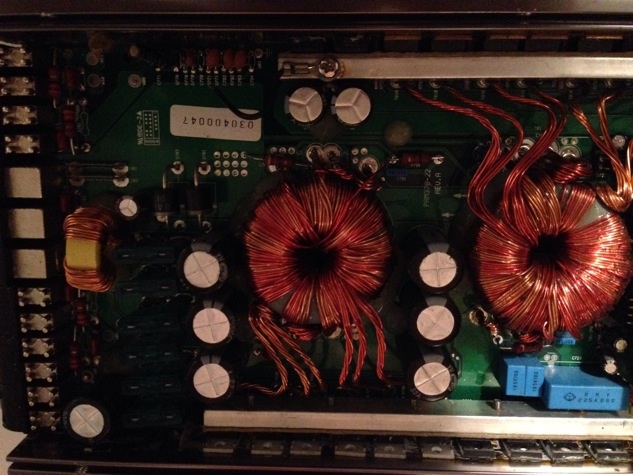

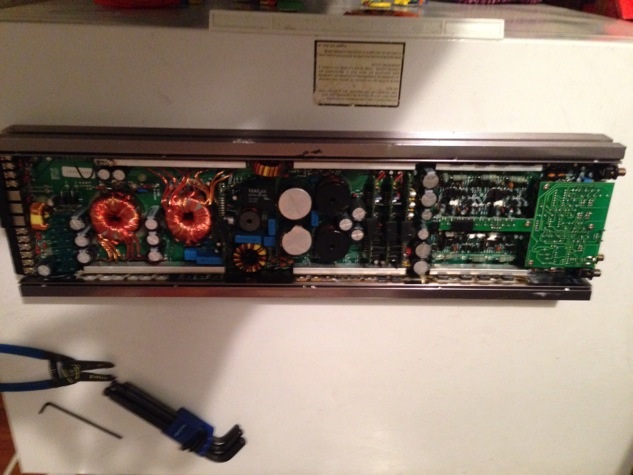

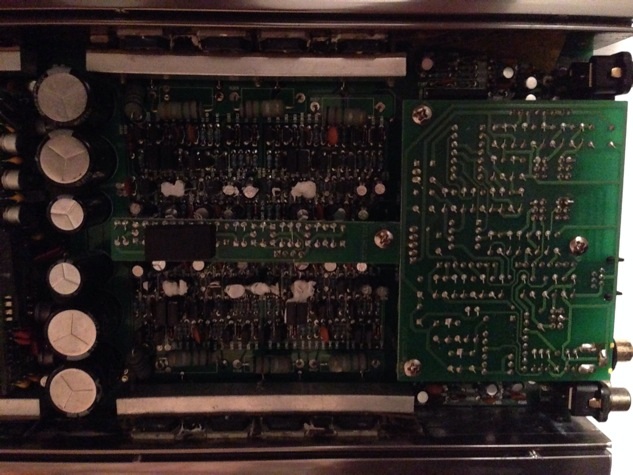

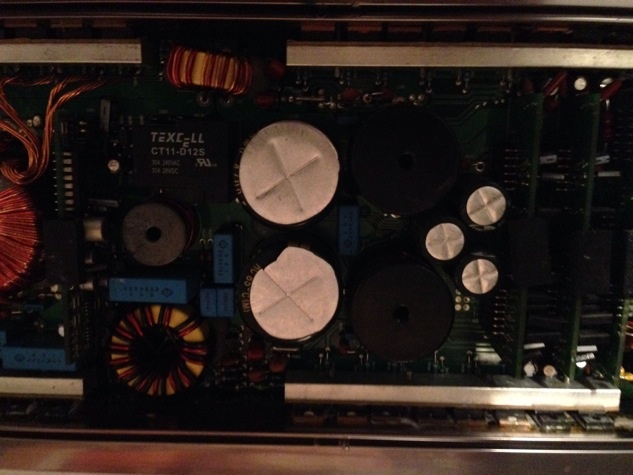

Recently picked up a memphis belle mc1300d(the "big" belle). Amp lights up and then cycles in and out of protect. I think it's when the class d side powers up. Board looks good but haven't taken it all the way out yet. I remember the old memphis gear being pretty good stuff. I'll update progress as I go along. Any thoughts on the old memphis gear?
- Attachments
-
- image.jpg (77.2 KiB) Viewed 2819 times
-
- image.jpg (84.43 KiB) Viewed 2819 times
-
- image.jpg (110.11 KiB) Viewed 2819 times
-
- image.jpg (83.56 KiB) Viewed 2819 times
-
- image.jpg (106.72 KiB) Viewed 2819 times
2008 toy tundra
Kenwood dnx-9980hd
Hertz hi energy 3-way
Hertz hi energy coax
M50 ser# M500001
M25 ser#M2500001
Outlaw x3
Bandit x4
Route 66 x2
M100x3
M44x2
M50 x4
M25 x5
Powercore 15
Ti Basscube
And other goodies
Kenwood dnx-9980hd
Hertz hi energy 3-way
Hertz hi energy coax
M50 ser# M500001
M25 ser#M2500001
Outlaw x3
Bandit x4
Route 66 x2
M100x3
M44x2
M50 x4
M25 x5
Powercore 15
Ti Basscube
And other goodies
Re: Non pg amp resto project
It's tough to tell from the lighting in the picture. Check the theme sensors, there's usually at least one that's attached to the heat sink. It might be bad or have a loose lead which is causing the issue. It also could be something in the power supply. Make sure that all gate resistors are good. If anything has been tampered with I'd start there.
A few of these and a few of those.
Creator of www.phoenixgoldregistry.com
hit me up to add your limited edition amps.
Creator of www.phoenixgoldregistry.com
hit me up to add your limited edition amps.
Re: Non pg amp resto project
You've checked that none of the outputs are shorted?
Sent from my iPad using Tapatalk
Sent from my iPad using Tapatalk
Re: Non pg amp resto project
Beautiful looking amp! Good luck on the restoration!
