vwdude · Post by **vwdude** » Thu Jul 24, 2014 1:14 pm

So this just arrived and I'm trying to figure out what "number" it is. I don't see an original serial number unless the one I see is it...

Btw I know it's not the original box, but that is the way to ship an amp...

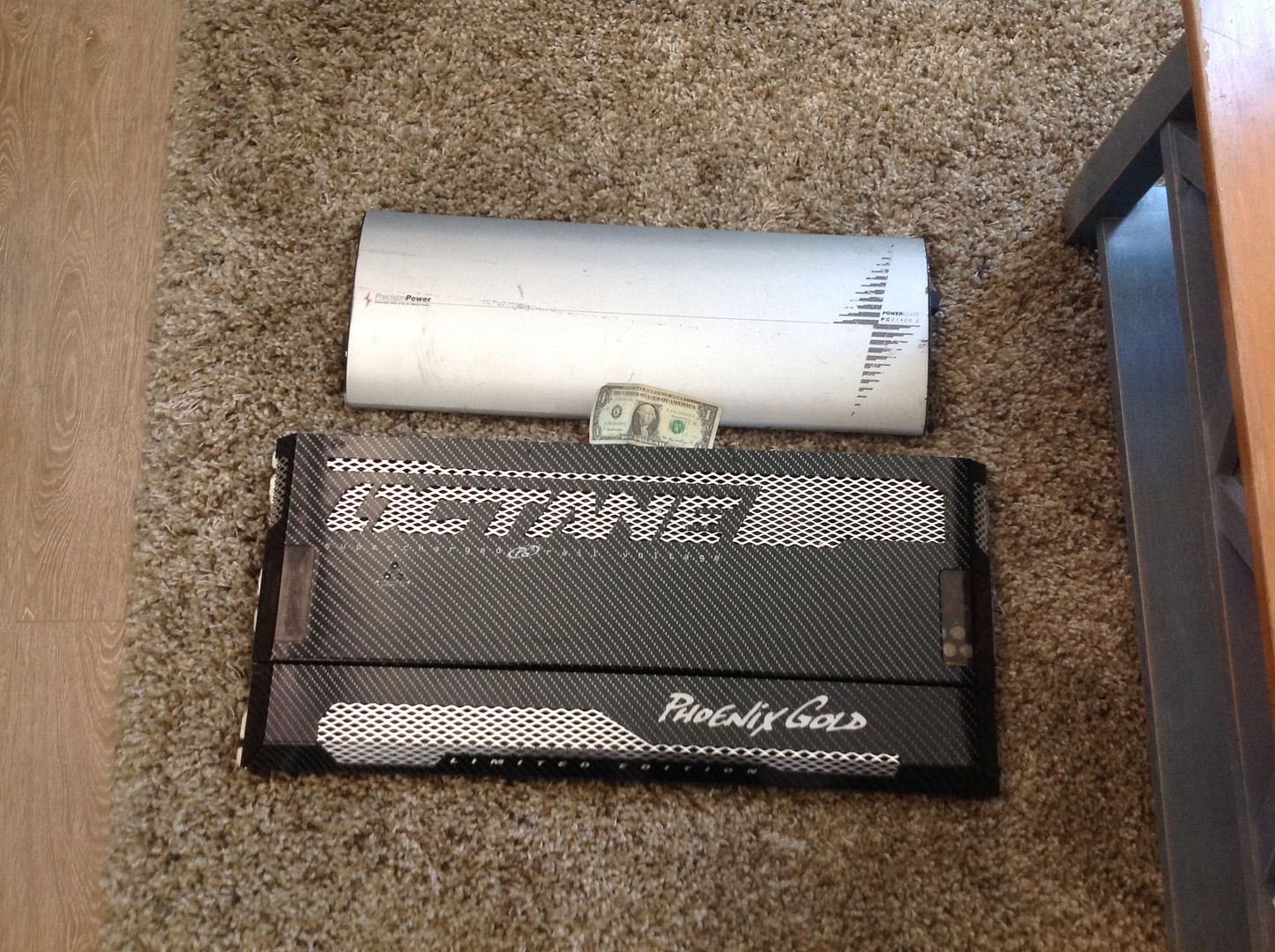

I didn't realize how big this thing is... That other amp is a behemoth 2' long ppi amp

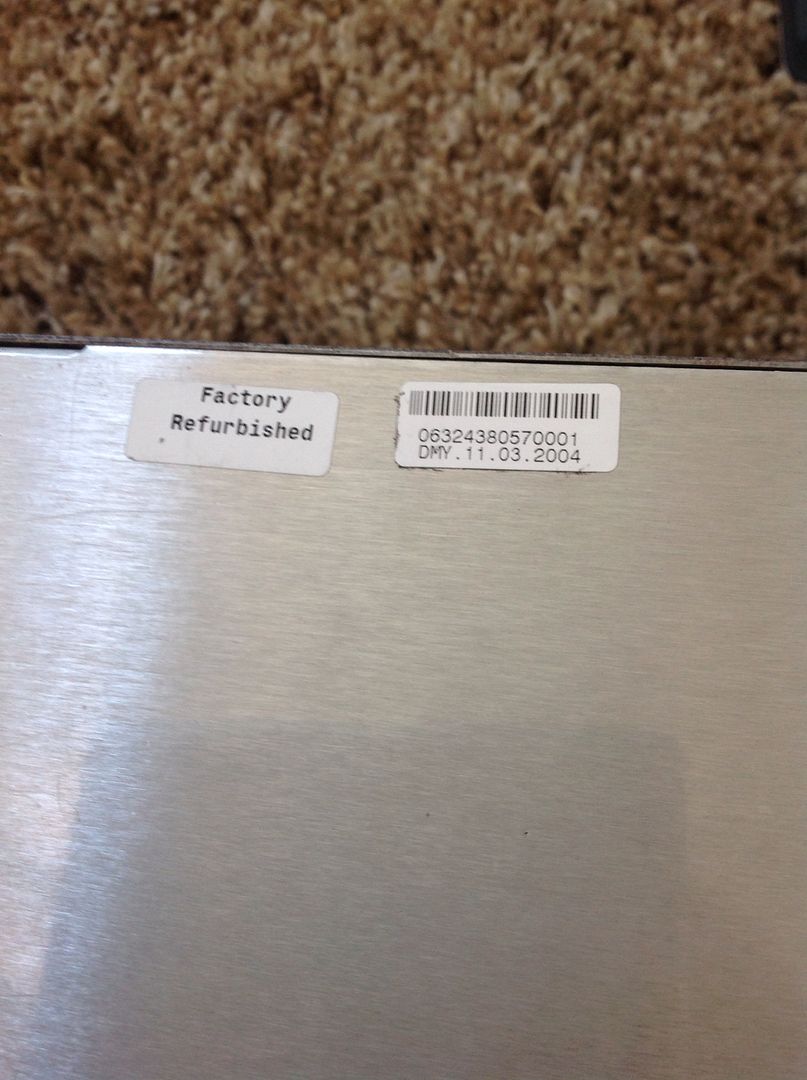

And the serial number...

vwdude · Post by **vwdude** » Thu Jul 24, 2014 2:00 pm

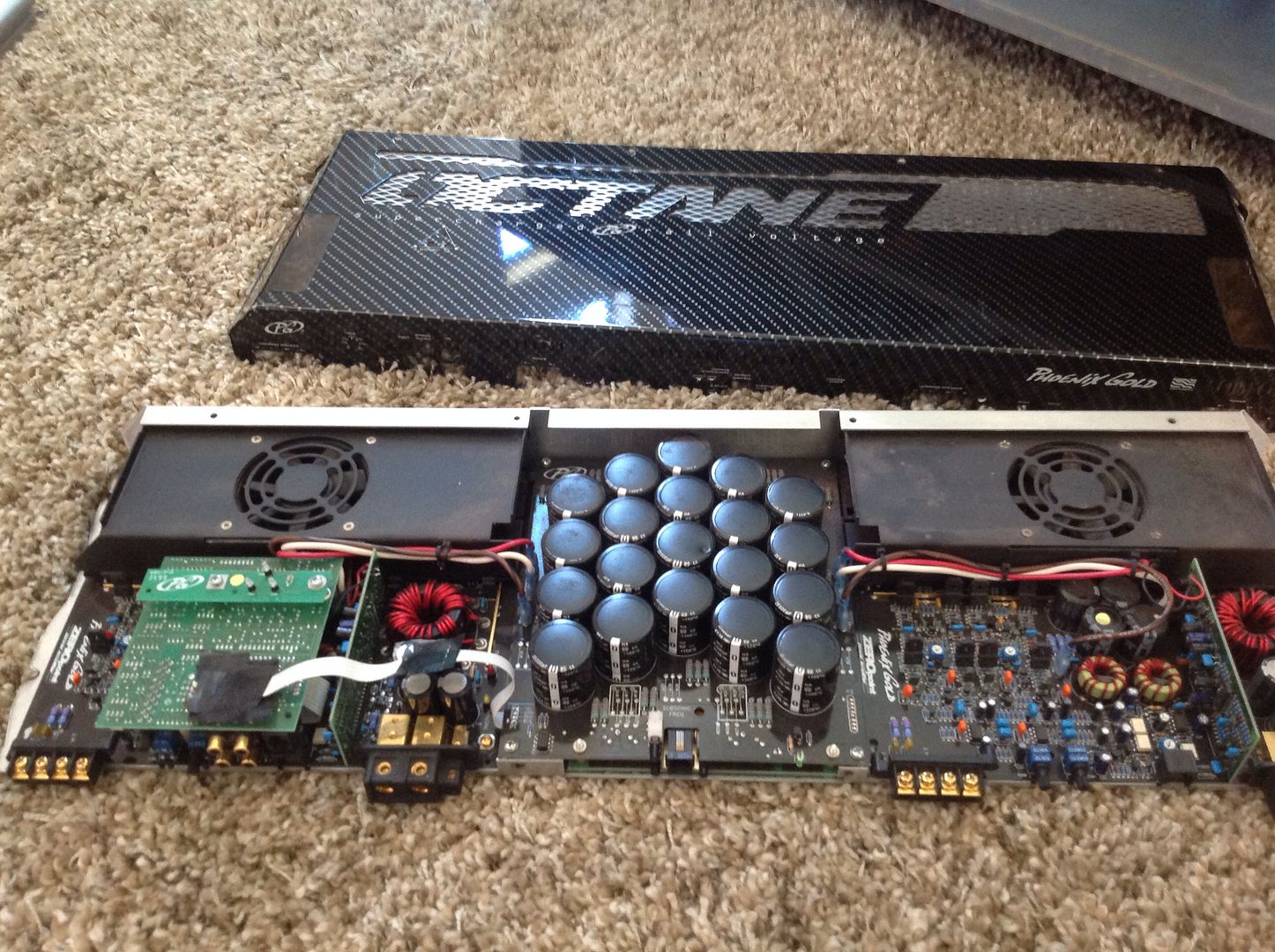

Here's some internal pictures...

Post by **ttocs** » Thu Jul 24, 2014 2:03 pm

didn't know they refurbed le amps. I thought the #was on the sticker next to the serial number.

Weaklink · Post by **Weaklink** » Thu Jul 24, 2014 3:28 pm

Glad you liked the box. Last thing I wanted was for it to get damaged. It's a beast of an amp. Hope you enjoy it.

Post by **AVICJR** » Thu Jul 24, 2014 3:34 pm

Sweet amp!

Post by **kg1961** » Thu Jul 24, 2014 3:53 pm

It was the first one that day
I know there was a code but I don't know
It very nice amp I almost got one this week but didn't happen

vwdude · Post by **vwdude** » Thu Jul 24, 2014 4:00 pm

Weaklink wrote:Glad you liked the box. Last thing I wanted was for it to get damaged. It's a beast of an amp. Hope you enjoy it.

Oh yea I really like e box. I'm probably going to take the concept and run with it. I think I'll line thin side wth soundproof foam and maybe decorate the outside of the box a little.

I'll do more research to figure out the deal with the amp.

Mr. Wild · Post by **Mr. Wild** » Thu Jul 24, 2014 8:50 pm

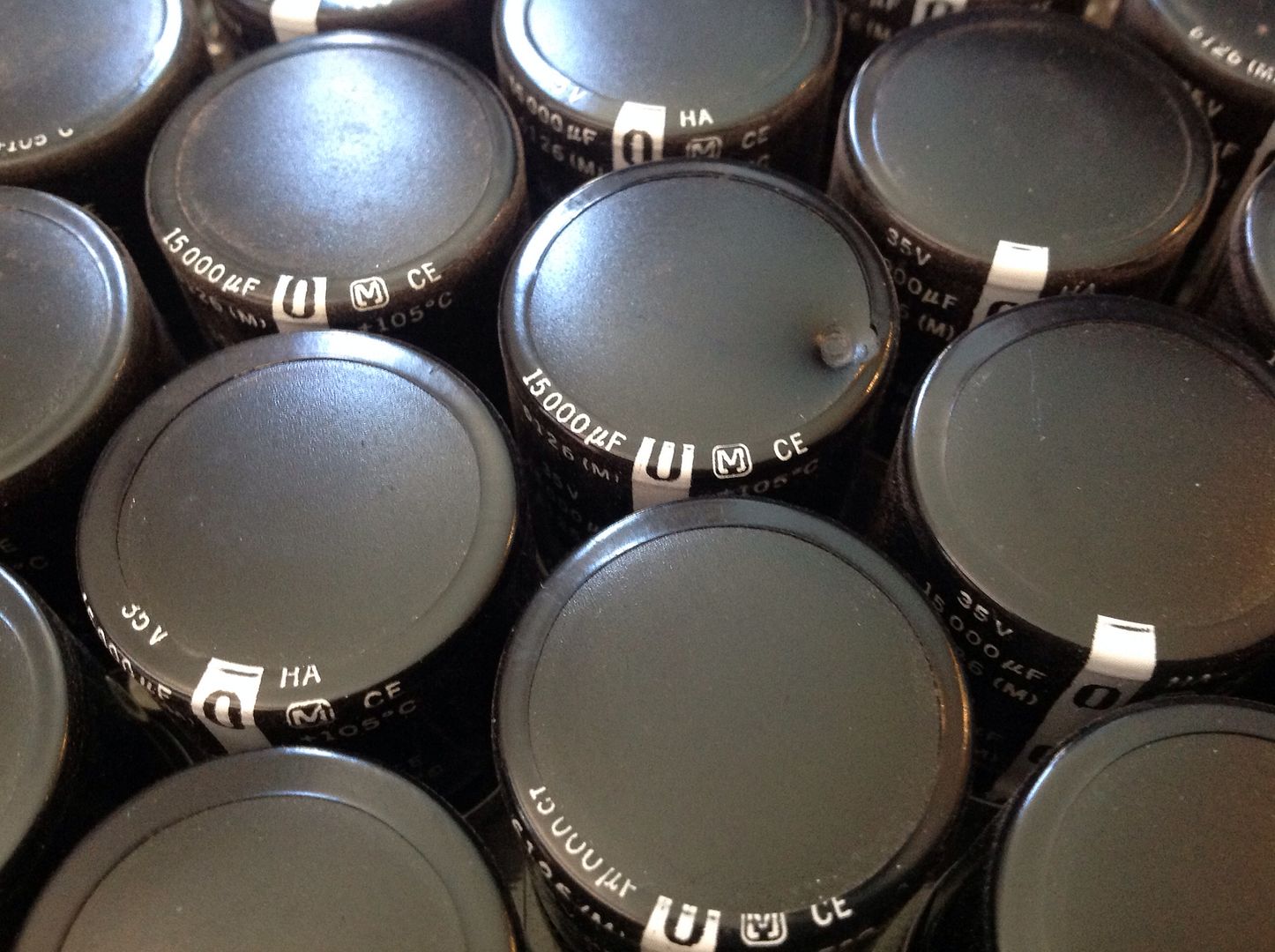

Are those extra rail caps in the middle? The wiring suggests they are.

trickyricky · Post by **trickyricky** » Thu Jul 24, 2014 9:31 pm

Mr. Wild wrote:Are those extra rail caps in the middle? The wiring suggests they are.

It sure is...where have you been? Thats a shit load of it too if you ask me....

trickyricky · Post by **trickyricky** » Thu Jul 24, 2014 9:32 pm

trickyricky wrote:
Mr. Wild wrote:Are those extra rail caps in the middle? The wiring suggests they are.

It sure is...where have you been? Thats a shit load of it too if you ask me...an extra 300,000uf for rails.

vwdude · Post by **vwdude** » Thu Jul 24, 2014 9:35 pm

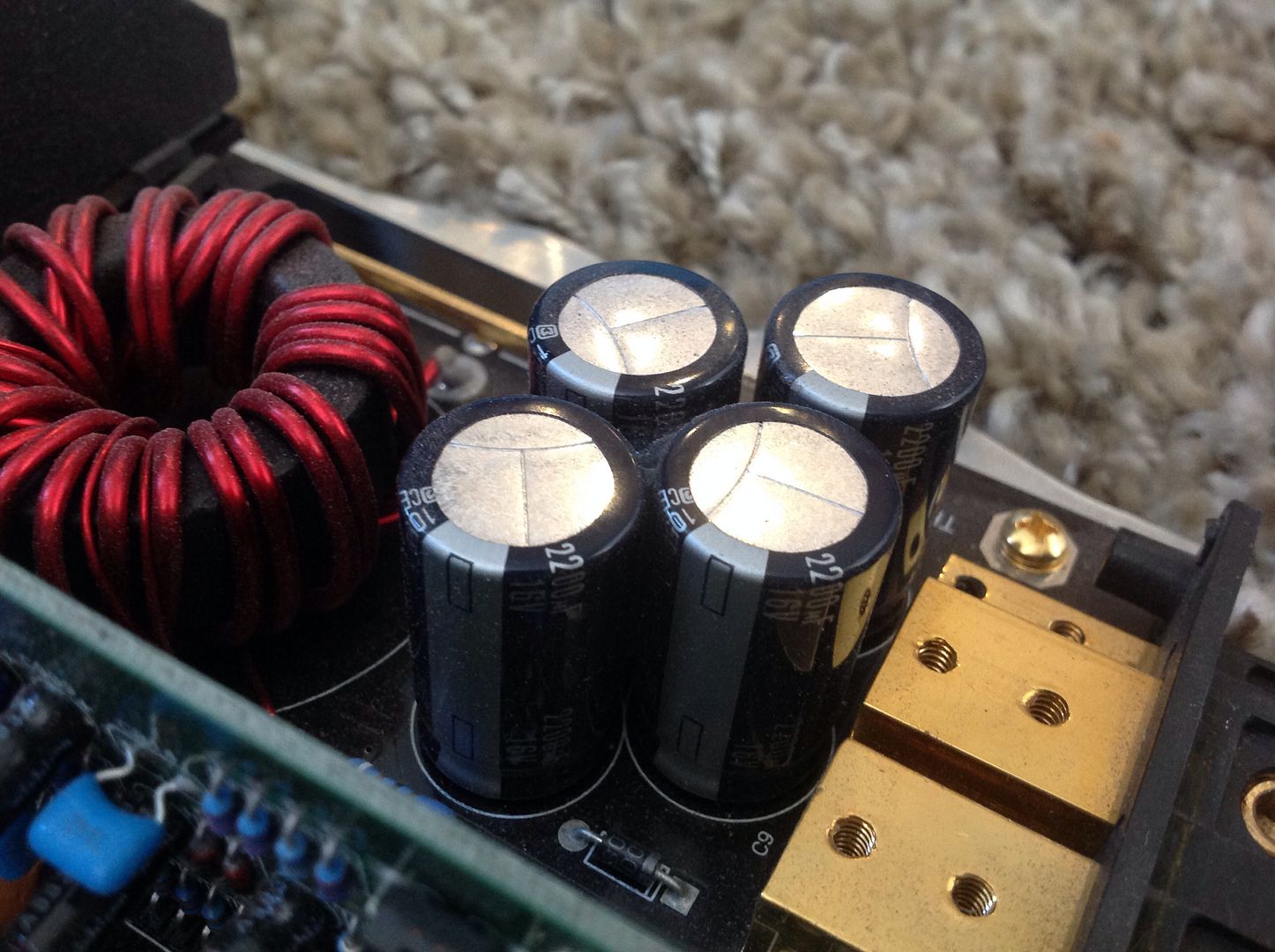

That's how these amps came. I think it's something like the ti powercore with a basscube under it. Cool amp for sure. I know that the early ones had blue caps that were faulty but I understand that the black ones were ok. Also the ps caps look to be other than HFZ series (those were dark blue with gold stripes) so they are probably ok too.

I'll test the amp after I move but it will likely get displayed along side my ZPA amps and crossovers/processors.

zeropoint0.5 · Post by **zeropoint0.5** » Fri Jul 25, 2014 2:36 am

I would replace the 8 ps caps to be sure.....i wouldn't trust those....

wasn't this amp 2 zx400ti, basscube and ti powercore all in one ??

Post by **kg1961** » Fri Jul 25, 2014 4:15 am

I to thought it was a powercore but its not
Wrong style of caps and look at the sub side of the amp.
It kinda of a waste heck thunderdome popped some of them and the amp kept working you could remove all but 2 and get the same thing
