xs amps recap

Need help with your car stereo system? Have a technical question? Post here.
Post Reply
audi6
Posts: 16
Joined: Sat Jan 18, 2014 6:56 am

xs amps recap

Post by audi6 »

Hi
Sorry if this has been answered somewhere else but i cant seem to find a def answer, i have a chance to buy a couple of xs4600 quite cheap ( person had them running in his car with no problems ) but i am wondering do these suffer from the same cap problems as the other pg amps.

Thanks
Top
User avatar
Eric D
Short Bus Driver
Posts: 4259
Joined: Sat Dec 30, 2006 8:50 am

Re: xs amps recap

Post by Eric D »

If you post a photo of the circuit board, we can tell you. There are several amps around that age which do not require a cap change. There are also some amps which do if they have certain caps, and don't if they have others.
Got "schooled" by member shawn k on May 10th, 2011...
No longer really "in tune" with the audio industry, and probably have not been for some time.
Hands down the forum's most ignorant member...
Don't even know what Ohm's law is...
Top
audi6
Posts: 16
Joined: Sat Jan 18, 2014 6:56 am

Re: xs amps recap

Post by audi6 »

Lovely thank you sir, i will get some pica in a little while

Many thanks
Top
audi6
Posts: 16
Joined: Sat Jan 18, 2014 6:56 am

Re: xs amps recap

Post by audi6 »

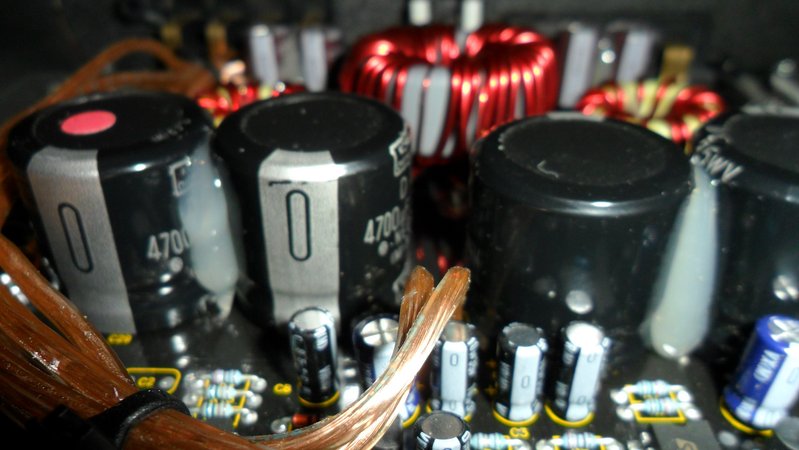

This is the xs2300
Attachments
Top
audi6
Posts: 16
Joined: Sat Jan 18, 2014 6:56 am

Re: xs amps recap

Post by audi6 »

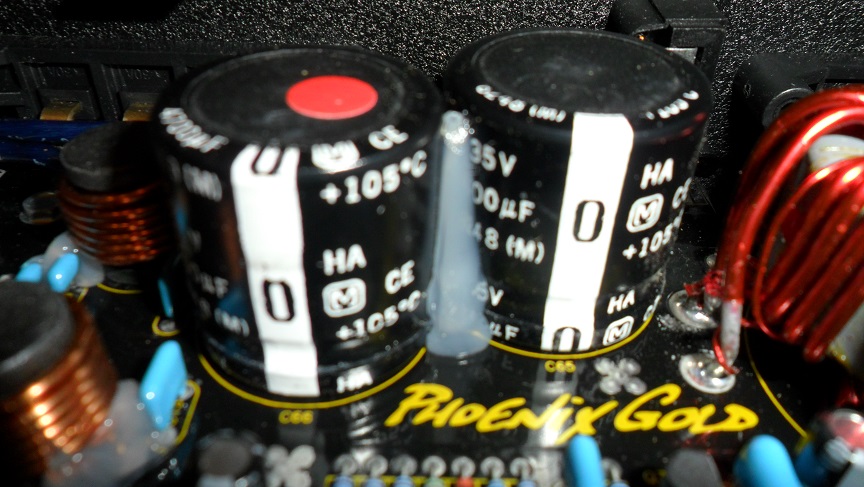

xs4600
Attachments
Top
audi6
Posts: 16
Joined: Sat Jan 18, 2014 6:56 am

Re: xs amps recap

Post by audi6 »

xs4600
Attachments
Top
User avatar
Eric D
Short Bus Driver
Posts: 4259
Joined: Sat Dec 30, 2006 8:50 am

Re: xs amps recap

Post by Eric D »

Please take some photos of the caps (smaller ones) near the power input terminals of the amplifier.
Got "schooled" by member shawn k on May 10th, 2011...
No longer really "in tune" with the audio industry, and probably have not been for some time.
Hands down the forum's most ignorant member...
Don't even know what Ohm's law is...
Top
audi6
Posts: 16
Joined: Sat Jan 18, 2014 6:56 am

Re: xs amps recap

Post by audi6 »

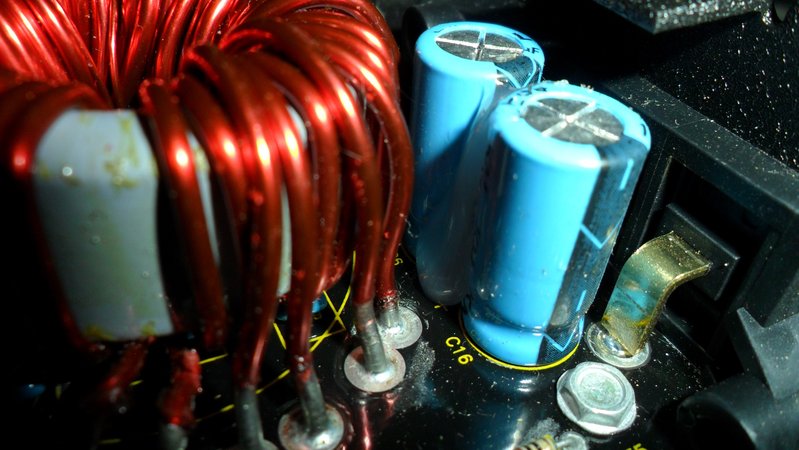

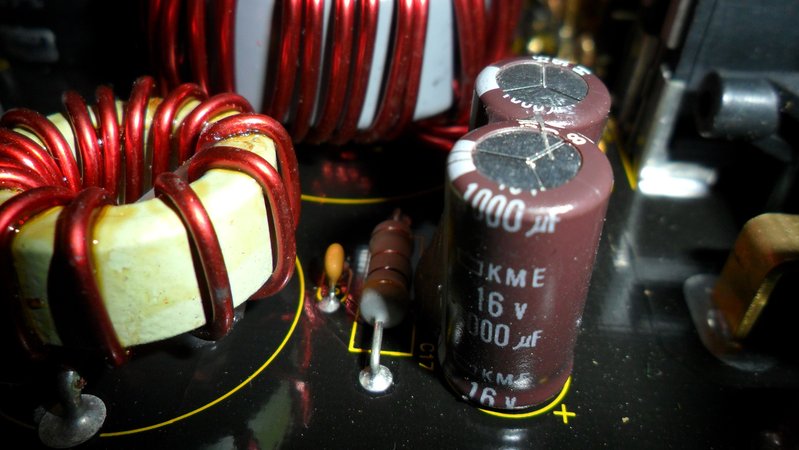

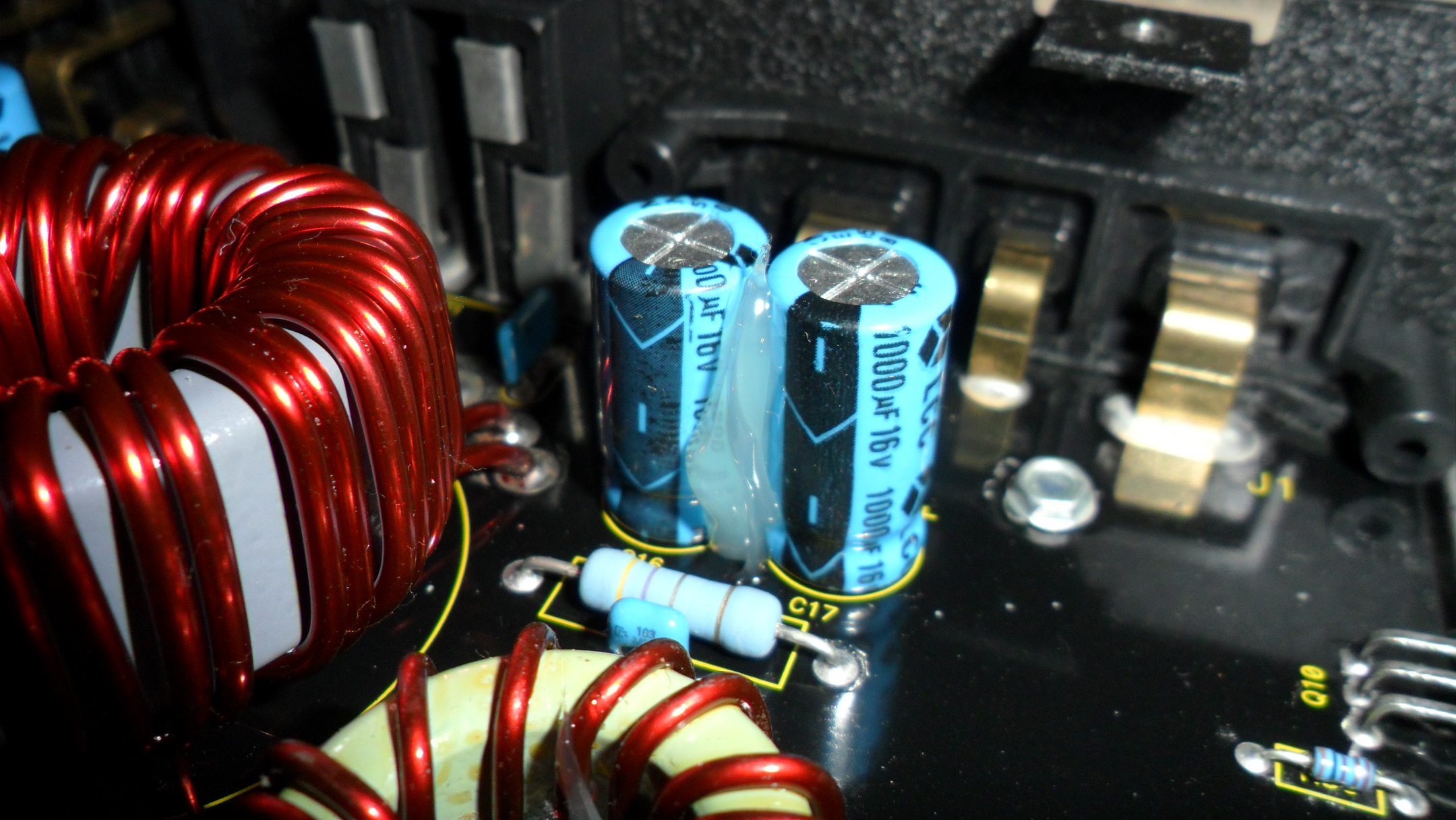

Are these the correct ones?
And many thanks for in advance
Attachments
Top
audi6
Posts: 16
Joined: Sat Jan 18, 2014 6:56 am

Re: xs amps recap

Post by audi6 »

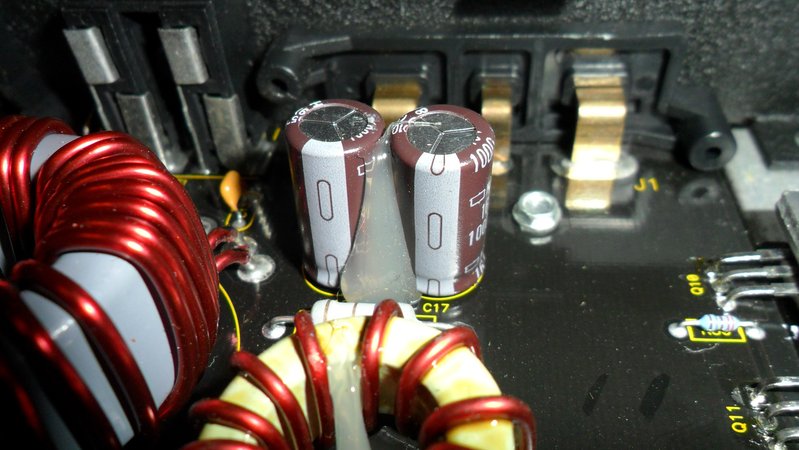

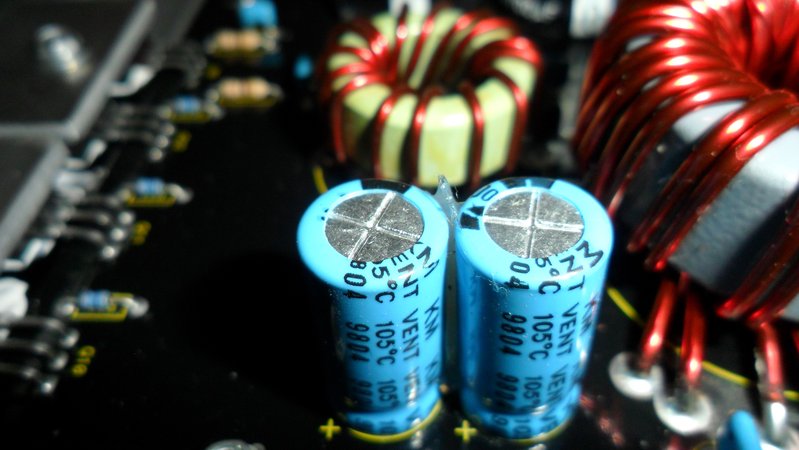

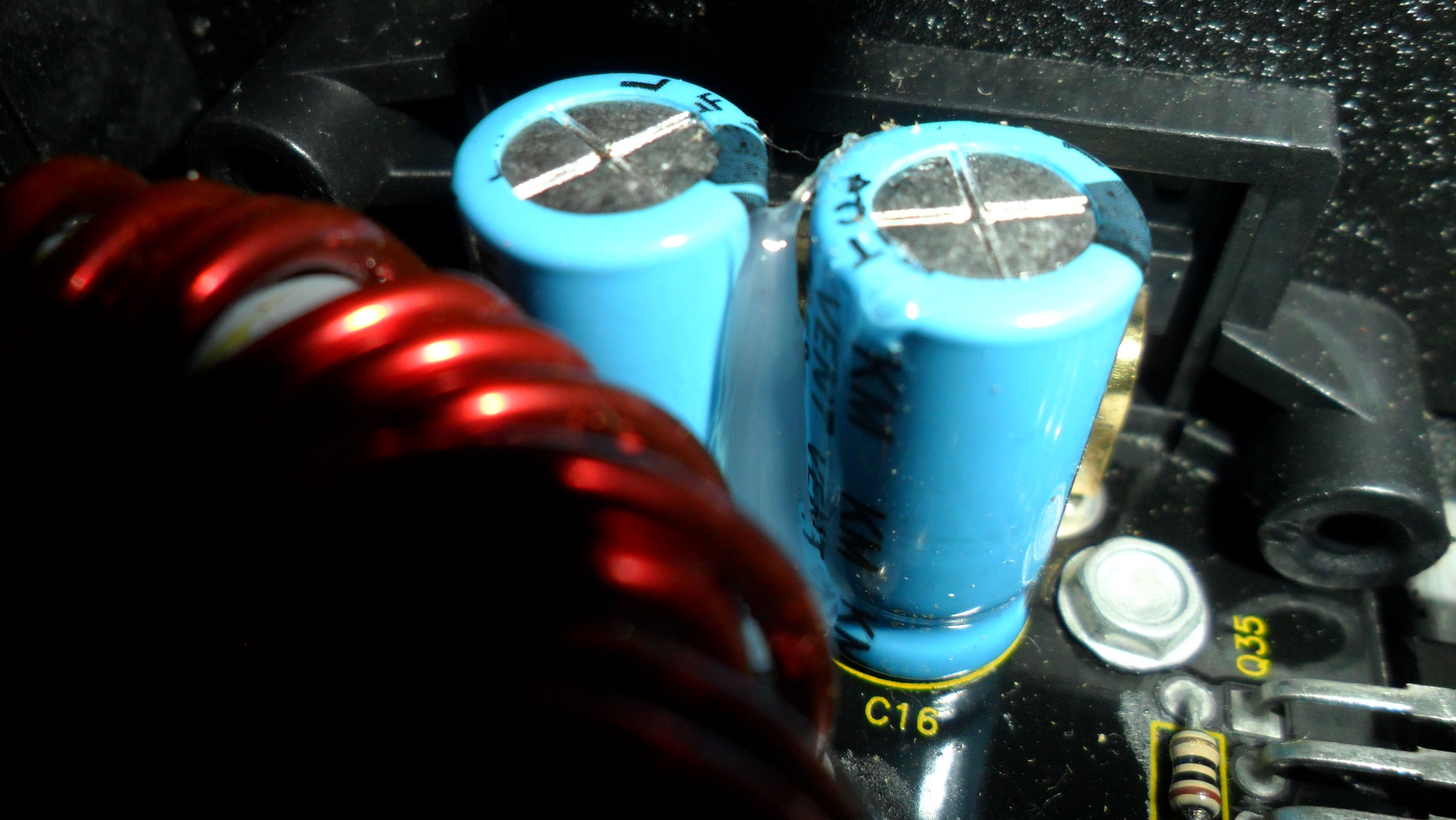

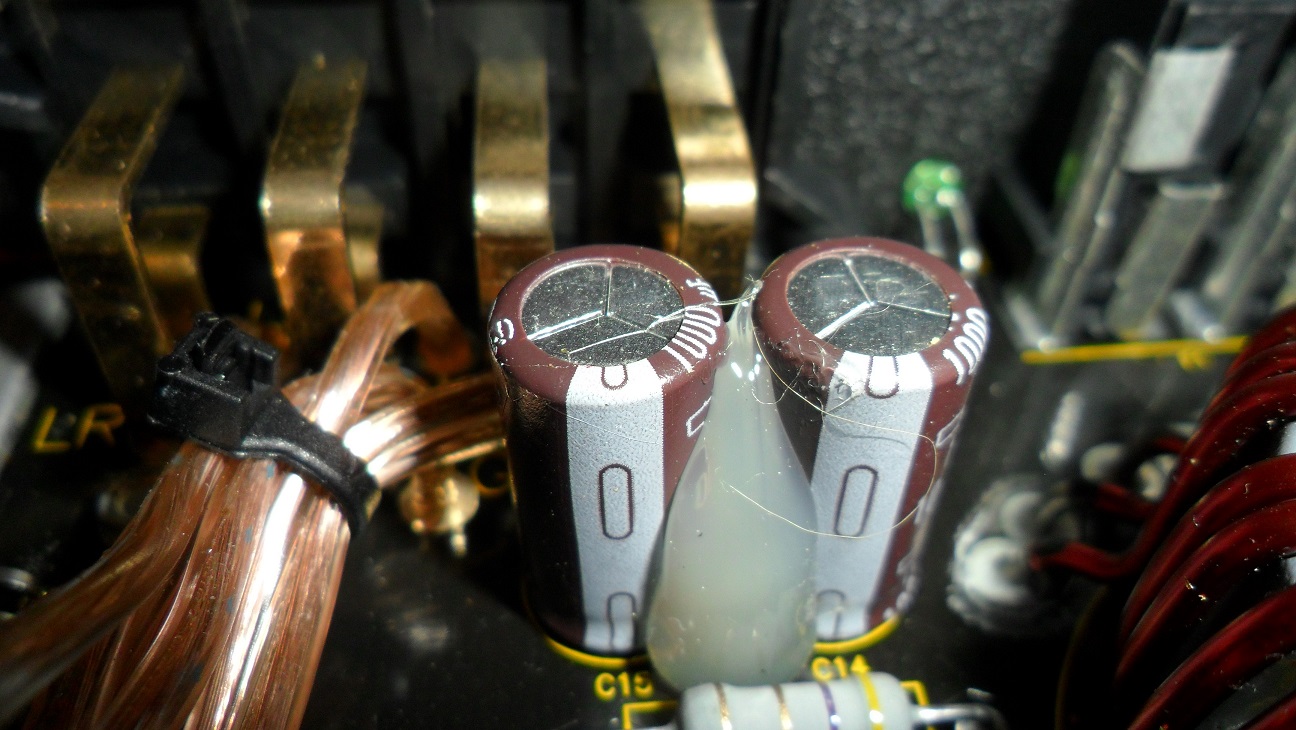

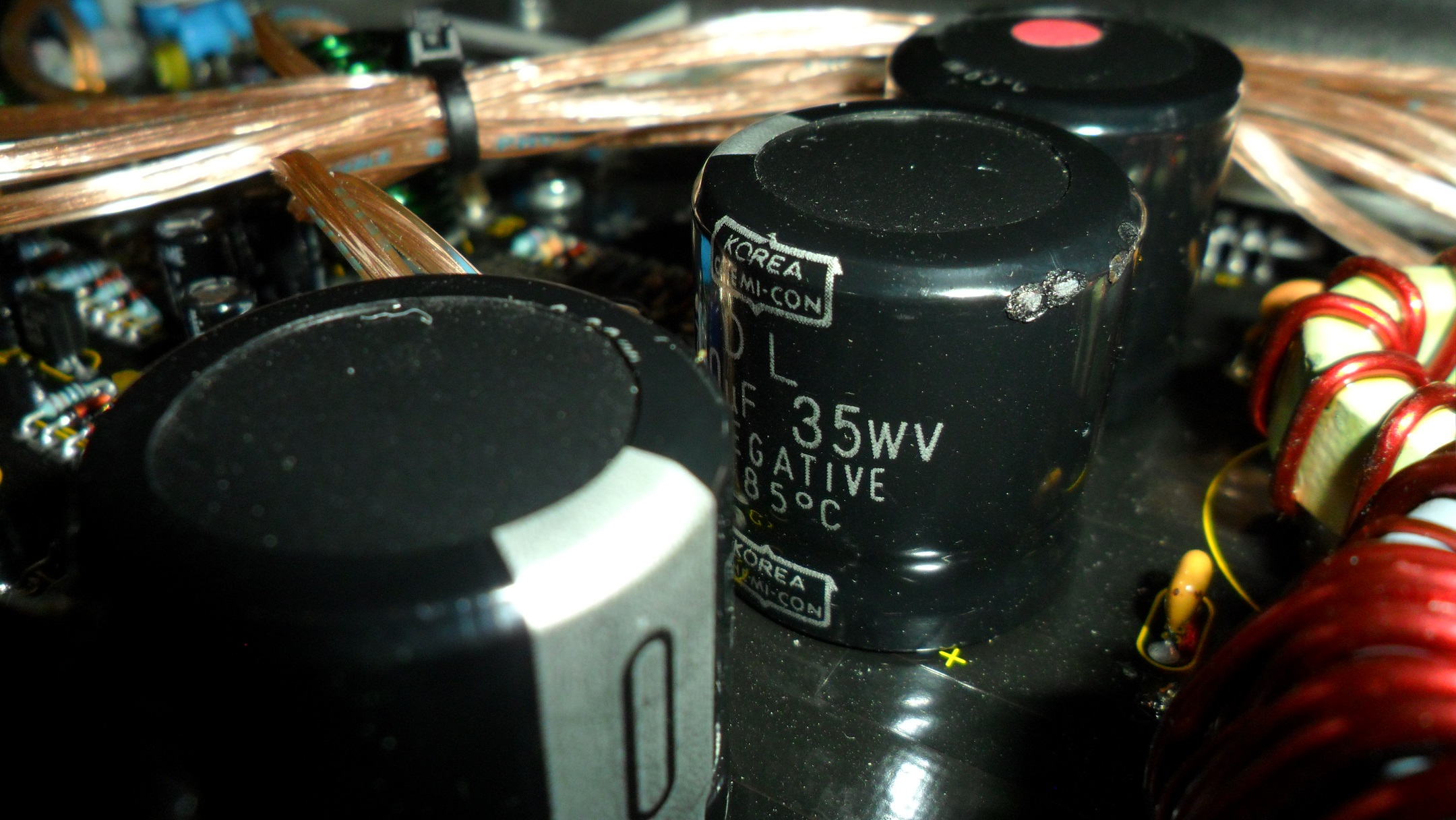

And these are of the other xs4600 and the xs2300
Attachments
Top
User avatar
Eric D
Short Bus Driver
Posts: 4259
Joined: Sat Dec 30, 2006 8:50 am

Re: xs amps recap

Post by Eric D »

I don't think you need to worry about any of those caps. They are not the ones well known for failing.
Got "schooled" by member shawn k on May 10th, 2011...
No longer really "in tune" with the audio industry, and probably have not been for some time.
Hands down the forum's most ignorant member...
Don't even know what Ohm's law is...
Top
User avatar
dwnrodeo
Posts: 1932
Joined: Thu Nov 01, 2007 10:35 am
Location: MI

Re: xs amps recap

Post by dwnrodeo »

XS amplifiers were after the batch of bad caps. I think I only recall one person finding a bad cap on an XS amp.
XS2300, XS2500, XS2300, X200.4, X100.2, Ti21000.4, Roadster 66

I'm gonna become a civil engineer. I'm gonna design septic tanks for playgrounds. Little kids can take shits! You idiot, what the hell do you do?
Top
audi6
Posts: 16
Joined: Sat Jan 18, 2014 6:56 am

Re: xs amps recap

Post by audi6 »

Eric D wrote:I don't think you need to worry about any of those caps. They are not the ones well known for failing.
Ah thats great new's for me :D :D

Many thanks for your help Eric
Top
audi6
Posts: 16
Joined: Sat Jan 18, 2014 6:56 am

Re: xs amps recap

Post by audi6 »

dwnrodeo wrote:XS amplifiers were after the batch of bad caps. I think I only recall one person finding a bad cap on an XS amp.

Thank you, I was hoping you would make a comment as i see you are a hoarder of these amps 8)
