Bass Cube Remote Pics for my peeps.

Post by **Bfowler** » Thu May 01, 2008 8:56 am

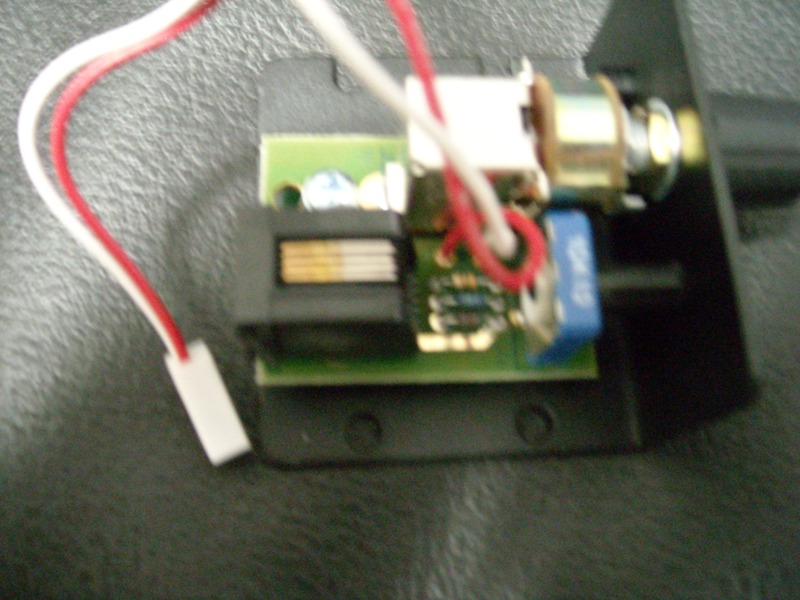

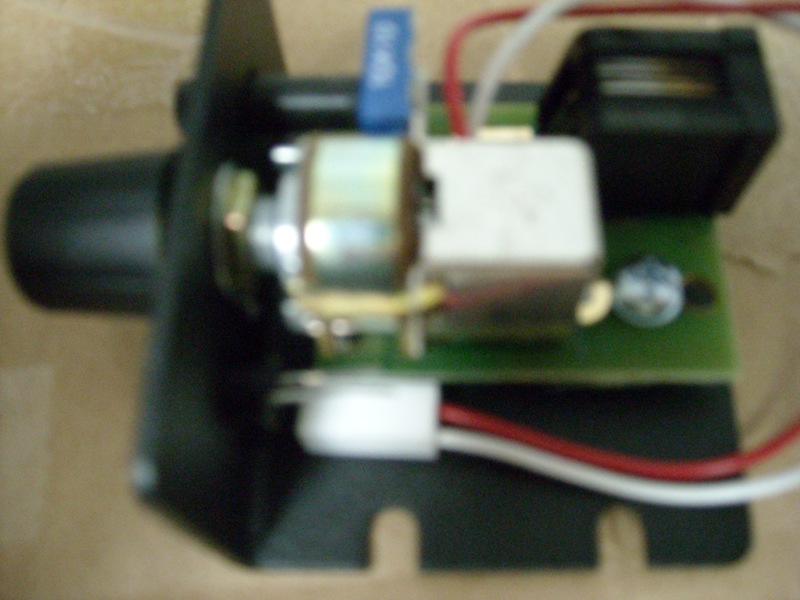

Can remember everyone that wanted one, but at long last, here you go.

i might be selling my cube, so if you need more/different/better pics, let me know soon!

Post by **Bfowler** » Thu May 01, 2008 8:58 am

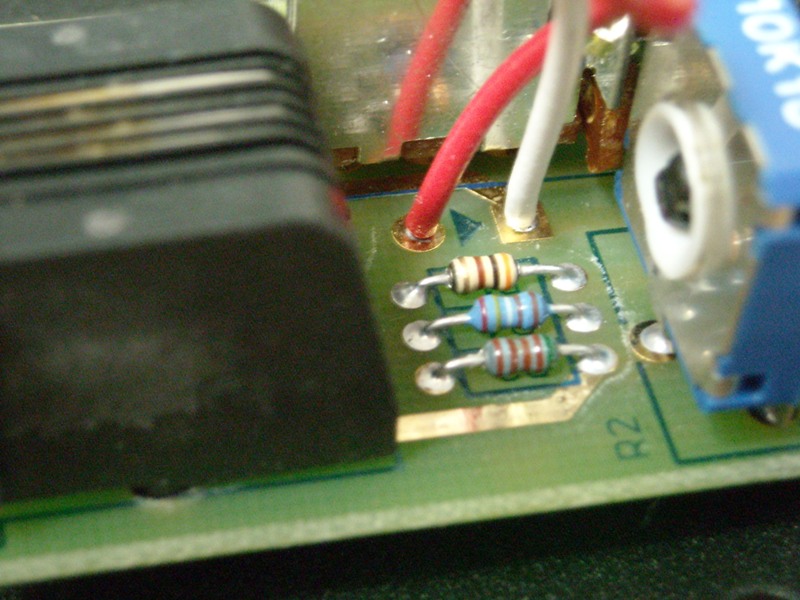

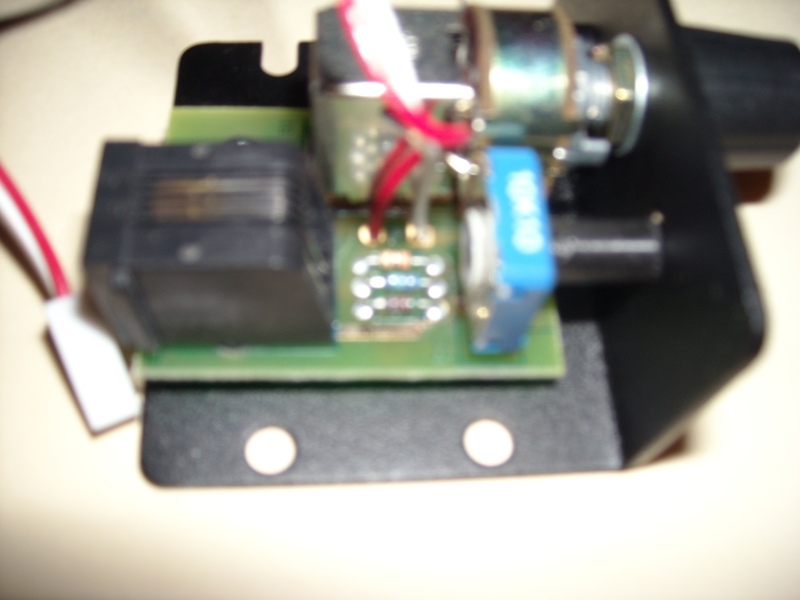

wow...i suck at picture taking...more

Post by **Bfowler** » Thu May 01, 2008 8:59 am

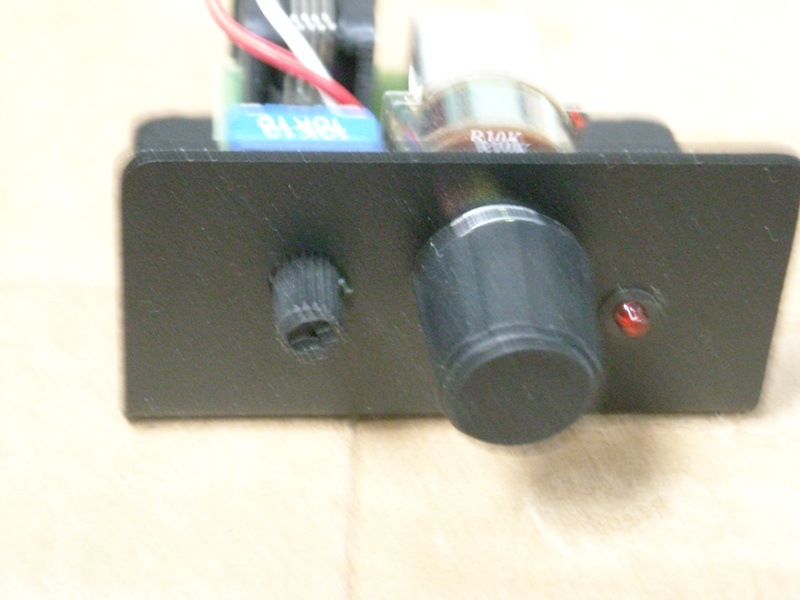

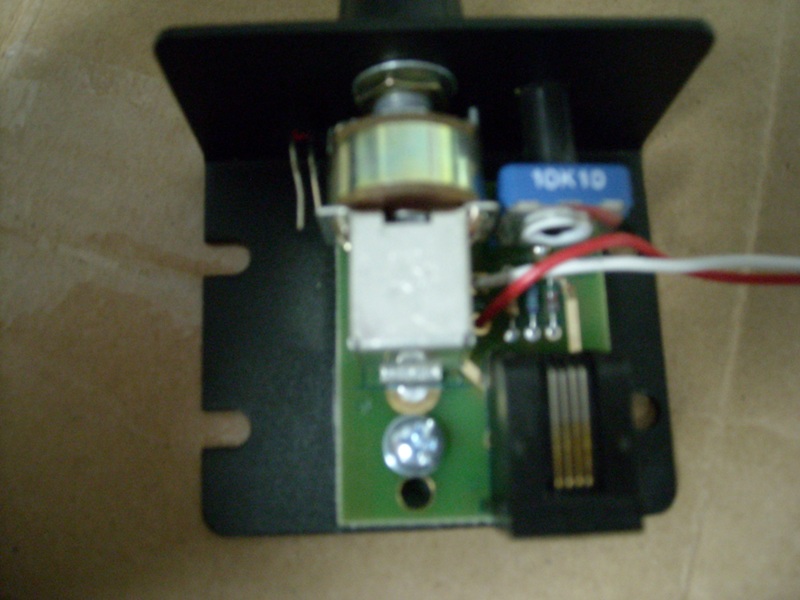

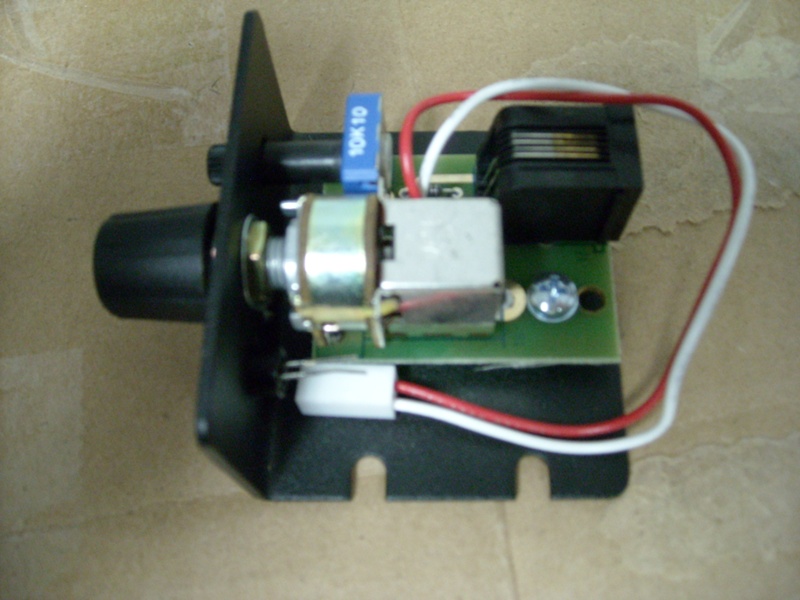

hey! i'm getting better...these ones wont give you a headache!

nutxo · Post by **nutxo** » Thu May 01, 2008 9:11 am

You seem like a great guy but either your camera bites or youre horrible at taking pics :-p

Post by **Bfowler** » Thu May 01, 2008 9:17 am

haha, they got better at the end...and its a 9mp nikon...so i'm gonna assume i should keep my day job...

nutxo · Post by **nutxo** » Thu May 01, 2008 9:34 am

Bfowler wrote:haha, they got better at the end...and its a 9mp nikon...so i'm gonna assume i should keep my day job...

My wife has a 79 dollar hp 3.2mp that takes better macros than my 500 dollar canon

Irongoats · Post by **Irongoats** » Thu May 01, 2008 11:50 am

I needed the control knob, I started a thread asking if anyone has an extra one or if they knew who had one. Let me know if your selling, thanks man.

Post by **Bfowler** » Thu May 01, 2008 11:54 am

KHpower just bought my cube and remote. i didn't have an extra knob...but it doesnt seem to hard to make one...

Irongoats · Post by **Irongoats** » Thu May 01, 2008 11:57 am

I have the actual knob but the case for it I don't have. Figure I can mount it to something but I'm a brand whore I want the PG housing for it. lol.

Post by **Jacampb2** » Thu May 01, 2008 12:13 pm

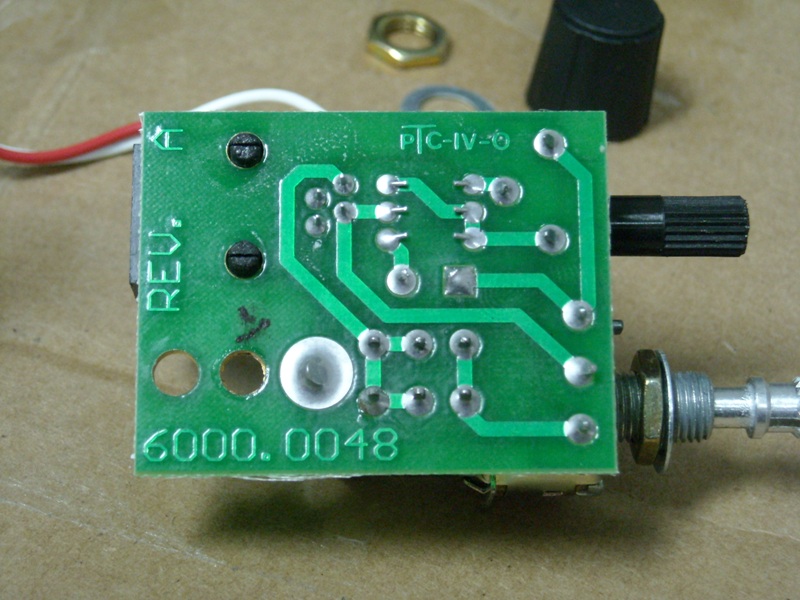

Thanks BF, I will re-draw the pcb in PCBexpress tonight. Maybe I can get some of these together for the guys in need.

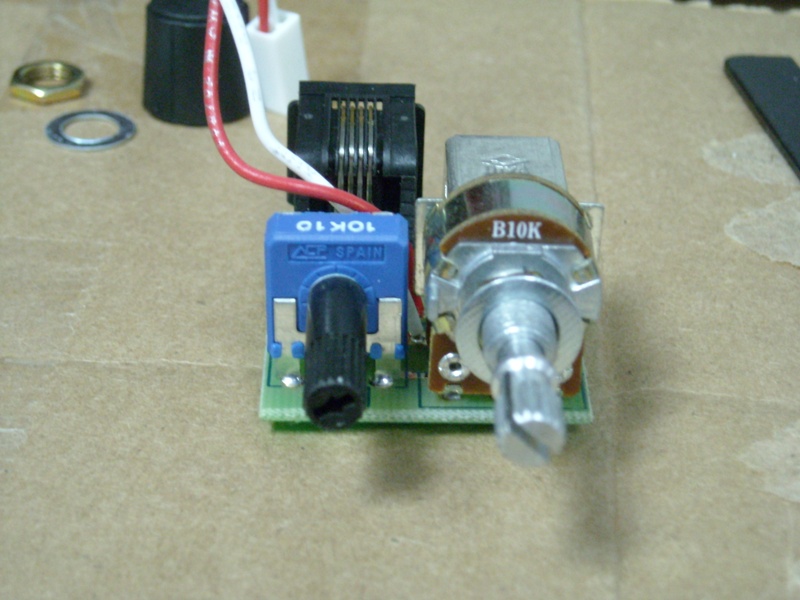

Does anyone know if the pots are audio taper or linear? I am guessing the volume is audio taper and the freq is linear, but if you know off hand, chime in.

Later,
Jason

Post by **Bfowler** » Thu May 01, 2008 12:39 pm

any way i can tell by looking at it?

an email to either/both of these guys might help on that question

scbezjak@sbcglobal.net - cecil

jetta4ek@gmail.com - errin

or even Phil at pg might beable to tell you

Post by **Jacampb2** » Thu May 01, 2008 1:21 pm

No, not unless they are labeled as such. You can check with a meter though if you get ambitious. Linear taper will measure from 0-10k ohms evenly over the whole range of the pot. Audio taper is a logarithmic curve that increases from 0-10k. A linear pot would be about half of it's rated value at half travel, a audio pot will not.

Later,
Jason

Post by **Bfowler** » Thu May 01, 2008 1:26 pm

my meter is at my parents house and i'm shipping this remote out today

Post by **Rold Gold** » Thu May 01, 2008 1:35 pm

I have a remote for testing purposes. Not for sale though....

Post by **Wakeup** » Thu May 01, 2008 2:37 pm

FuzzyHoNutz wrote:I have a remote for testing purposes. Not for sale though....

Ditto.

denim · Post by **denim** » Thu May 01, 2008 4:50 pm

Looks good enough for gov't work.

Post by **mr tibbs** » Thu May 01, 2008 5:02 pm

Wakeup wrote:
FuzzyHoNutz wrote:I have a remote for testing purposes. Not for sale though....
Ditto.

Teases'

Post by **mr tibbs** » Thu May 01, 2008 5:04 pm

denim wrote:Looks good enough for gov't work.

You say that like you know a government worker!

Post by **Jacampb2** » Thu May 01, 2008 5:14 pm

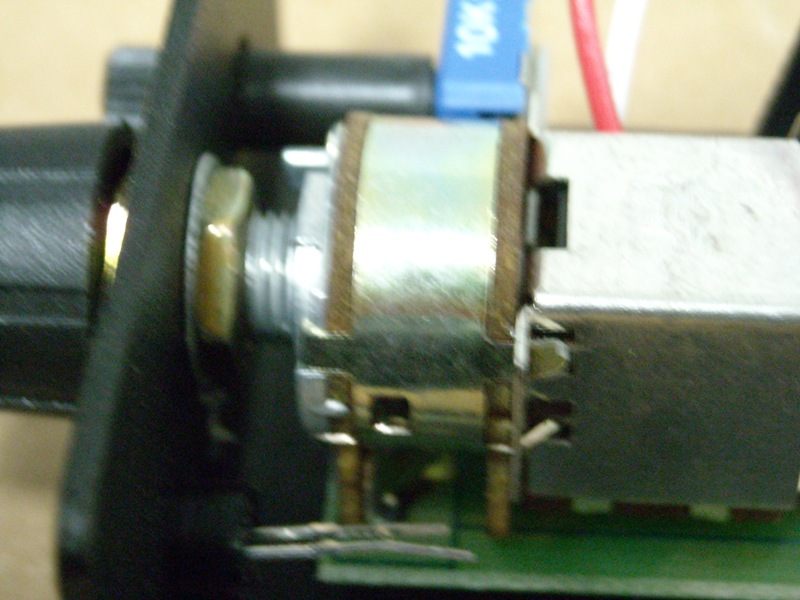

BF, the volume pot, if you haven't shipped it yet, can you tell me what the name or numbers are that are stamped on the top of the switch section? You can just see they are there in picture DSCN0187.jpg, but can't make them out, all of the other pictures of the top have too much reflection to read. I may have tracked the freq pot down already, gotta look through the manufacturers catalog.

Oh, and BTW, I went looking for my old cube remote, and it looks like I must have put the whole thing through the recycling program in my shop

All I have left is the mounting piece...

Later,
Jason

denim · Post by **denim** » Thu May 01, 2008 5:21 pm

mr tibbs wrote:
denim wrote:Looks good enough for gov't work.
You say that like you know a government worker!

I was a civilian at the Army Research Lab for 2 years.

Post by **Jacampb2** » Fri May 02, 2008 12:29 am

Many thanks to Bfowler, I got it all figured out. See my other post about the remotes for PCB layout, component list, and parts pricing w/ part numbers.

Later,
Jason

Post by **fuzzysnuggleduck** » Fri May 02, 2008 2:32 pm

nutxo wrote:
Bfowler wrote:haha, they got better at the end...and its a 9mp nikon...so i'm gonna assume i should keep my day job...
My wife has a 79 dollar hp 3.2mp that takes better macros than my 500 dollar canon

Is that because of the body or the lens?

scorpio86 · Post by **scorpio86** » Wed Jul 16, 2008 12:14 pm

so can one not use the lpl cable/knob on a basscube if the one provided with it.. is not there.. ??

Post by **Bfowler** » Wed Jul 16, 2008 12:33 pm

you sure can, the cable is just the 4 conductor phone cord, and the acutal knob itself is the same on the LPL as the bass cube

scorpio86 · Post by **scorpio86** » Wed Jul 16, 2008 12:34 pm

so everyone that is in need of an actual basscube knob could jus use one of those cept not have the nice lil black metal to go with it??
