Wiring (2) V10d's with V752

Irongoats · Post by **Irongoats** » Wed Mar 11, 2009 6:47 pm

I got confused with the wiring for these subs so I thought I'd just ask experts here.

I'm using the V752 and currently wired them for single because I didn't pay attention. I looked at the diagram for the subs and it shows 1 out negative (amp) to negatives (2) of one sub then run the positives (2) of the sub to the opposite negatives of other sub. The same with the 1 out positive of amp to (2) positives of one sub to complete the wiring.

Do you wire two negatives together at the amp into one spot and the same for the positives?

I tried this and it didn't seem to make a difference. Any help would be appreciated thanks.

waynehead · Post by **waynehead** » Wed Mar 11, 2009 7:39 pm

So the amp is bridged to the 2 subs?

waynehead · Post by **waynehead** » Wed Mar 11, 2009 7:49 pm

If you are going for a 8 ohm stereo load from what you are saying, Run a wire from the pos of one voice coil of sub 1` and the neg from the other vc on sub 1 and run them to one channel on your amp. Then connect the pos and neg of the two vc of sub 1. Repeat these steps on sub 2 to the other channel of the amp. If you are bridging both subs on the rear channles of them amp for a 4 ohm mono load wire the subs the same way as above but run both set of wires off of the same terminals of the amp. If neither of these setups is what you are trying to do let me know.

Irongoats · Post by **Irongoats** » Wed Mar 11, 2009 9:16 pm

I'm trying to bridge them to get better bass response. I took the two negatives and put them in the R- and the two positives in the L+.

Looking at this photo (second page Dual) you can see they show one of each coming from the amp and that part has me confused. They took both negatives and put them in one negative post and the same for the positive. Just trying to make sure that's the way to go.

waynehead · Post by **waynehead** » Wed Mar 11, 2009 9:24 pm

Sounds like you got it. My buddy is trying out the ryval line in his truck. He is runnin comps in the front off a v752, coax in the rear doors off deck power, and later on a sub under the seat off another v752. Up to this point all we have in are the coax's on deck power but I have to say I was super impressed. I really cant wait to here the comps on amp power. Are you getting decent bass response. Is it enough to blend well with your highs? What kinda stereo do you have going on if you dont mind me asking.

Irongoats · Post by **Irongoats** » Wed Mar 11, 2009 9:29 pm

I thought I'd get better bass response then the standard way of hooking them up but it sounded the same to me. I'm running a Panasonic DVD DD in my Crew Cab with comps in the front doors, RSD's rear doors all powered off of V754/V752 with a Bass Cube. It sounds great but I wanted a little more bass and I thought the wiring was all wrong and I wasn't taking advantage of the Dual Voice coil on them the way I had them wired.

waynehead · Post by **waynehead** » Wed Mar 11, 2009 9:32 pm

oic You are looking at the bottom diagram. You could do it that way. The way that i explained earlier will give the same results as far as resistence. Are the subs in one box seperated from each other with spereate terminals?

Irongoats · Post by **Irongoats** » Wed Mar 11, 2009 9:34 pm

Yes, the subs are separated in the box by a wall if you will built into it from the manufacturer.

waynehead · Post by **waynehead** » Wed Mar 11, 2009 9:38 pm

Being that you have two dvc subs your only options are 1, 4, or 8 ohm configuration. Im not sure if those amps can run 2ohm mono, Im sure they arent made for 1 ohm mono. You could probably get alittle bit more volume, possibly not even notciable, from using one sub wired to 2 ohms but you will loss alittle sq. It will be drawing more current through your amp and requiring one sub to make the output so I wouldnt advice it. I dont know a lot about the ryval woofers but you could possibly port them. That would be a noticable difference

Irongoats · Post by **Irongoats** » Wed Mar 11, 2009 9:40 pm

I think I will port the box since it doesn't have any airway action going on.

waynehead · Post by **waynehead** » Wed Mar 11, 2009 9:41 pm

Irongoats wrote:Yes, the subs are separated in the box by a wall if you will built into it from the manufacturer.

Then you can either wire the subs the way I told you earlier inside the box then run pos and neg from each terminal on the box to the amp or wire them like the pg diagram and take the pos of one terminal and the neg of the other and take it to wht amp then connect the two terminals from the pos and neg that arent going to the amp. I hope that makes sense.

Irongoats · Post by **Irongoats** » Wed Mar 11, 2009 9:46 pm

ummm what? lol

I think I got it I'll check it out this weekend we'll see thanks man.

waynehead · Post by **waynehead** » Wed Mar 11, 2009 9:50 pm

I know i suck at explaining, Im mspaintin some shit now.

waynehead · Post by **waynehead** » Wed Mar 11, 2009 10:01 pm

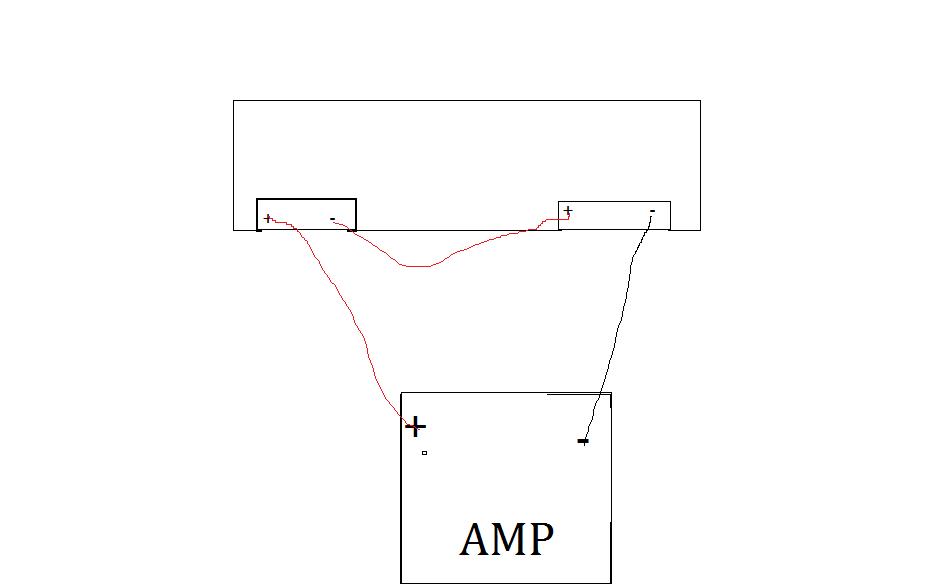

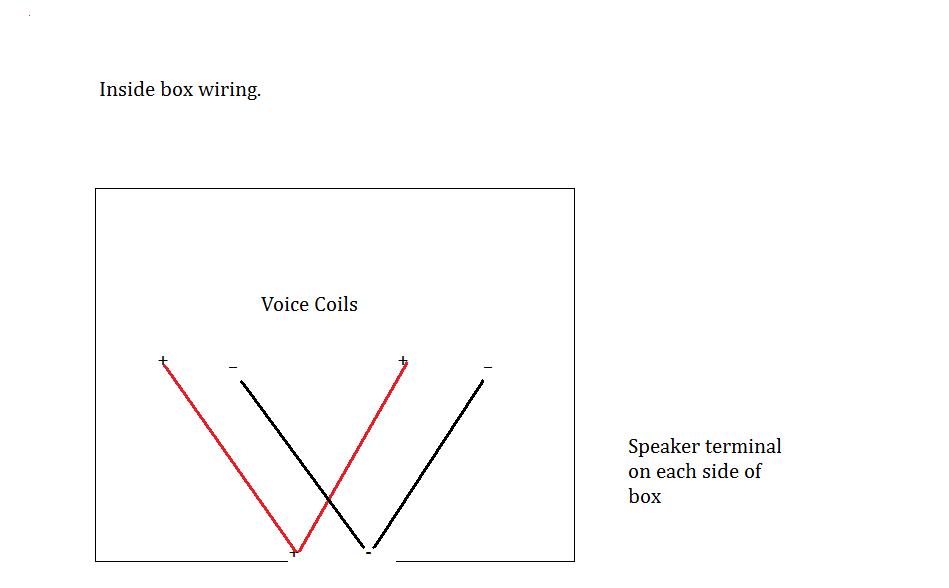

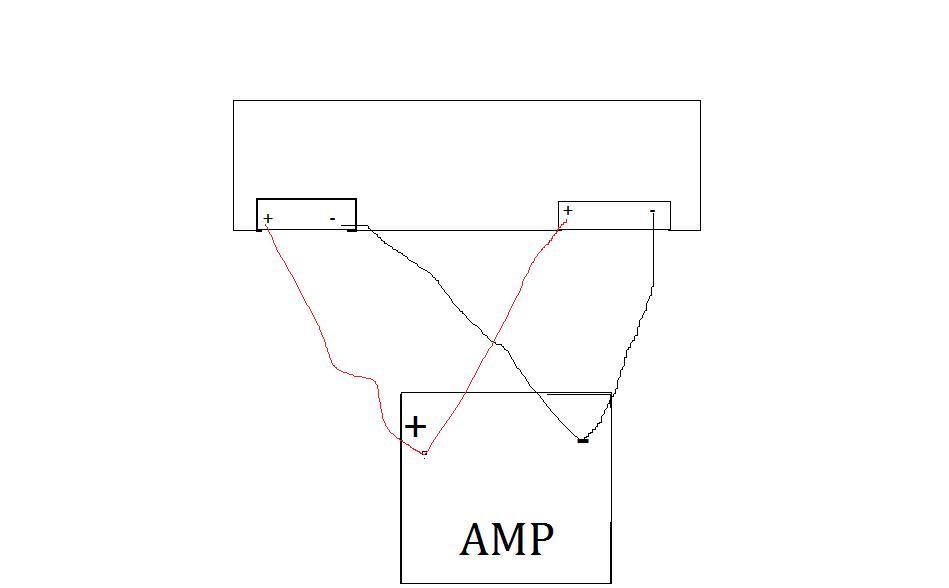

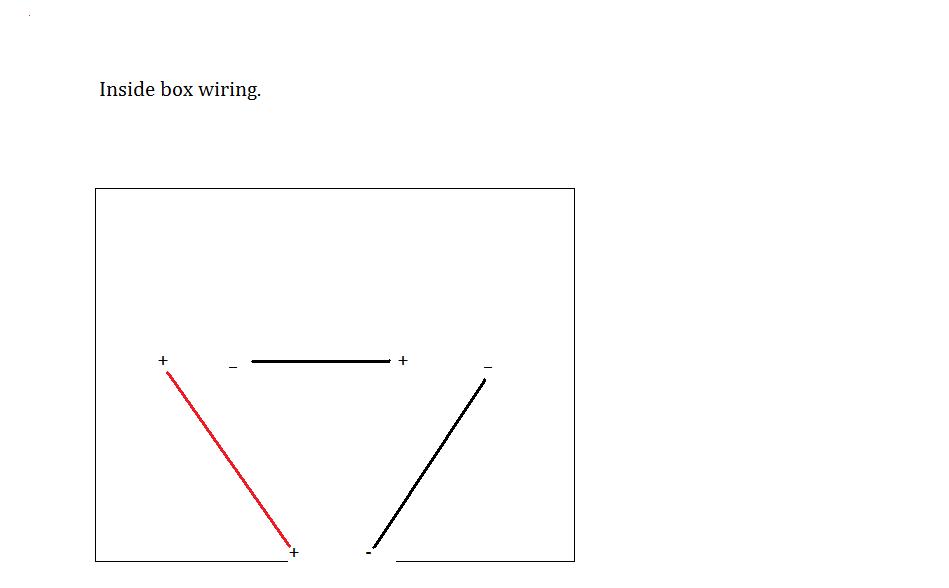

the first two pics are the way described the second two are pg's. Both will end up in a 4 ohm load. sorry they suck im on a laptop.

waynehead · Post by **waynehead** » Wed Mar 11, 2009 10:06 pm

lol i should have just searched like I thought instead of taking a ugly shit on the forum lol. sorry stipud. anyway check this out. http://www.rodinaudio.com/pgMobile/pdf/ ... lVoice.pdf

waynehead · Post by **waynehead** » Wed Mar 11, 2009 10:16 pm

Looks like they want 2.4 cuft a piece ported

And a port 9 in long with a 3in dia. Hope you can swing the extra space because it would give you some more output. Best of luck man

Post by **stipud** » Thu Mar 12, 2009 6:28 am

With that amp, you can either run the subs at 2 ohm stereo, or 4 ohms bridged. Personally I would prefer the stereo route, as you don't get any bridging distortion that way. This would work well since your box is divided... if it wasn't, you would have to go bridged.

Parallel wiring is + to VC1+, - to VC1-, and VC1+ to VC2+, VC1- to VC2-
Series wiring is + to VC1+, - to VC2-, and VC1- to VC2+

Wiring the subs in series would get you 8 ohms, then connecting them both in parallel gives you a 4 ohm single load. In this case you want to do option 1, then connect it to the bridged channels of the amplifier:
http://www.rodinaudio.com/pgMobile/pdf/ ... lVoice.pdf

Wiring the subs in parallel would give you 2 ohms, so you can connect each one to a separate amp channel (one left, one right). This gives the same power as the bridged load, since a 4 ohm bridged load is really 2 ohm stereo (8 ohm bridged = 4 ohm stereo, etc). So you will want to do the parallel wiring, and run a wire from each sub to a separate channel on your amp:
http://www.rodinaudio.com/pgMobile/pdf/ ... lVoice.pdf

Also Wayne, the way you "usually do it" isn't the best idea...

You can run voicecoils in series, but you should always avoid running subs in series. What happens is the second sub will get varying power from the first, due to its impedance, so they won't play evenly. Running subs in parallel ensures the power is split evenly between the two subs. Voicecoils on the other hand are designed to be run in series, since it simply makes your dual VC a single.

waynehead · Post by **waynehead** » Thu Mar 12, 2009 7:01 am

Yeah that isnt the way I usually do it lol. I, looking at the diagram he had of wiring parllel and thought thats what they were doing, and tryed to explain. Then in trying to get all those drawRings in the right order I mislabled them. Anyway, that was something I didnt know because I have ran to SVC woofers to run an 8ohm load before. I had a party and my wimpy panansonic with the 7 inch "bass" driver didnt get the job done so I hooked up a couple of generic subs to it. Oops. Anyway, truth be told I usually dont mess with multiple drivers, I am a one sub kinda guy

Thank you stipud

Irongoats · Post by **Irongoats** » Thu Mar 12, 2009 9:07 am

All this info still doesn't properly explain how one would utilize the outputs of the amp in layman's term.

As you know the amp has a L+L-, R+ R- and they show on the diagrams one wire feeding to one positive and one negative. The rookie in me says to take the speaker wire which has two ends combining them to one spot on the amp but there's L+ and R+. I'm probably confusing myself, haha. But you can see how one would look at it and say where'd all the wires go if there's two ends on the amp.

Post by **stipud** » Thu Mar 12, 2009 10:09 am

Irongoats wrote:All this info still doesn't properly explain how one would utilize the outputs of the amp in layman's term.

I don't know how much simpler I can make it.

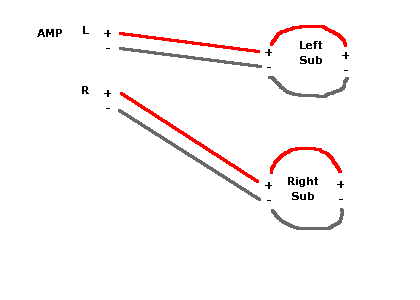

On both subs, connect + to +, and - to - with two short wires.

Connect the left sub + to the amp left +
Connect the left sub - to the amp left -
Now do the same on the right...

Post by **stipud** » Thu Mar 12, 2009 10:19 am

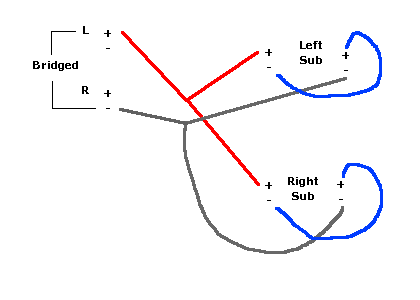

And the other alternative is series/parallel wiring.

Irongoats · Post by **Irongoats** » Thu Mar 12, 2009 10:52 am

stipud wrote

I don't know how much simpler I can make it.

Easy killer I said I was probably confusing myself. lol.
